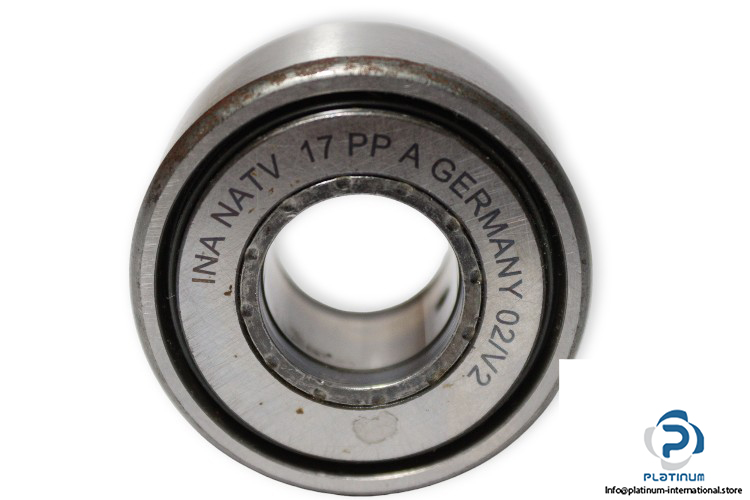

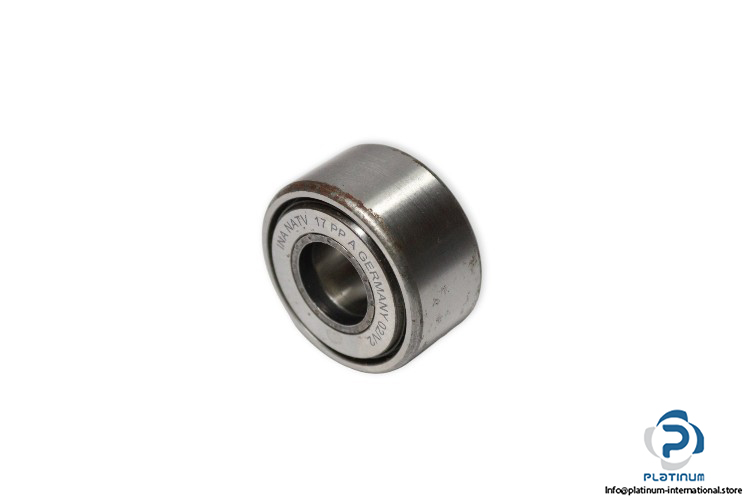

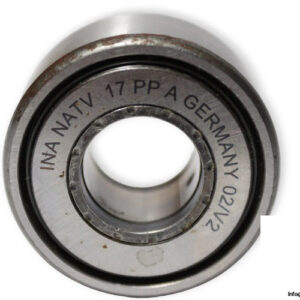

INA Natv 17 PP A Yoke Type Track Roller
Manufacturer: INA
Type: Yoke Type Track Rollers
Model: NATV17 PP A

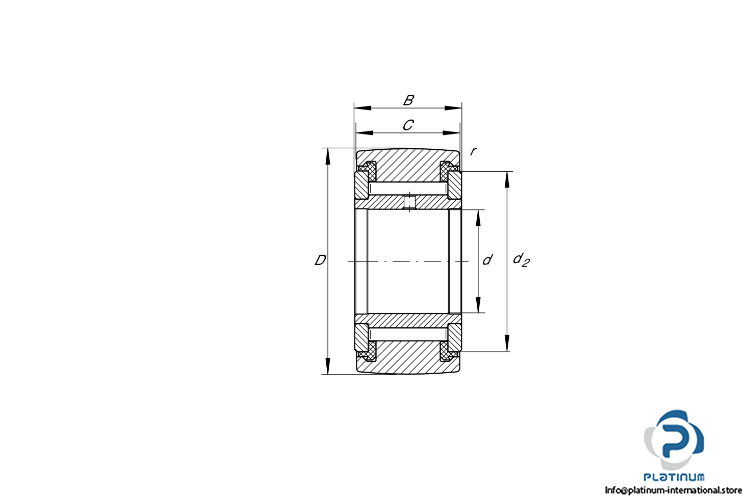

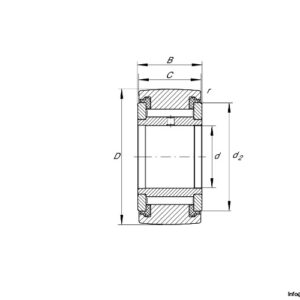

Dimensions
Bore Diameter d: 17 mm
Outer Diameter D: 40 mm
Width of the bearing B: 21 mm
Width, outer ring C: 20 mm
Basic Load Ratings:
Dynamic Cr: 14700 N
Static C0r: 27000 N
Fatigue load limit, radial: 3550 N
Speed on permanent grease lubrication: 1400 rpm
Permissible static load, radial: 27000 N
Permissible dynamic load outer ring, radial: 24900 N
Sealing: PP, Three-stage sealing by plastic axial plain washer on both sides
