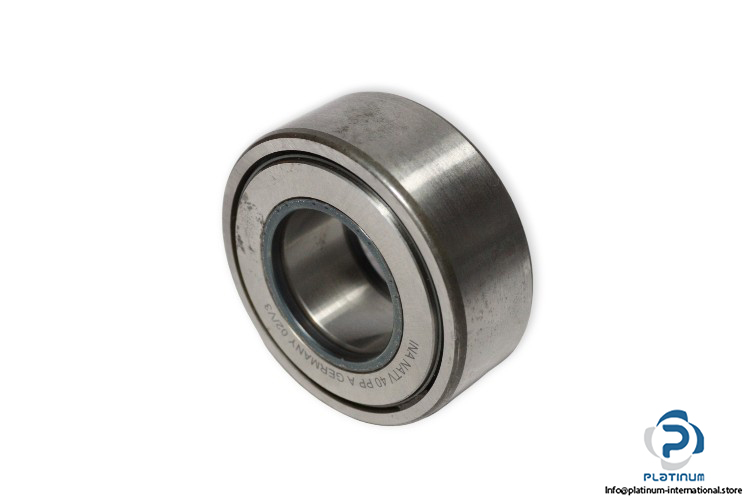

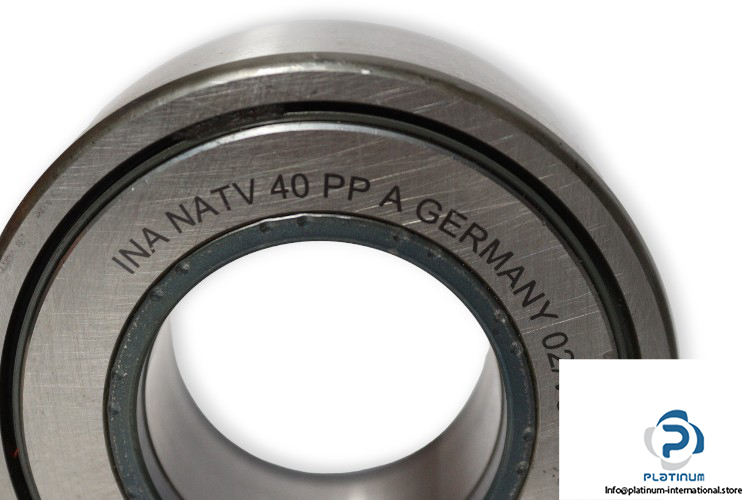

INA Natv 40 PP A Yoke Type Track Roller

Manufacturer: INA
Type: Yoke Type Track Rollers
Model: NATV40 PP A

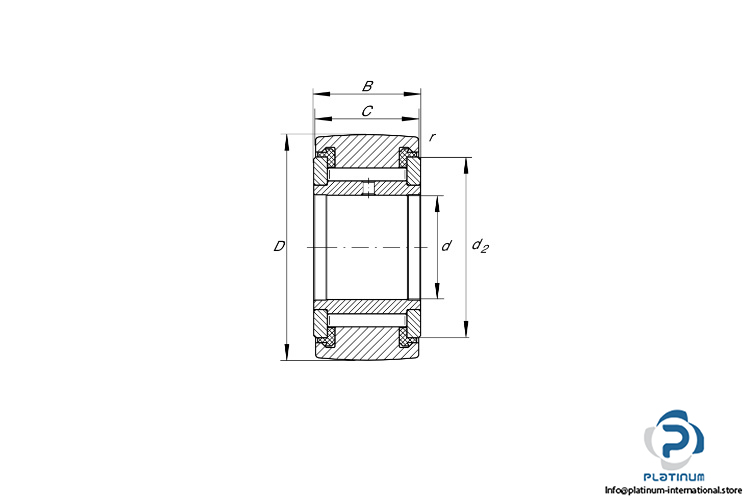

Dimensions
Bore Diameter d: 40 mm
Outer Diameter D: 80 mm
Width of the bearing B: 32 mm
Basic Load Ratings:
Dynamic C_r: 39500 N
Static C_0r: 89000 N
Fatigue load limit, radial: 13200 N
Speed on permanent grease lubrication: 650 rpm
Permissible static load, radial: 89000 N
Permissible dynamic load outer ring, radial: 76000 N
Sealing: PP, Three-stage sealing by plastic axial plain washer on both sides
