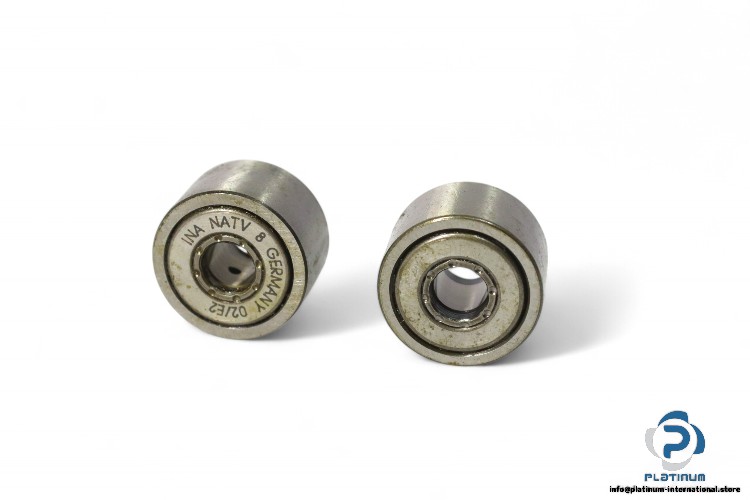

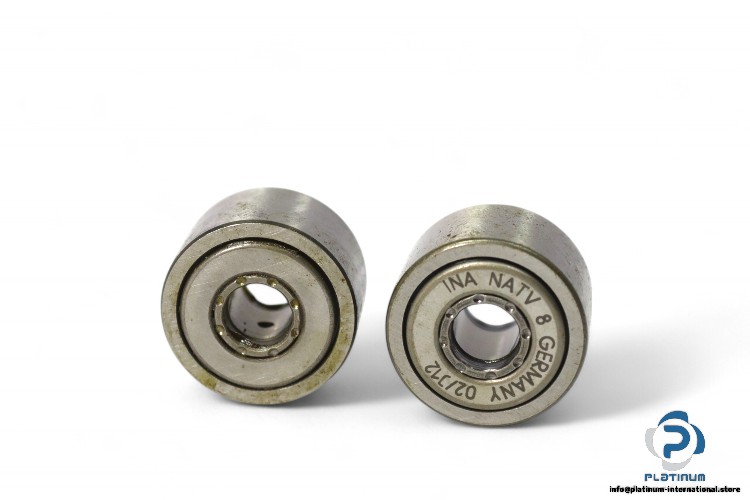

INA Natv 8 Yoke Type Track Roller

Manufacturer: INA
Type: YOKE TYPE TRACK ROLLER
Model: NATV-8

Bore Diameter: 8 mm
Outer diameter: 24mm
Width, inner ring: 15 mm
Width, outer ring: 14 mm
Basic load ratings, radial:
Dynamic C_r: 7,800 N
Static C_0r: 11,700 N
Fatigue load limit, radial: 1,620 N
Speed on permanent grease lubrication: 2,500 1/min
Permissible static load, radial: 11,700 N
Permissible dynamic load outer ring, radial: 10,200 N
Sealing: Gap seal on both sides
