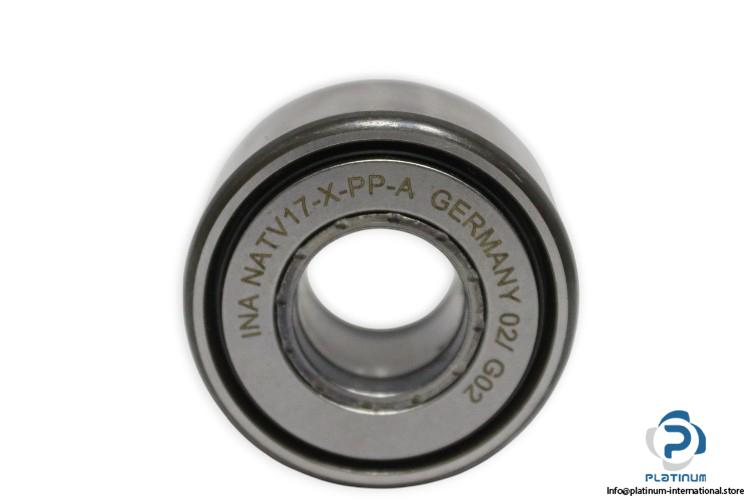

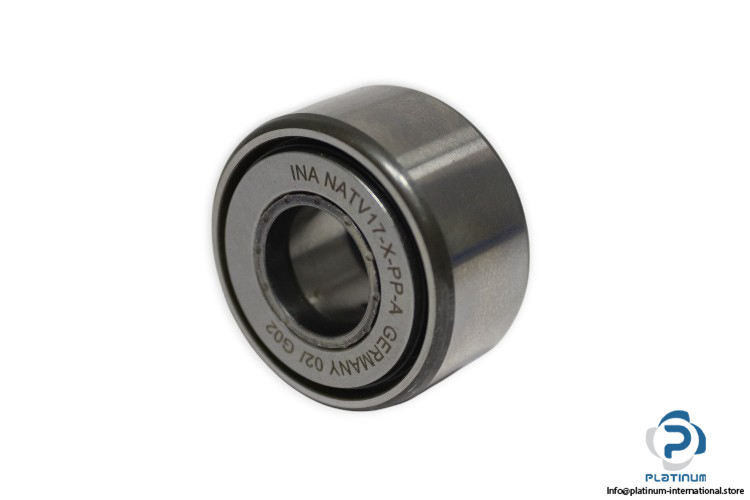

INA NATV17-X-PP-A Yoke Type Track Roller

Manufacturer: INA
Type: YOKE TYPE TRACK ROLLER
Model: NATV17 X PP A

Bore Diameter: 17 mm
Outer Diameter: 40 mm
Width: 21 mm
Basic load ratings:
Dynamic C_r: 14700 N
Static C_0r: 27000 N
Fatigue load limit, radial: 3550 N
Speed on permanent grease lubrication: 1400 rpm
Permissible static load, radial: 27000 N
Permissible dynamic load outer ring, radial: 24,900 N
Sealing: PP, Three-stage sealing by plastic axial plain washer on both sides
Outer Ring profile: X, Cylindrical outside surface
