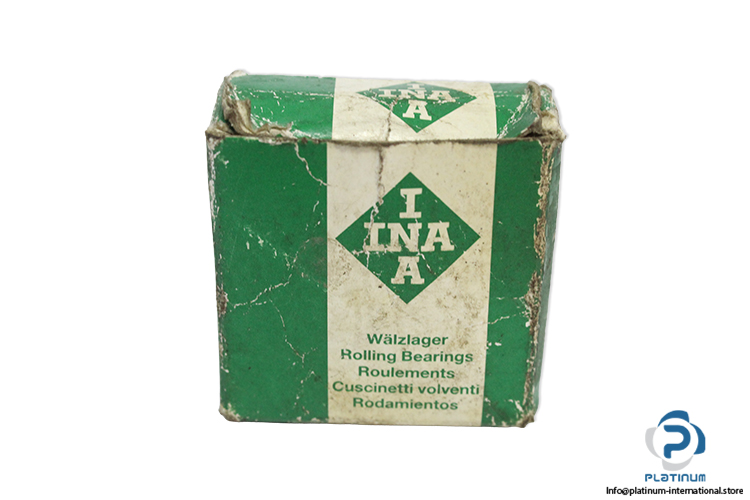

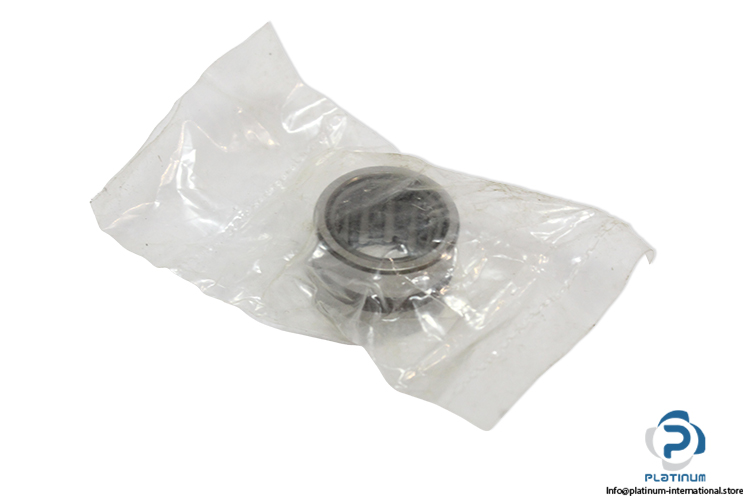

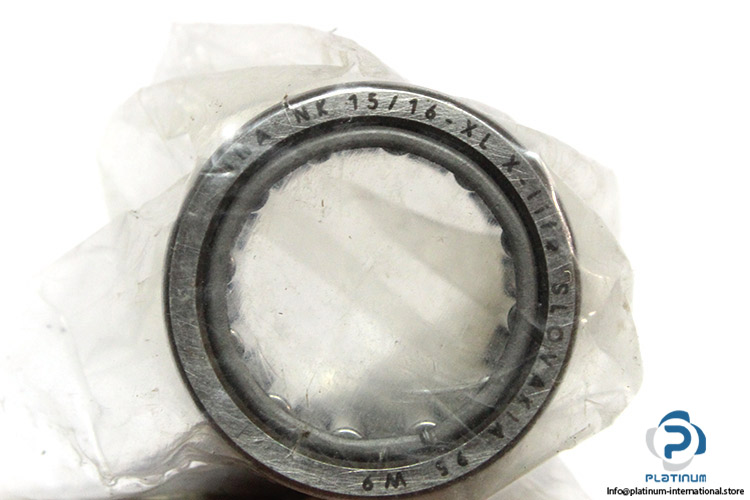

INA NK 15/16-XL Needle Roller Bearing
New
In stock1 unitReady to ship
Needle Roller Bearing
INA NK 15/16-XL needle roller bearing with high radial load capacity, compact dimensions, and optimized performance for gearboxes and transmission systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA NK 15/16-XL Needle Roller Bearing
The INA NK 15/16-XL needle roller bearing, manufactured by Schaeffler, is designed for high radial load capacity in compact installation spaces. Its precision construction ensures reliable performance and extended service life in demanding industrial applications.
Manufacturer: INA / Schaeffler
Type: Needle Roller Bearing
Model: NK 15/16-XL
Recommended for gearboxes, transmission systems, and heavy-duty radial load applications requiring compact bearing solutions.
Please contact us via Ask for assistance with any inquiries.
| Under Roller Diameter | 15 mm |
| Outside Diameter | 23 mm |
| Width (Outer Ring) | 16 mm |
| Basic Dynamic Load Rating, Radial | 12,100 N |
| Basic Static Load Rating, Radial | 12,700 N |
| Fatigue Load Limit, Radial | 2,360 N |
| Limiting Speed | 23,900 1/min |
| Reference Speed | 17,300 1/min |
| Minimum Chamfer Dimension | 0.3 mm |
