INA NK 5/10 Needle Roller Bearing
New
In stock1 unitReady to ship
Needle Roller Bearing
Compact INA needle roller bearing without inner ring, designed for high load capacity and high-speed performance in limited installation space.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

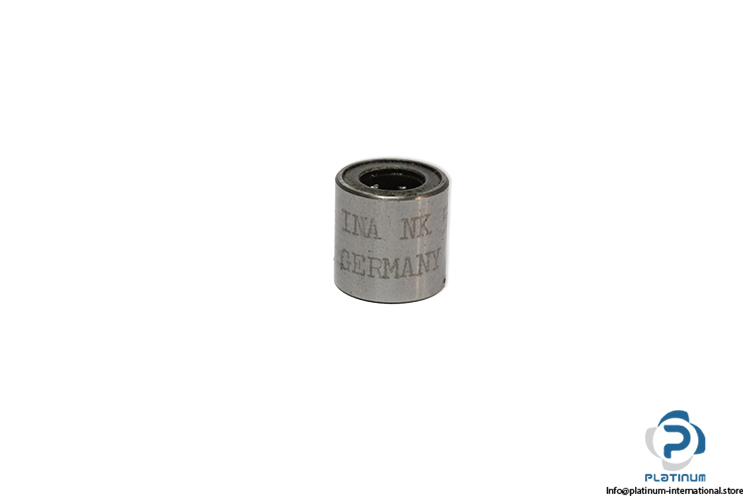

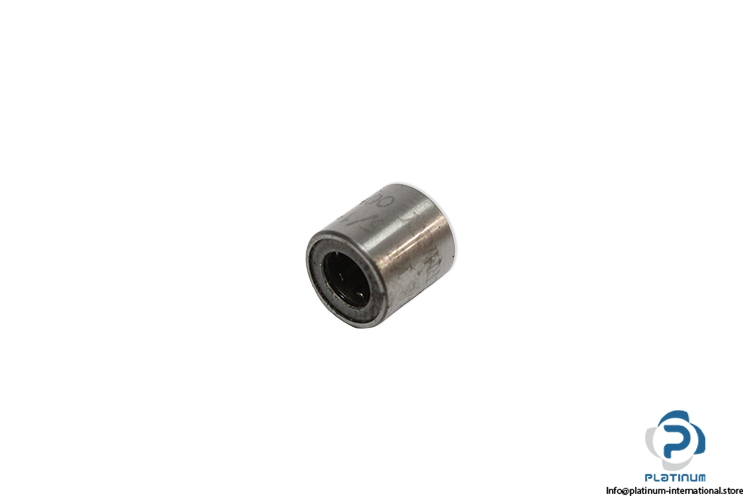

INA NK5/10 Needle Roller Bearing
The INA NK5/10 Needle Roller Bearing is a compact and high-performance bearing designed for applications requiring high load capacity within limited radial space. This bearing operates without an inner ring, making it ideal for precision shafts and space-saving mechanical designs.
Manufacturer: INA
Type: Needle Roller Bearing (Without Inner Ring)
Model: NK5/10
| Under Roller Diameter (d) | 5 mm |
| Outer Diameter (D) | 10 mm |
| Width (C) | 10 mm |
| Basic Dynamic Load Rating, Radial | 2,650 N |
| Basic Static Load Rating, Radial | 1,920 N |
| Fatigue Load Limit, Radial | 300 N |
| Limiting Speed | 39,000 1/min |
| Reference Speed | 55,000 1/min |
| Minimum Chamfer Dimension | 0.15 mm |
| Operating Temperature | -30 to 120°C |
