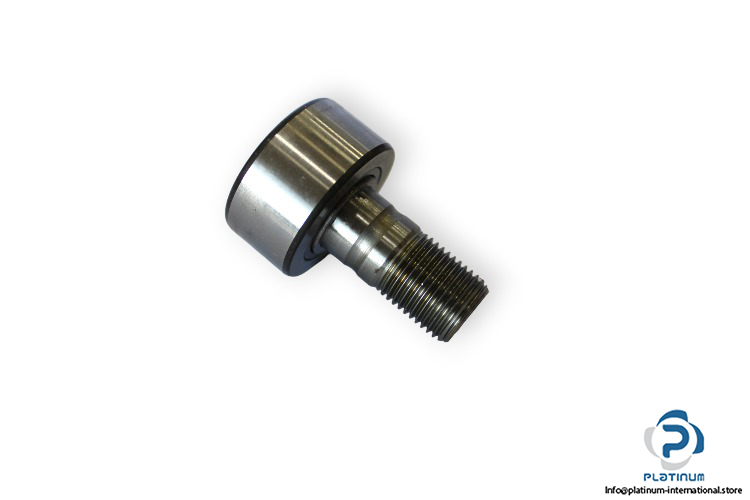

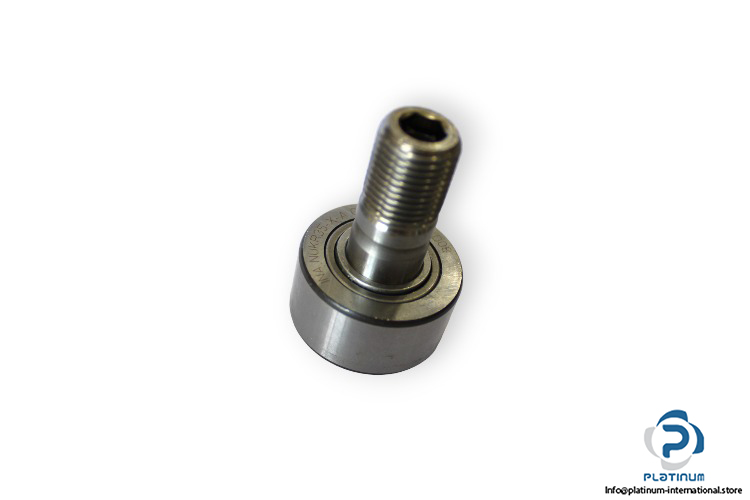

INA NUKR35-X-A Stud Type Track Roller

Manufacturer: INA
Type: Stud type track rollers
Model: NUKR35-XA

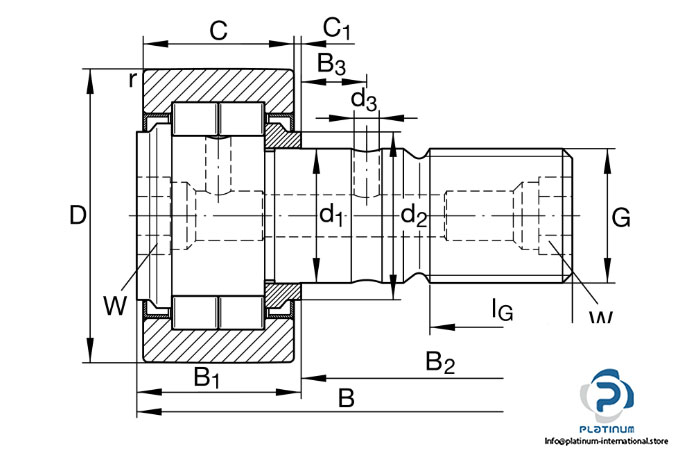

Dimensions:
Outside diameter D: 35 mm
Fit diameter of roller stud d₁: 16 mm
Width of the roller stud B: 52 mm
Roller Width B₁: 19.6 mm
Thread G: M16X1.5
Thread length: 17 mm
Basic load ratings, radial:
Dynamic C_{r w}: 15600 N
Static C_{0r w}: 18600 N
Fatigue load limit C_{ur w}: 2480 N
Speed on permanent grease lubrication: 6500 rpm
Permissible static load, radial: 16800 N
Permissible dynamic load outer ring, radial: 8500 N
