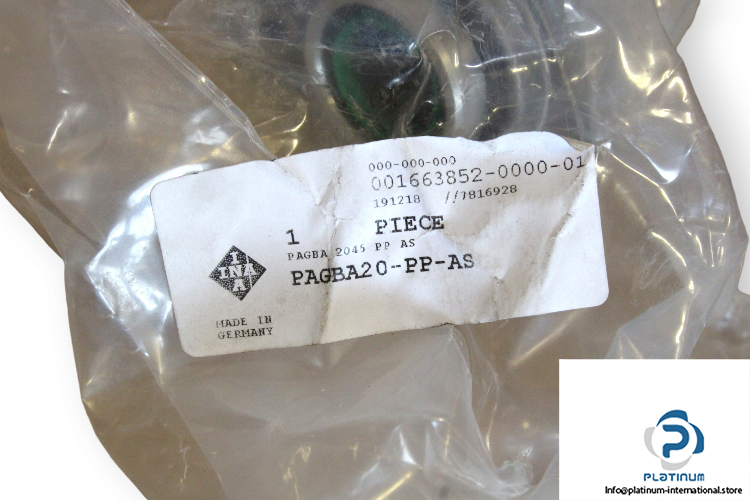

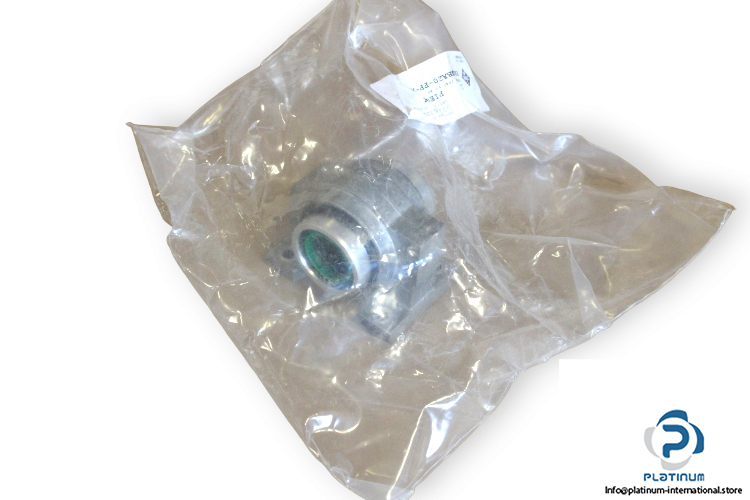

INA PAGBA20-PP-AS Linear Plain Bearing AND Housing Unit

Manufacturer: Schaeffler INA

Type:  Linear plain bearing and housing unit; sealed on all sides

Model: PAGBA 20-PP-AS

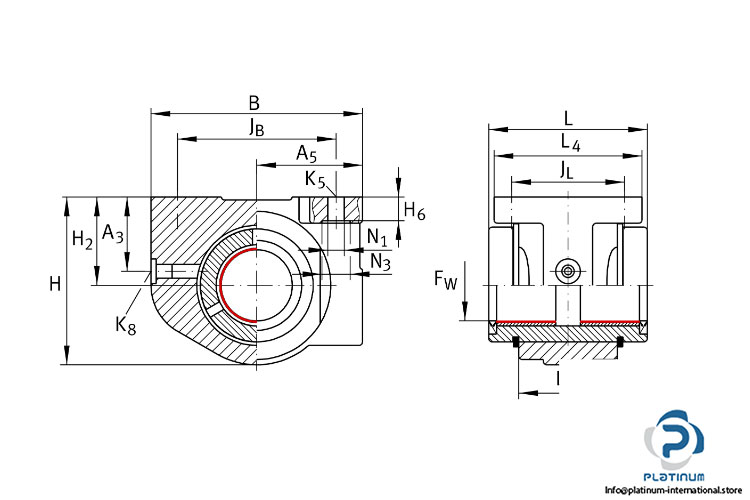

Dimensions:

Shaft diameter F_w: 20 mm

Height H: 47.5 mm

length L: 45 mm

Length of Bearing Housing L₄: 42

Width B: 60 mm

Center height H₂: 25 mm

Mounting dimension J_B: 45 mm

Mounting dimension J_L: 32 mm

Design type: Closed type

Seals: PP, Sealed
