INA PME40-XL-N Flanged Housing Unit
New
In stock2 unitsReady to ship

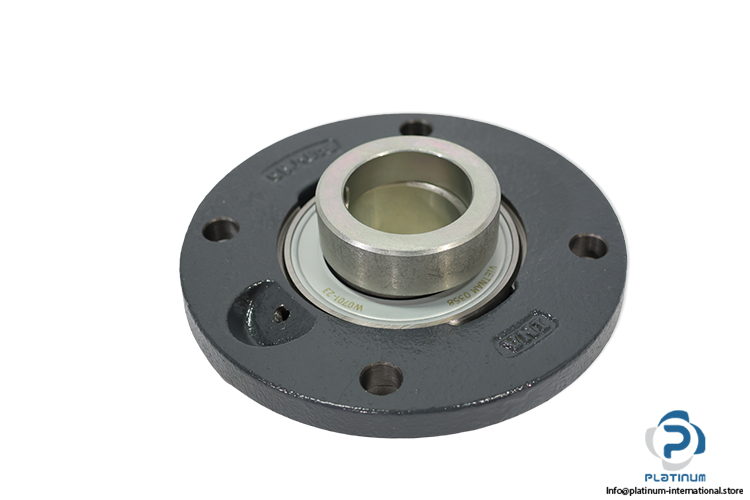

Four-Bolt Flanged Housing Unit INA Schaeffler four-bolt flanged housing unit with 40 mm bore, grey cast iron housing and eccentric locking collar for reliable industrial shaft support.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Housing | GG.ME08 |

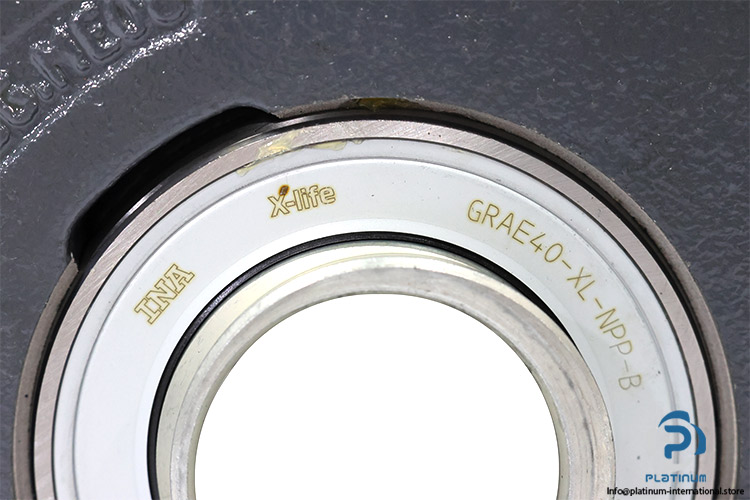

| Bearing designation | GRAE40-NPP-B |

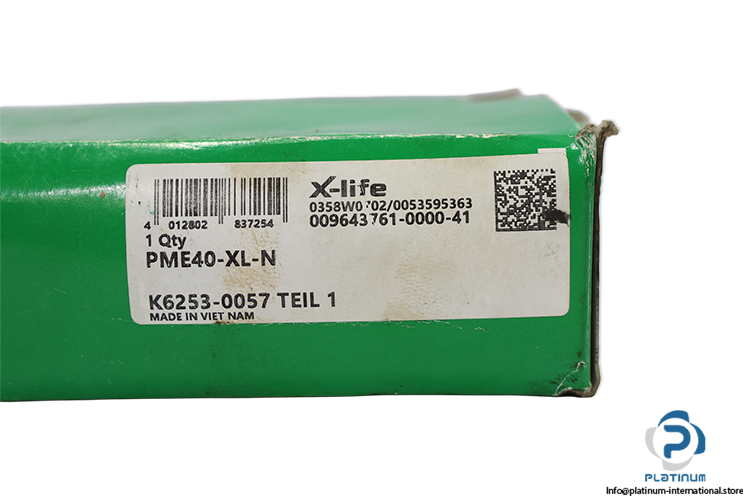

| Code | K6253-0057 TEIL 1, W0701-23 |

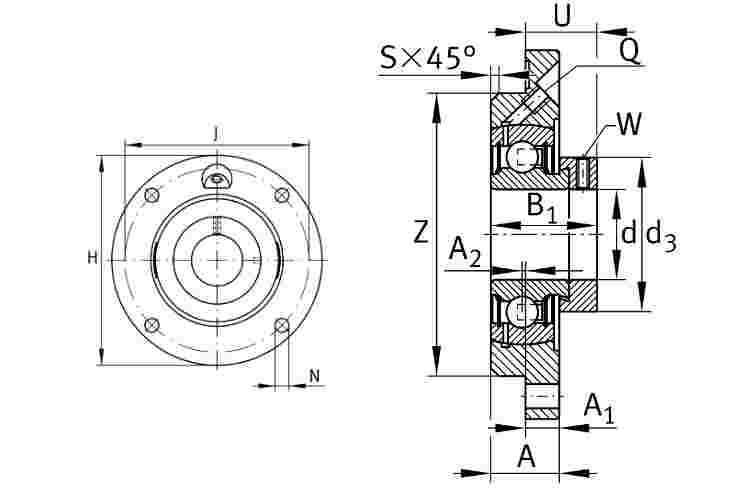

| Bore Diameter d | 40 mm |
| Height flange H | 145 mm |
| Locking collar total width B1 | 43.8 |
| Total height unit U | 31.7 mm |
| Distance fixing bore J | 120 mm |
| Fixing bore N | 11.5 mm |
| Basic dynamic load rating | 34500 N |
| Basic static load rating | 19800 N |
| Fatigue load limit | 1030 N |
| Temperature range | -20 °C…120°C |
| Groove | N, Cast iron housing with undercut slot for end caps |
| Material | GG, Grey cast iron |
| Locking Device | eccentric locking collar |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101279 |
| Weight | 1,60 |
