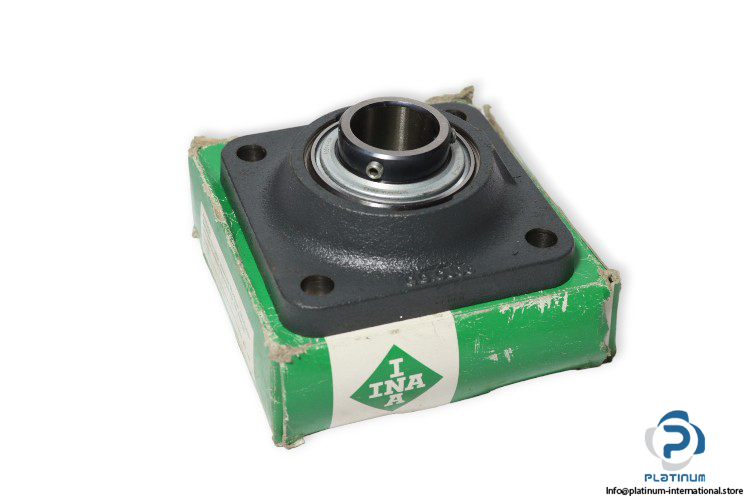

INA RCJY30-XL-N Flanged Housing Unit

Manufacturer: INA
Type: four-bolt flanged housing units
Model: RCJY30-XL-N
Replaces: RCJY30-N

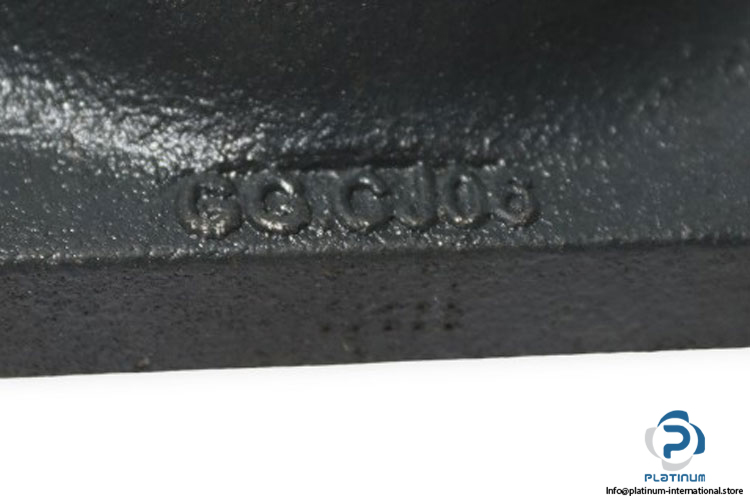

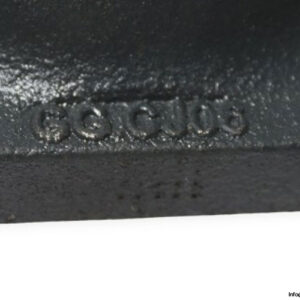

Housing: GG.CJ06-N

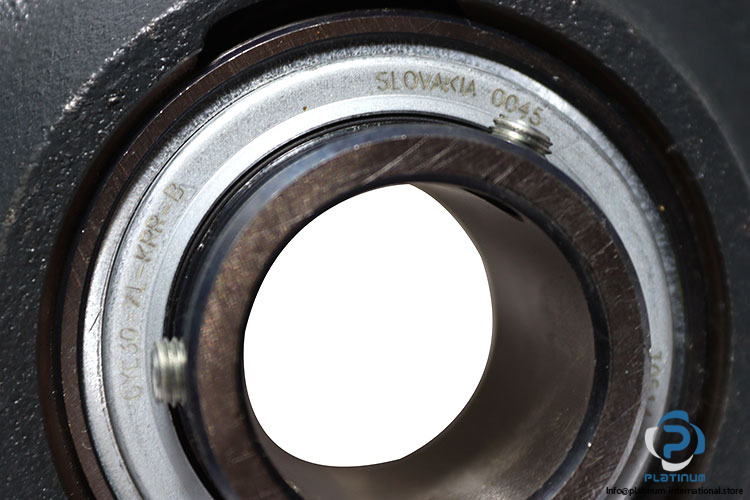

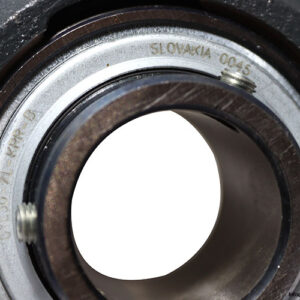

Bearing designation: GYE30-XL-KRR-B

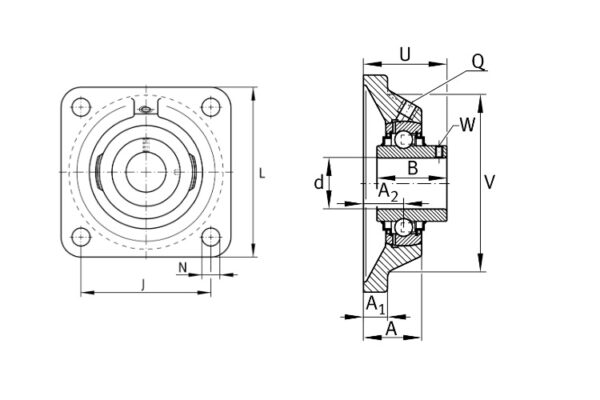

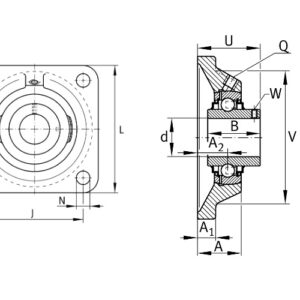

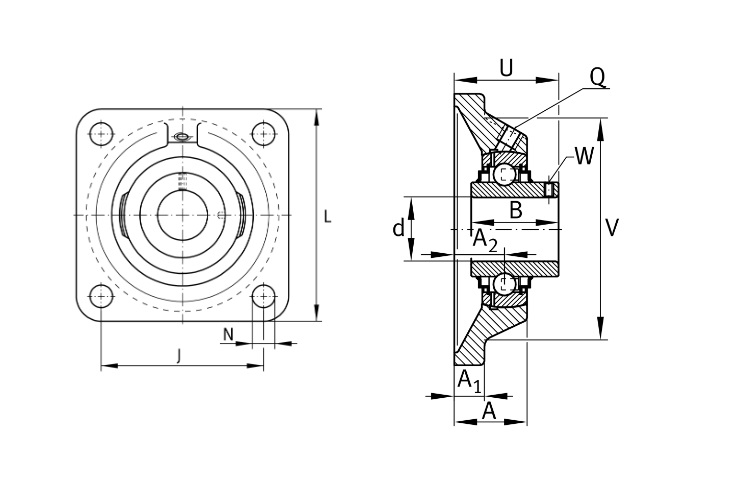

Bore Diameter d: 30 mm
Flange width L: 108 mm
Total height unit U: 42.2 mm
Distance fixing bore J: 82.5 mm
Fixing bore N: 11.5 mm
Basic dynamic load rating: 20700 N
Basic static load rating: 11300 N
Fatigue load limit: 480 N
Temperature range: -20 °C…100°C
Groove: N, Cast iron housing with undercut slot for end caps
Material: GG, Grey cast iron
