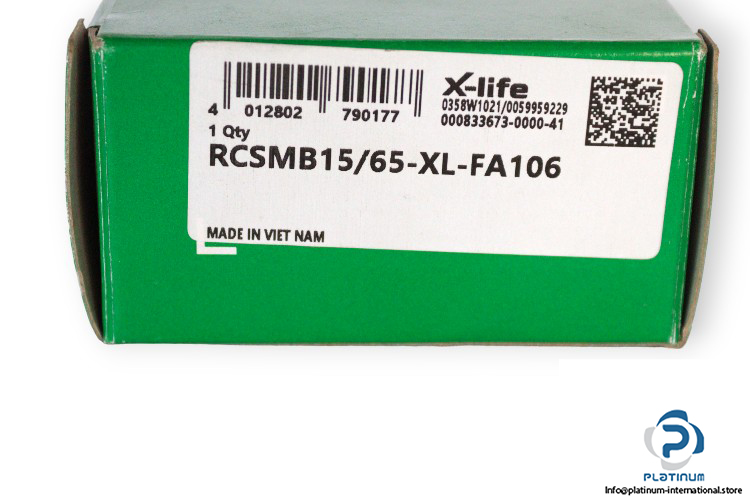

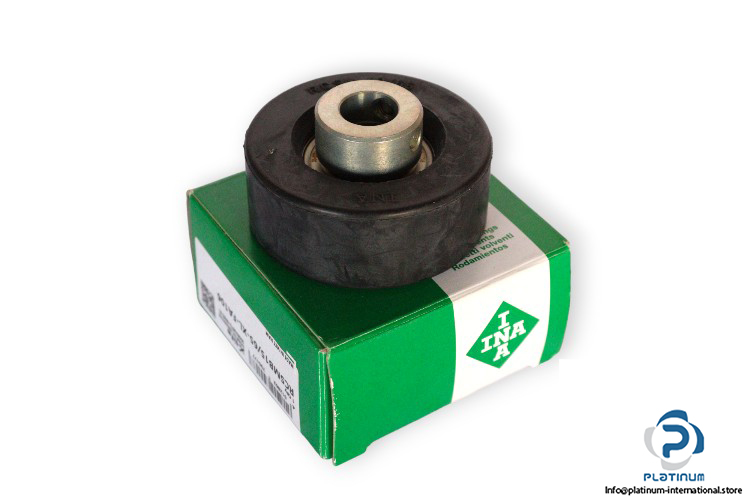

INA RCSMB15/65-XL-FA106 Insert Ball Bearing

Manufacturer: Schaeffler INA
Type: Radial insert ball bearing
Model: RCSMB15 65 XL FA106

Replaces: RCSMB15/65-FA106

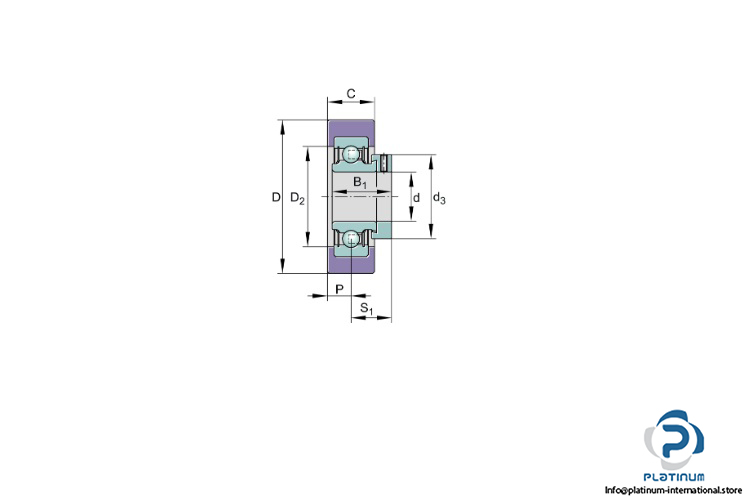

Bore Diameter d: 15 mm
Outer diameter: 65.1 mm
Width B: 25.4 mm
Locking collar total width B₁: 28.6 mm
Basic load ratings:
Dynamic C: 10100 N
Static C₀: 4750 N
Fatigue load rating: 248 N
Load carrying capacity (rubber interliner): 900
