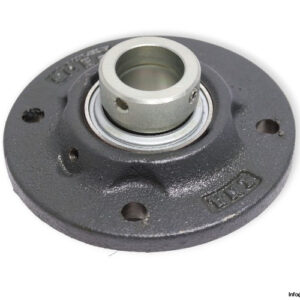

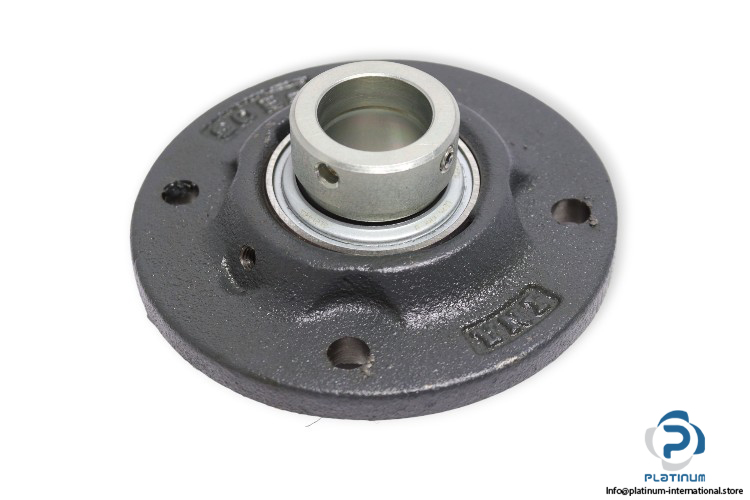

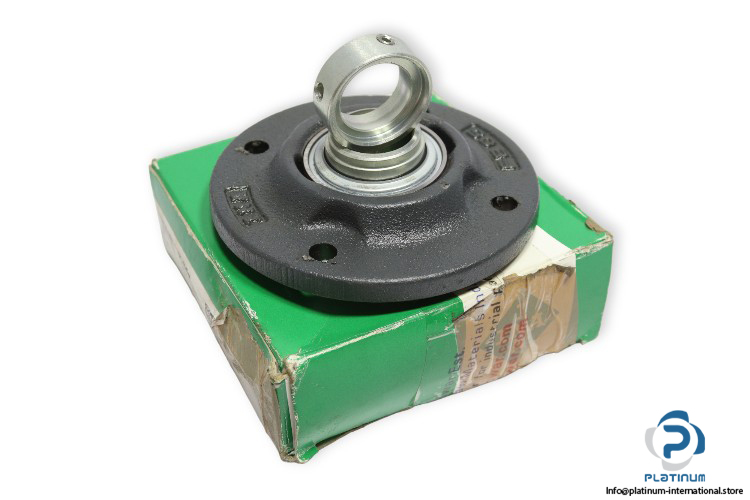

INA RFE25 Flanged Housing Unit

Manufacturer: INA
Type: four-bolt flanged housing units
Model: RFE25
Replaces: RFE25-XL

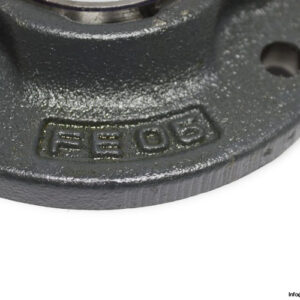

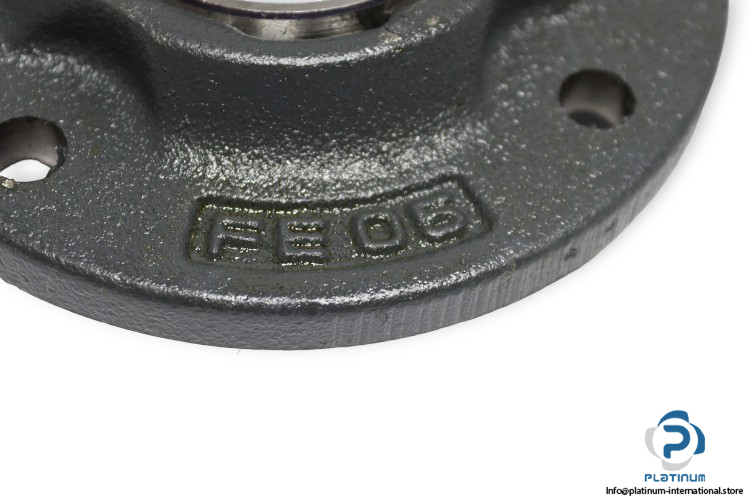

Housing: FE05

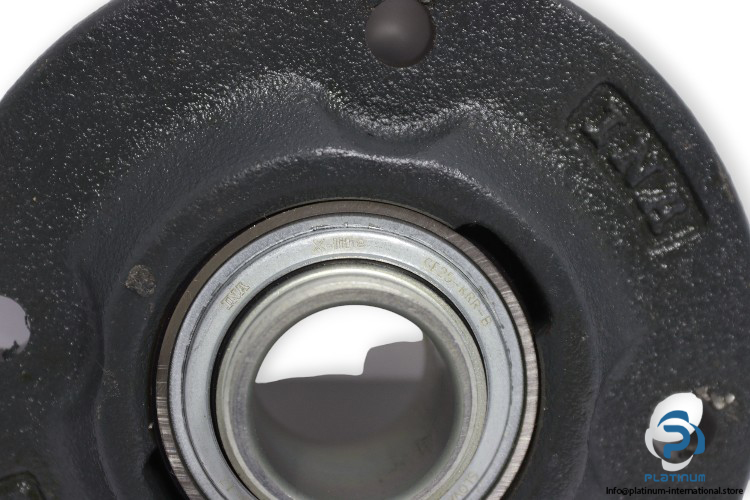

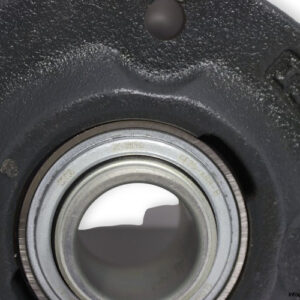

Bearing designation: GE25-KRR-B

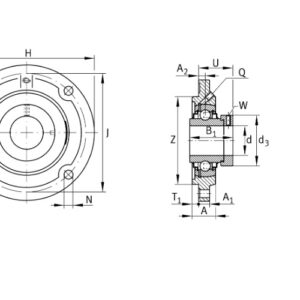

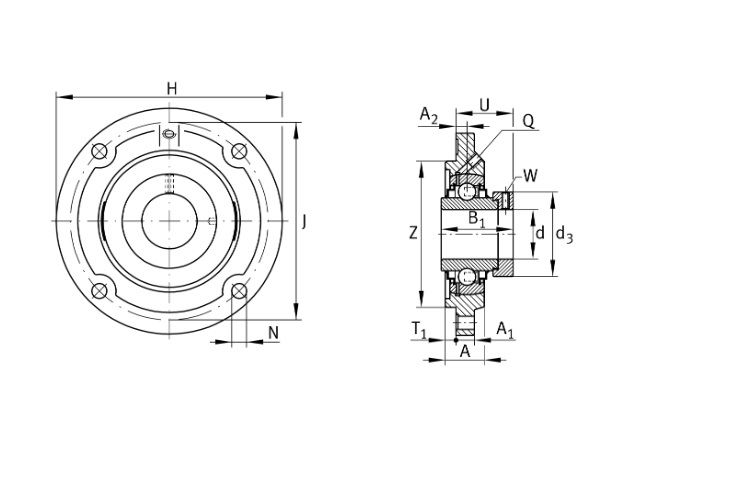

Bore Diameter d: 25 mm
Height flange H: 115 mm
Total height unit U: 36.4 mm
Distance fixing bore J: 92 mm
Fixing bore N: 9 mm
Basic dynamic load rating: 14900 N
Basic static load rating: 7800 N
Fatigue load limit: 410 N
Temperature range: -20 °C…120°C
Material: GG, Grey cast iron
