INA RMEY25-N Flanged Housing Unit
New
In stock1 unitReady to ship
Flanged Housing Unit
The INA RMEY25 N Flanged Housing Unit features a 25 mm bore diameter, 14900 N dynamic load rating, and a grey cast iron housing, providing reliable performance in heavy-load industrial applications.1490025bearingboreCapacityCastdiameterDynamicflangedGreyGrooveGYE25-KRR-BHighHousingInaIndustrialIronLoadmmNRatingRMEY25UnitWith
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

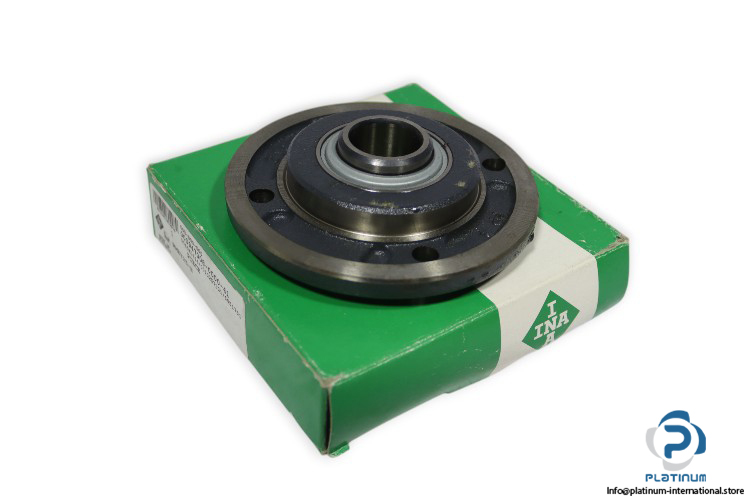

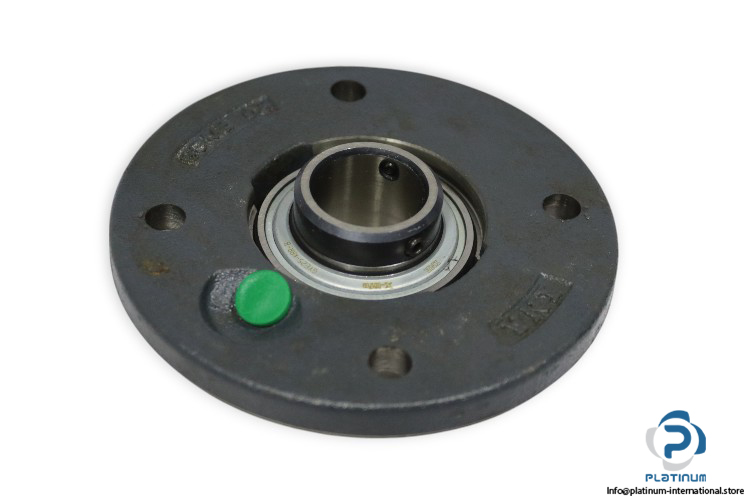

INA RMEY25 N Flanged Housing Unit
The INA RMEY25 N Flanged Housing Unit is designed for reliable and efficient operation in various industrial applications. This unit combines a high-performance bearing with a sturdy cast iron housing, ensuring durability and stability under heavy loads.
Manufacturer: INA
Type: FLANGED HOUSING UNIT
Model: RMEY25 N
Basic Load Ratings:
This INA flanged housing unit offers a robust solution for industrial applications requiring precision and high load capacity, providing long-lasting reliability and optimal performance under varying temperatures and loads.
| Housing | GGME 05 |

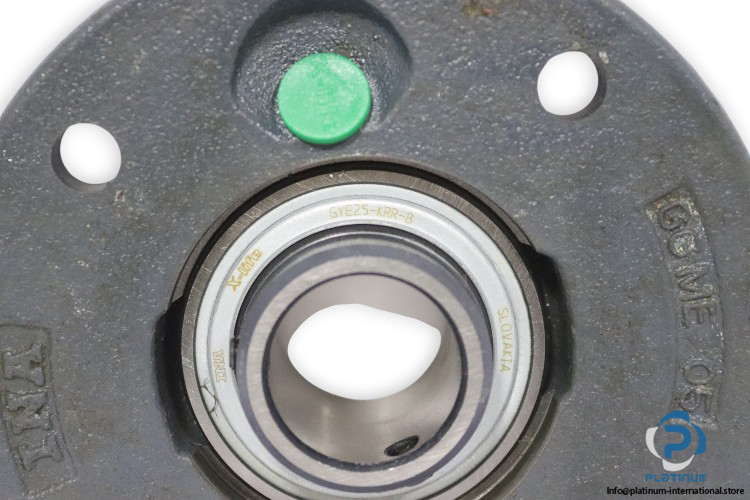

| Bearing Designation | GYE25-KRR-B |
| Bore Diameter (d) | 25 mm |
| Height Flange (H2) | 115 mm |
| Total Height Unit (U) | 17.3 mm |
| Pitch Circle Diameter (Holes) | 90 mm |
| Fixing Bore (N) | 9 mm |
| Dynamic Load Rating | 14900 N |
| Static Load Rating | 7800 N |
| Fatigue Load Limit, Radial | 335 N |
| Temperature Range | -20 °C - 120°C |
| Material | GG, Grey Cast Iron |
| Groove | Cast iron housing with undercut slot for end caps |
