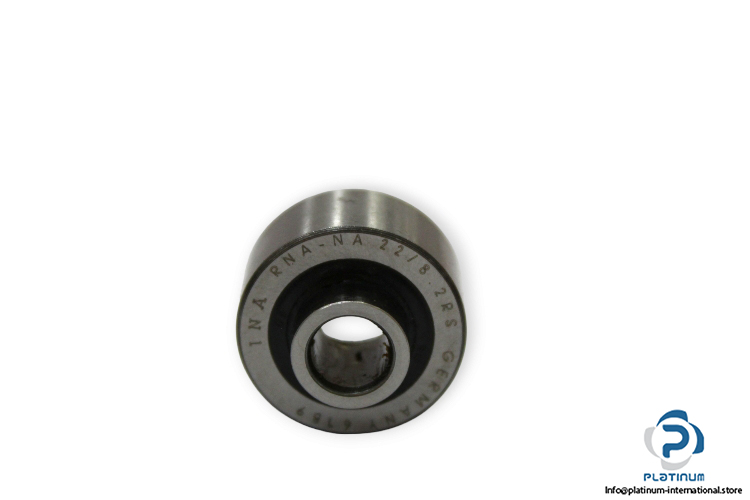

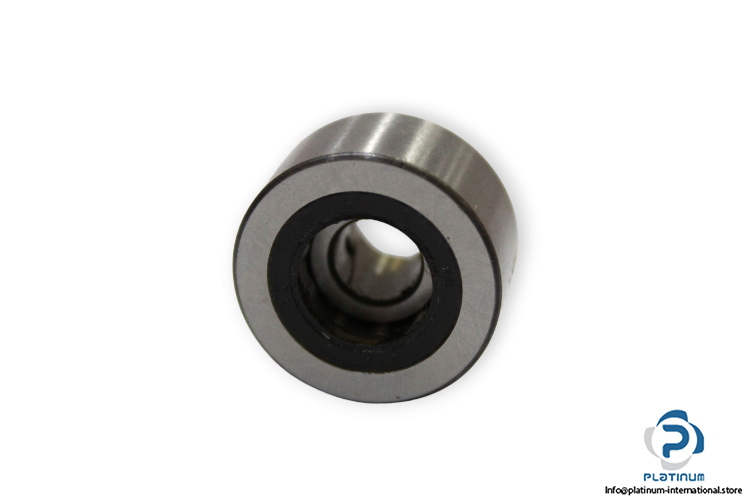

INA RNA-NA 22/8.2RS Needle Roller Bearing
Manufacturer: Schaeffler INA
Type: Needle Roller Bearing
Model: NA22/8.2RS
Dimensions
Bore Diameter d: 8 mm
Outer diameter D: 24 mm
Width, outer ring C: 11.8 mm
Raceway diameter inner ring F: 12 mm
Minimum chamfer dimension rmin: 0.3 mm
Basic load ratings:
Dynamic Cr: 4100 N
Static C0r: 4300 N
Fatigue load limit Cur: 650 N
Speed on permanent grease lubrication: 7000 rpm
Sealing: 2RS, Lip seal on both sides
