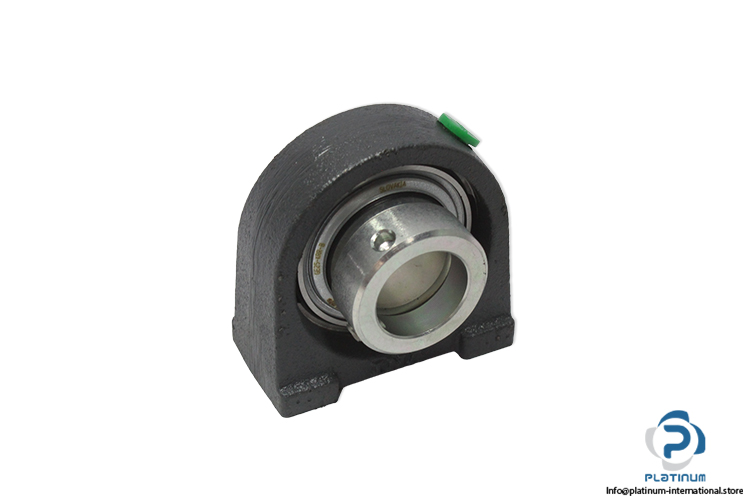

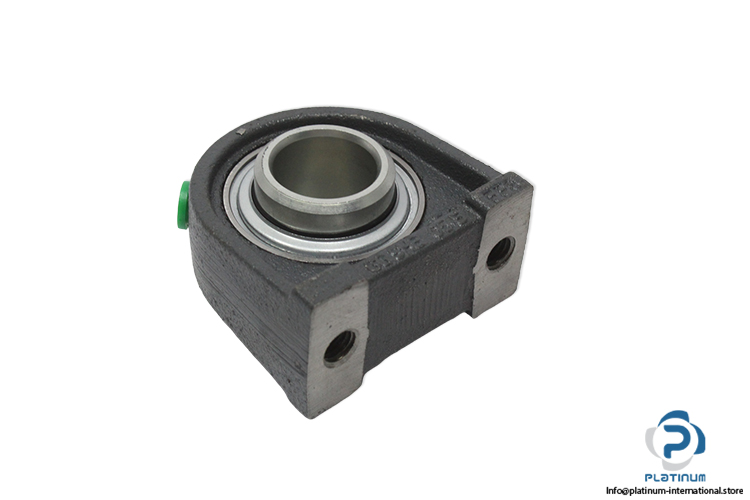

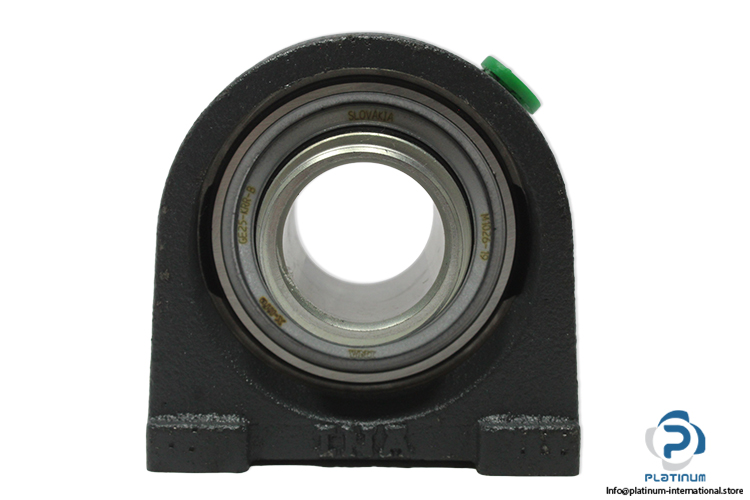

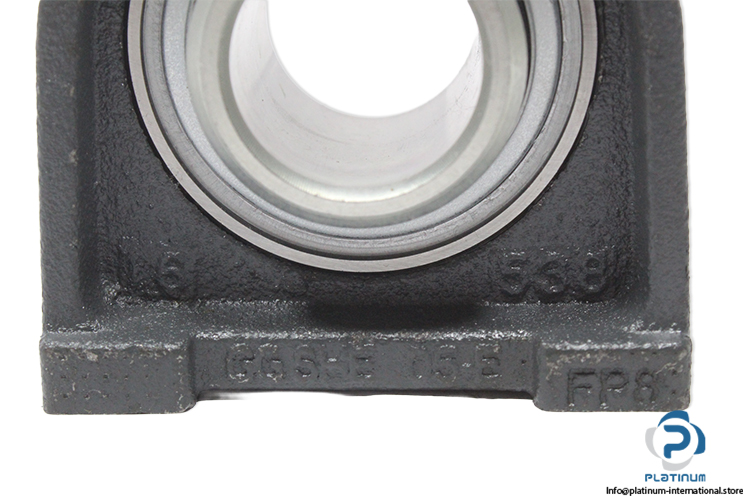

INA RSHE25-N Plummer Block Housing Unit
New
In stock3 unitsReady to ship
Plummer Block Housing Unit INA Schaeffler RSHE25-N plummer block housing unit with a 25 mm bore, for reliable industrial shaft support.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

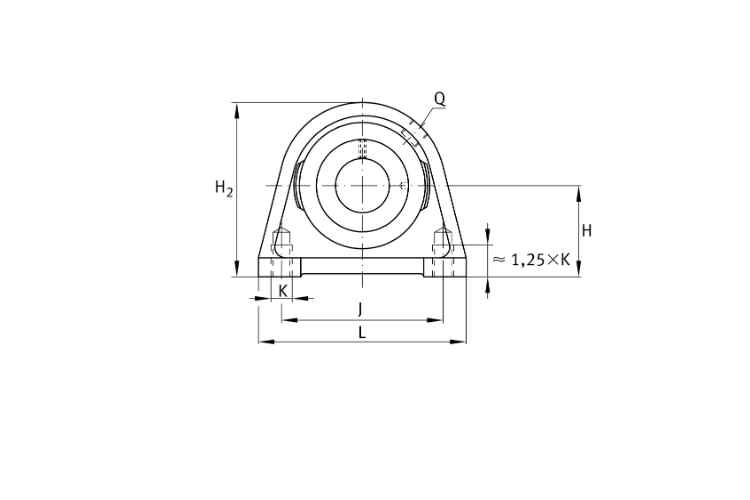

| Replaces | RSHE25-XL-N |
| Housing | GG. SHE05-E |
| Bearing designation | GE25-KRR-B |
| Bore Diameter (d) | 25 mm |
| Overall Length (a) | 70 mm |
| Height | 70 mm |
| Distance fixing bore | 50.8 mm |
| Thread fixing bore | M10 |
| Distance shaft axis, H | 36.5 mm |
| Width (base), A | 36 mm |
| Width (head), A1 | 21 mm |
| Connection thread for lubrication, Q | M6 |

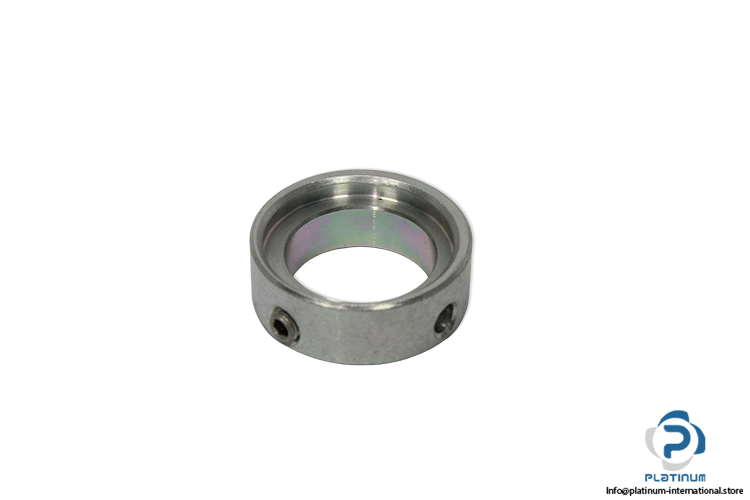

| Locking collar total width, B1 | 27 mm |
| Groove ,N | Cast iron housing with undercut slot for end caps |
| Material | GG, Grey cast iron |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101220 |
| Weight | 0,60 |
