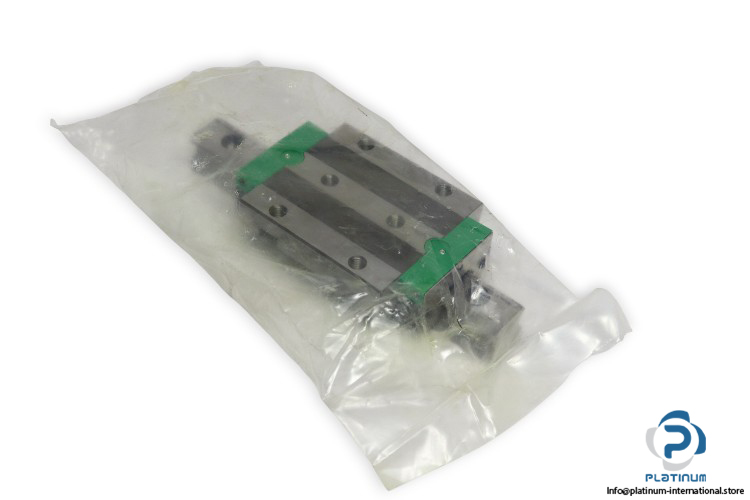

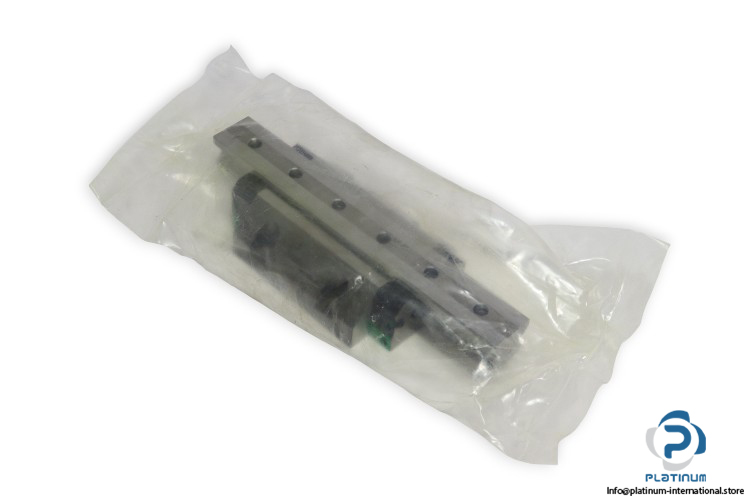

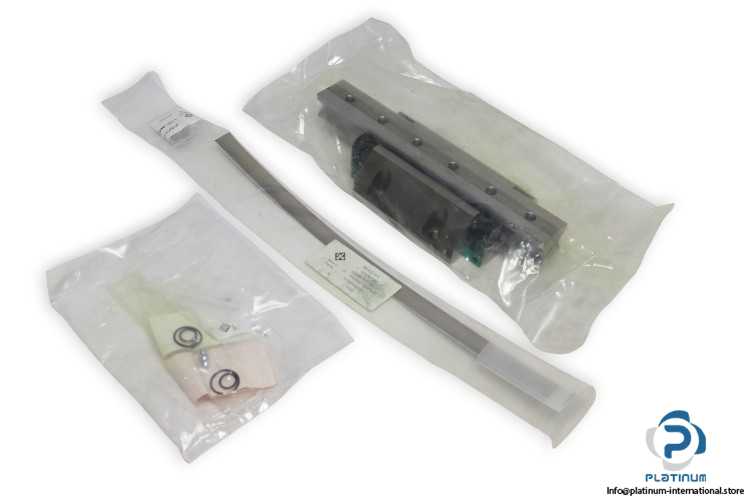

INA RUE35-E-L-ADK Linear Guideway Assembly
The INA RUE35-E-L-ADK linear recirculating roller bearing and guideway assembly is designed for high-load, high-rigidity linear motion applications. It provides precise guidance, excellent load capacity, and stable operation in demanding industrial environments.
Manufacturer: INA
Type: Linear Recirculating Roller Bearing and Guideway Assembly

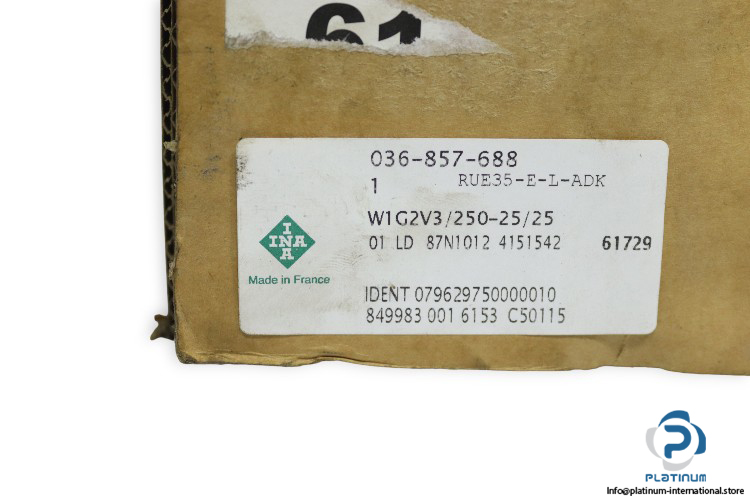

Model: RUE35-E-L-ADK W1G2V3/250-25/25

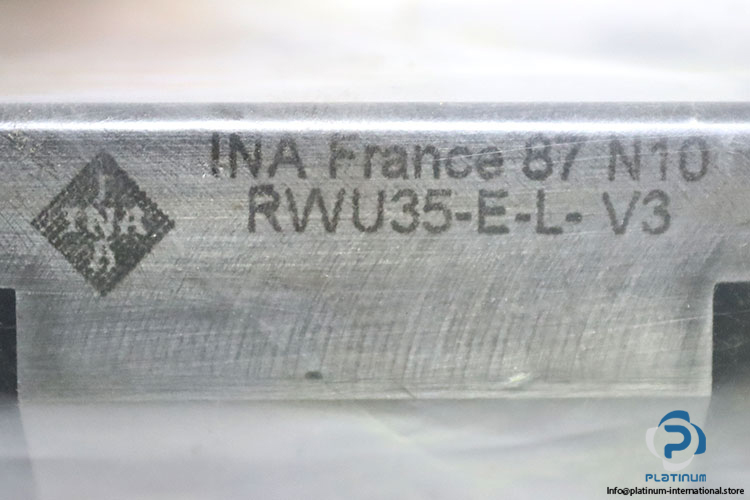

Bearing Model: RWU35-E-L-V3

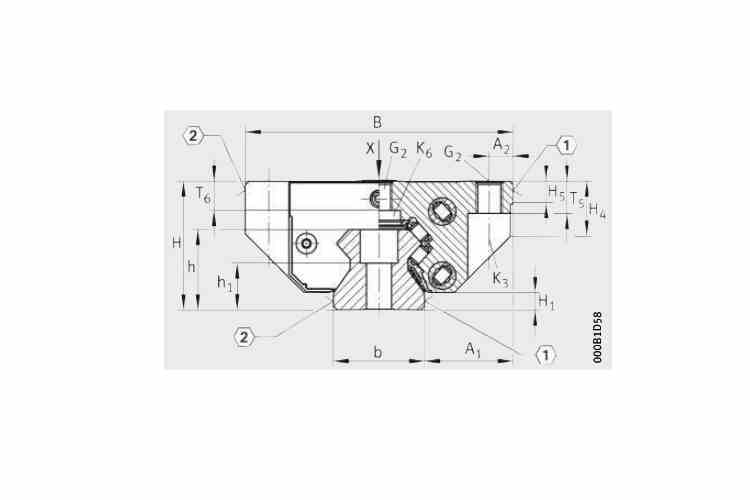

| Size | 35 mm |
| Height System | 48 mm |
| Width Carriage | 100 mm |
| Overall Length Carriage | 148.8 mm |
| Rail Width | 34 mm |
| H1 | 6.5 mm |
| H4 | 20.5 mm |
| H5 | 8 mm |

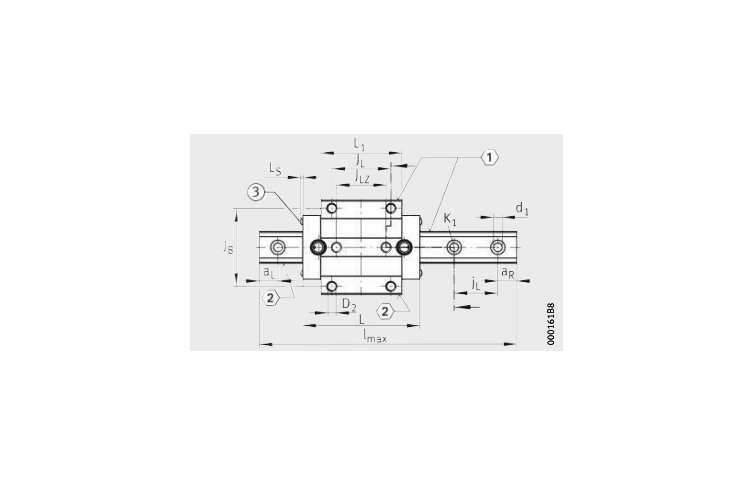

| L1 | 111 mm |
| Dynamic Load Rating | 70,000 N |
| Static Load Rating | 175,000 N |
| Static Moment Rating About X Axis (M0x) | 1,500 Nm |
| Static Moment Rating About Y Axis (M0y) | 3,350 Nm |
| Static Moment Rating About Z Axis (M0z) | 3,000 Nm |
