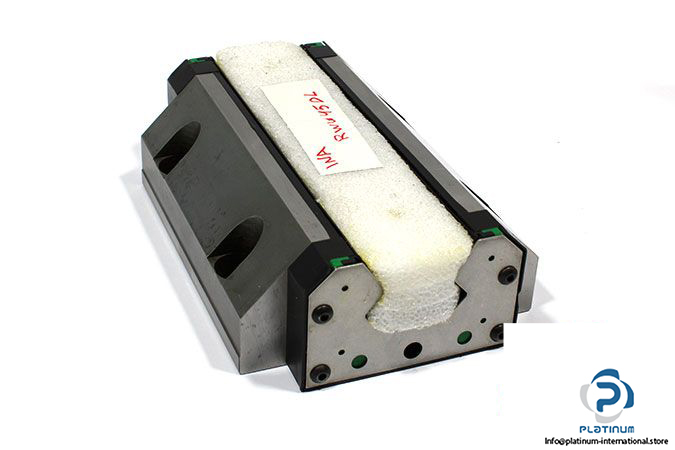

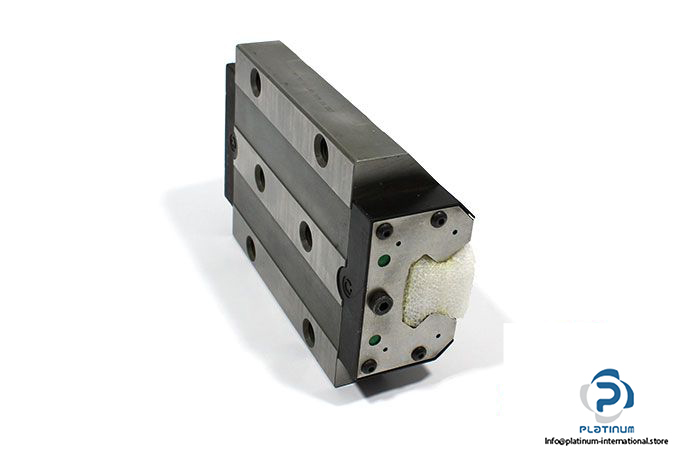

INA RWU 45 DL Recirculating Roller Bearing Carriage

Manufacturer: Schaeffler INA

Type: Linear Recirculating Roller Bearing Carriage

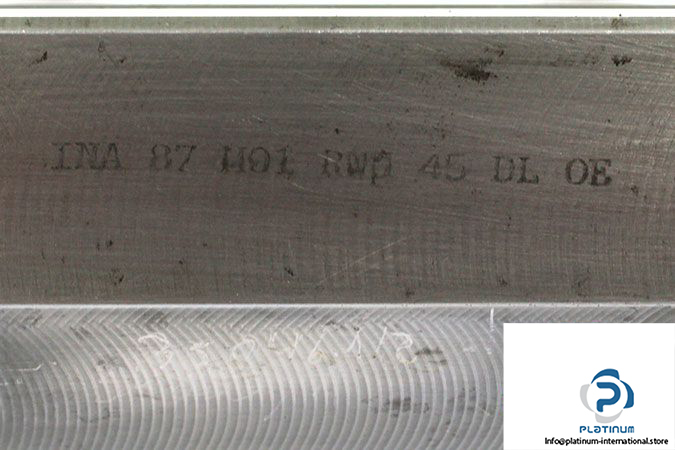

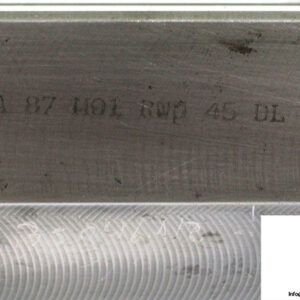

Model: RWU45 DL OE

Size: 45

Carriage Design: long design

Basic Load Ratings:

Dynamic C: 115 kN

Static C₀: 275 kN

Static Moment Rating About:

X axis M_0x: 2410 Nm

Y axis M_0Y: 6770 Nm

Z axis M_0Z: 6095 Nm

Preload: V1

Accuracy Class: G3

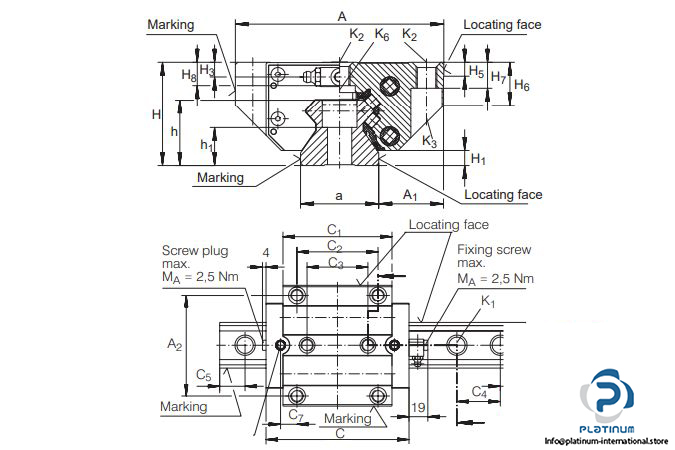

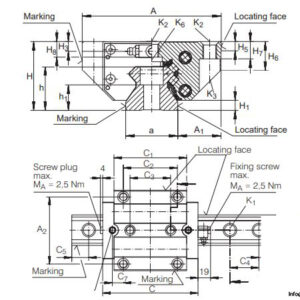

Dimensions

Height system H: 60 mm

Width carriage A: 120 mm

Overall length carriage C: 175 mm

C₂: 80 mm

A₂: 100 mm

Weight: 4.3 kg
