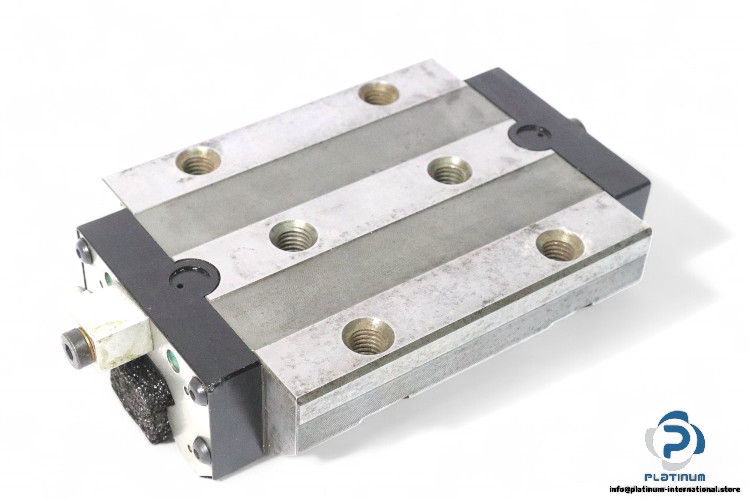

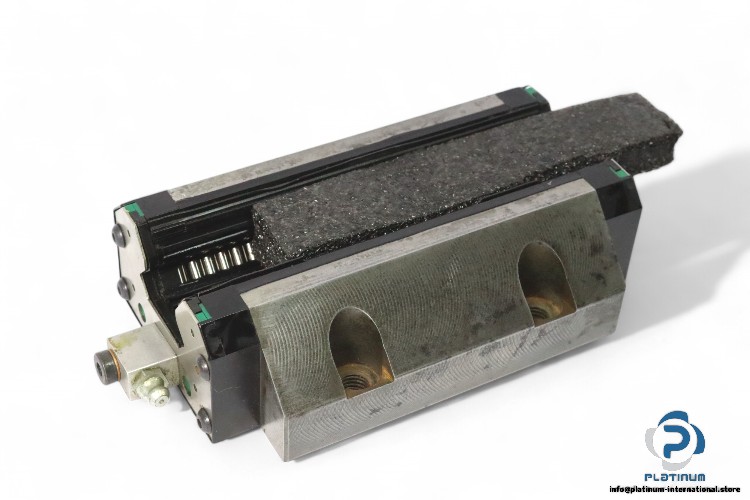

INA RWU35 DL OE Recirculating Roller Bearing Carriage

Manufacturer: INA
Type: RECIRCULATING ROLLER BEARING CARRIAGE
Model: RWU35-DL-OE

Size: 35 mm

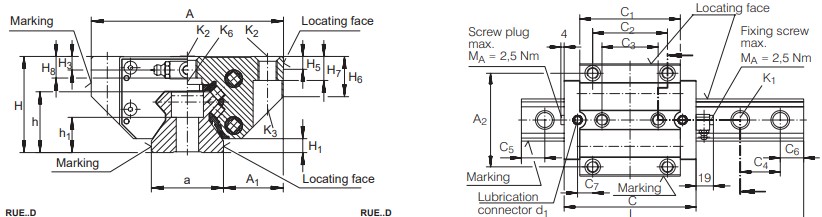

Dimensions
Height system H: 48 mm
Width carriage A: 100 mm
Height carriage(H-H1): 41.5 mm
Overall length carriage L: 143 mm
Basic Load Ratings:
Dynamic C: 70 kN
Static C₀: 169 kN
Static Moment Rating About:
X axis M_0x: 1,255 Nm
Y axis M_0Y: 3,370 Nm
Z axis M_0Z: 3,035 Nm
Lubrication Suffix: OE, Oil
Carriage Length: L, Long Version — Standard, Flanged
Design Version: D
