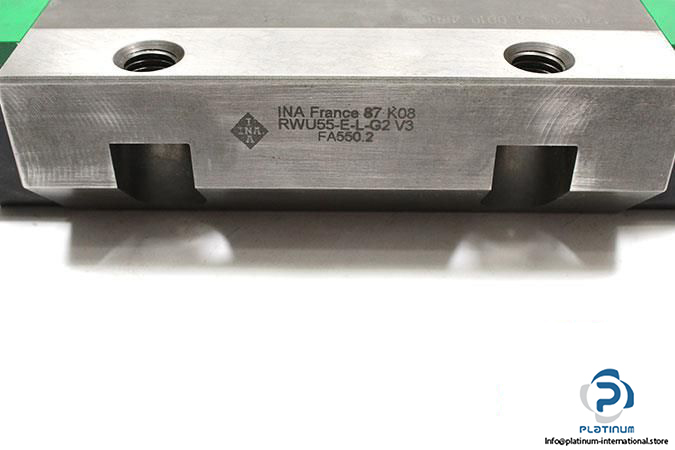

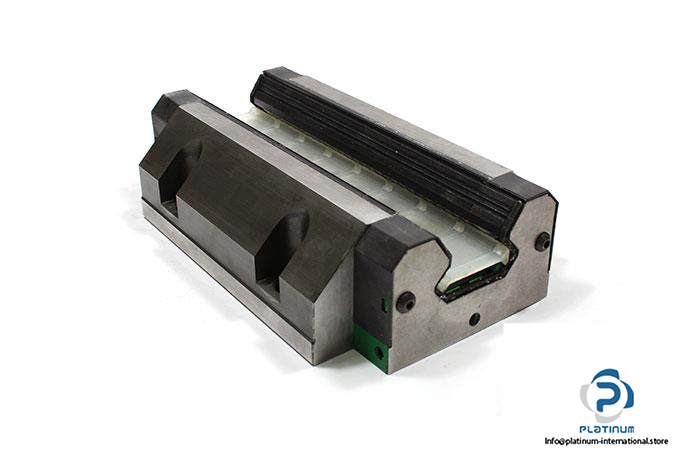

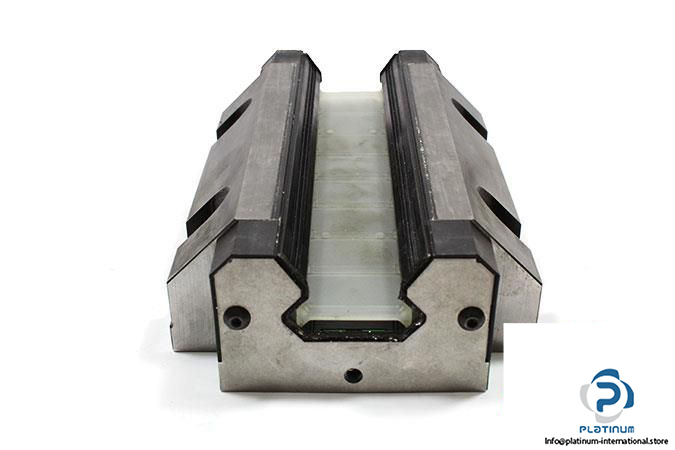

INA RWU55-E-G2-V3 Recirculating Roller Bearing Carriage
New
In stock2 unitsReady to ship
500,00$
Recirculating Roller Bearing Carriage INA recirculating roller bearing carriage designed for high-precision linear motion systems, offering high load capacity, G2 accuracy, and V3 preload for demanding industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Rail | TSX 55-E(-U) |
| Size | 55 mm |
| Height System H | 70 mm |
| Height of Block | 59 mm |
| Width Carriage B | 140 mm |
| Overall Length Carriage L | 172,7 mm |
| JL | 95 mm |
| JB | 116 mm |
| Dynamic Load rating C | 136,000 N |
| Static Load rating C0 | 320,000 N |
| X Axis M0x | 3 287 Nm |
| Y Axis M0y | 7 404 Nm |
| Z Axis M0z | 6 667 Nm |
| Accuracy Class | G2 |
| Carriage Preload | V3 |
| Condition | New |
| SKU | 966324 |
| Weight | 6,7 |
