INA STO17 Yoke Type Track Roller
New
In stock1 unitReady to ship
Track Roller
INA STO17 yoke type track roller with high load capacity, precision dimensions, and grease-lubricated design for guided motion systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

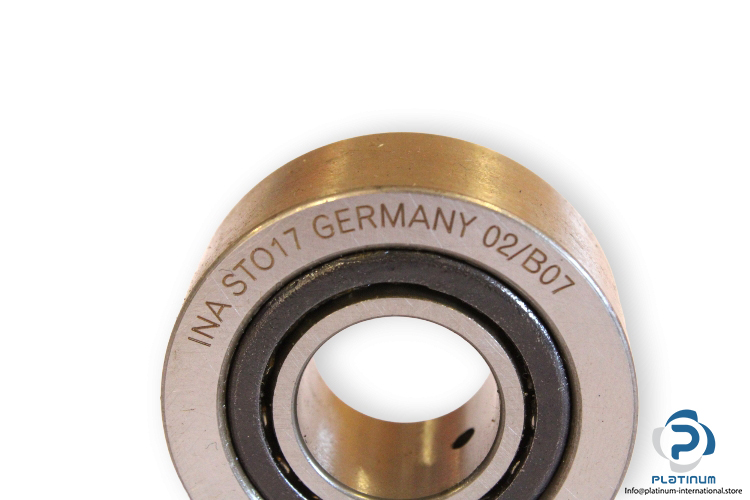

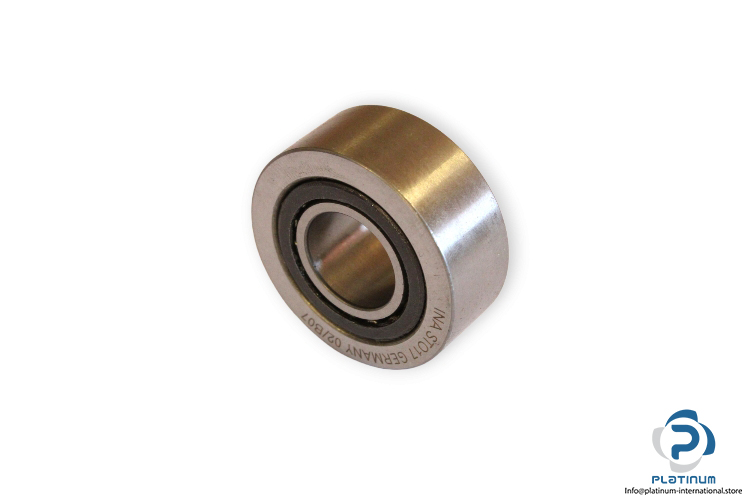

INA STO17 Yoke Type Track Roller
The INA STO17 yoke type track roller is designed for applications requiring high load capacity, precise guidance, and reliable rolling performance. Manufactured by Schaeffler, this track roller features a robust outer ring profile suitable for cam drives, linear guides, and track systems operating under demanding conditions.
Manufacturer: INA / Schaeffler
Type: Yoke Type Track Roller
Model: STO17

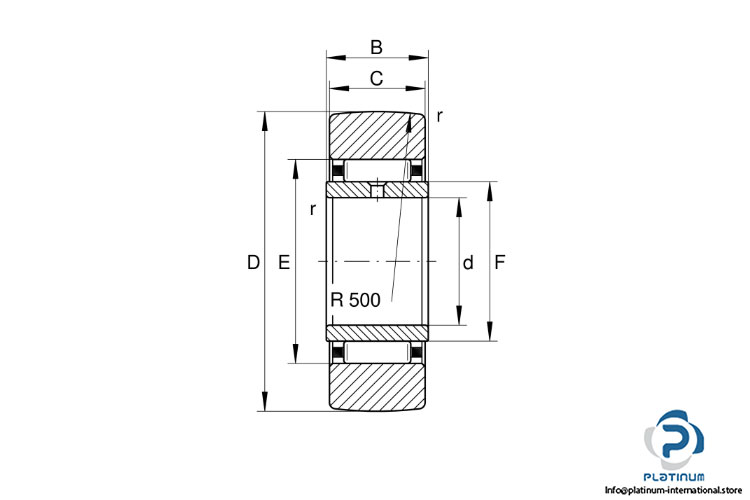

| Bore Diameter (d) | 17 mm |
| Outer Diameter (D) | 40 mm |
| Width, Inner Ring (B) | 16 mm |
| Width, Outer Ring (C) | 15.8 mm |
| Dynamic Load Rating | 14,200 N |
| Static Load Rating | 18,200 N |
| Fatigue Load Limit | 2,550 N |
| Speed (Permanent Grease Lubrication) | 2,800 RPM |
