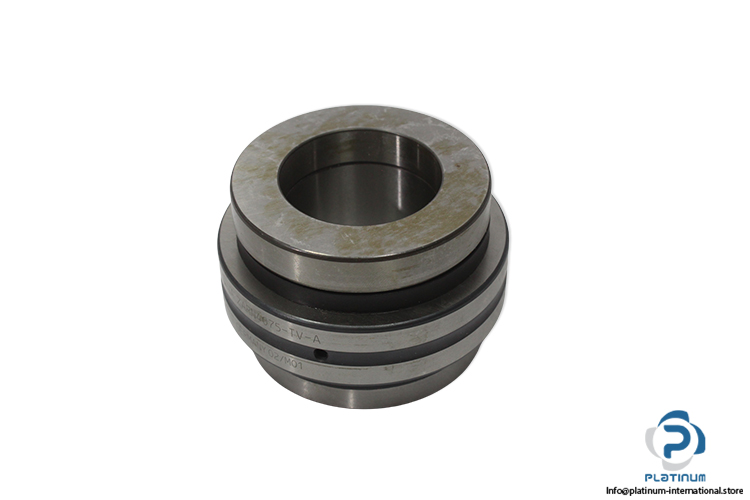

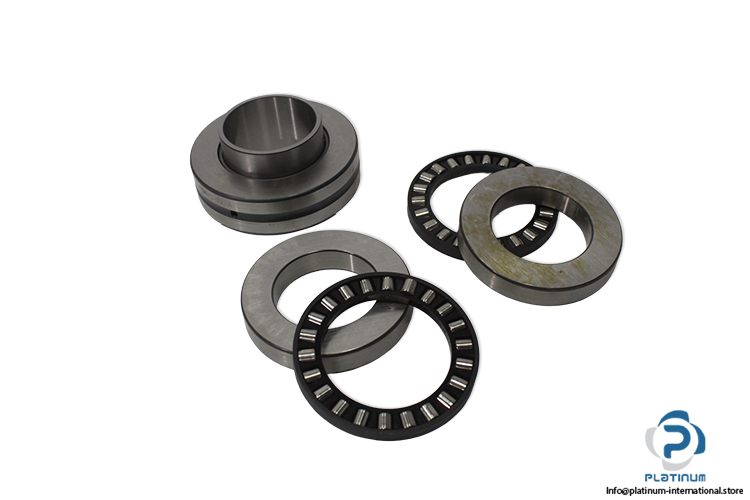

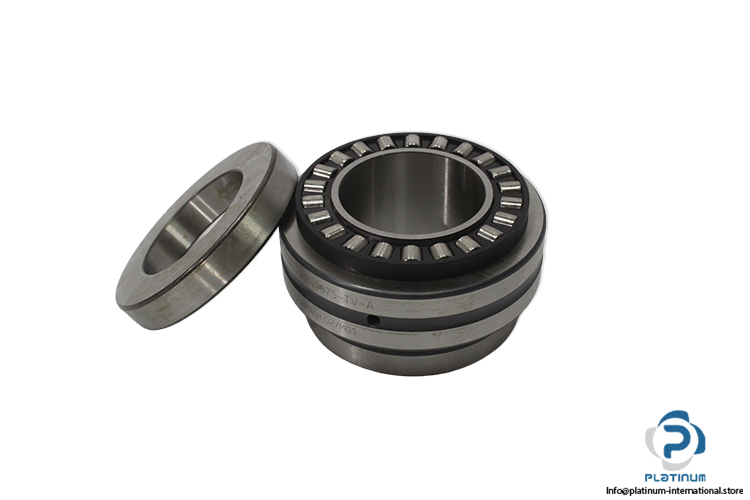

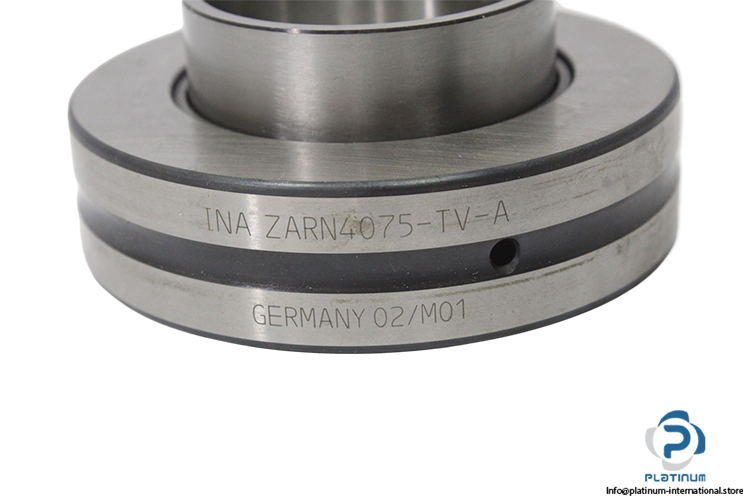

INA ZARN4075-TV-A Needle Roller/Axial Cylindrical Roller Bearing
New
In stock1 unitReady to ship
Needle Roller/Axial Cylindrical Roller Bearing The INA Schaeffler ZARN4075-TV-A is a precision bearing for combined radial and axial loads, featuring high load capacity and a PA66 plastic cage.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

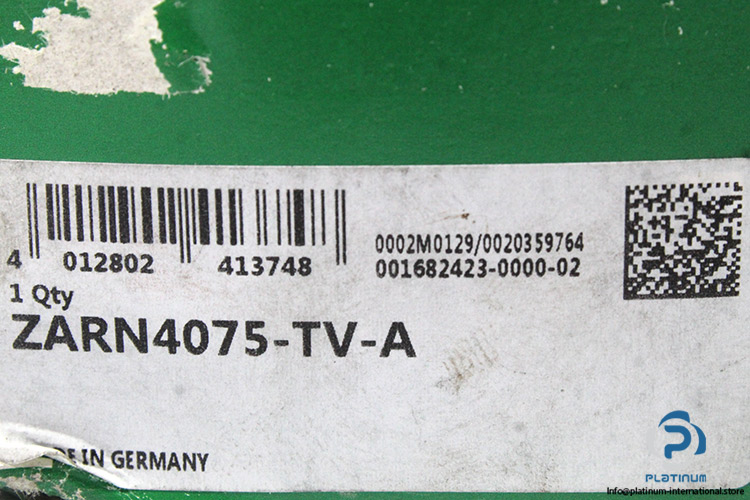

| Code | 0002M0129/0020359764/001682423-0000-02 |
| Bore diameter d | 40 mm |
| Outer diameter D | 75 mm |
| Width B | 54 mm |
| Dynamic Load Capacity C | 59,000 N |
| Static Load Capacity C0 | 163,000 N |
| Fatigue load limit, axial | 14,200 N |
| Fatigue load limit, radial | 7,600 N |
| Basic dynamic load rating, radial | 27,500 N |
| Basic static load rating, radial | 53,000 N |
| Limiting speed for oil lubrication | 4,400 1/min |
| Limiting speed for grease lubrication | 1,600 1/min |
| Bearing friction torque | 1 Nm |
| Maximum diameter of housing shoulder | 66 mm |
| Minimum diameter shaft shoulder | 55 mm |
| Height outer ring over wave washer | 37 mm |
| Width, outer ring | 20 mm |
| Width, inner ring | 11 mm |
| Cage | TV Plastic Cage made from PA66 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101201 |
| Weight | 0,95 |
