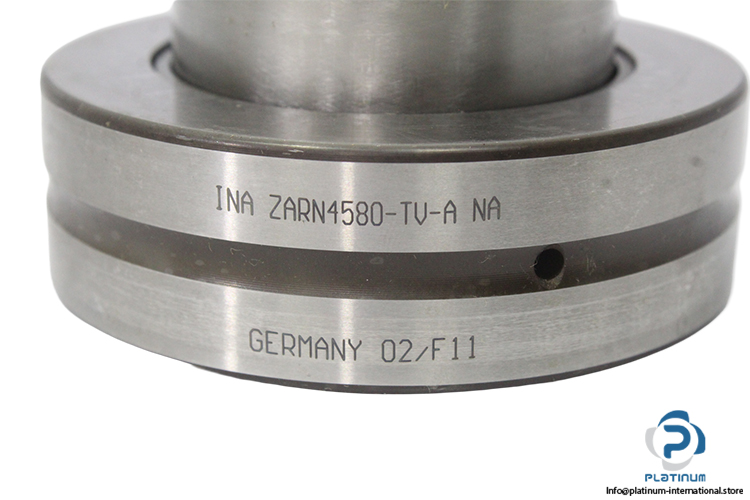

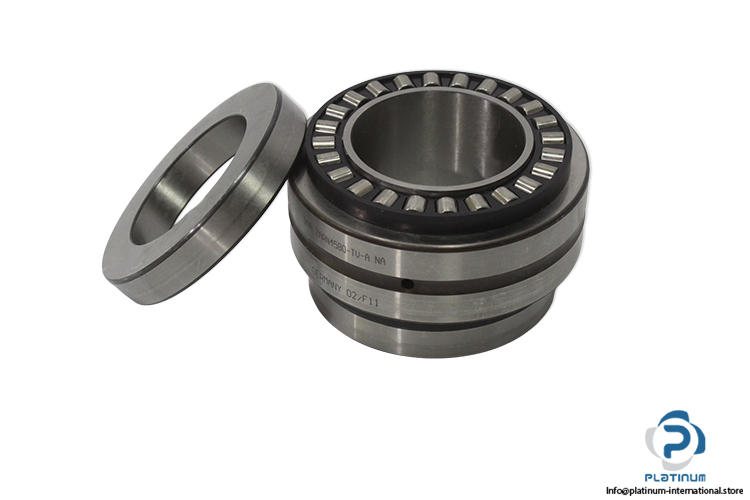

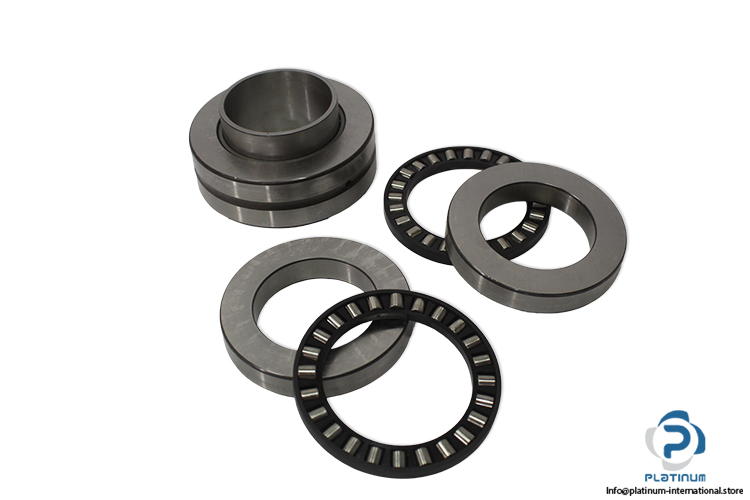

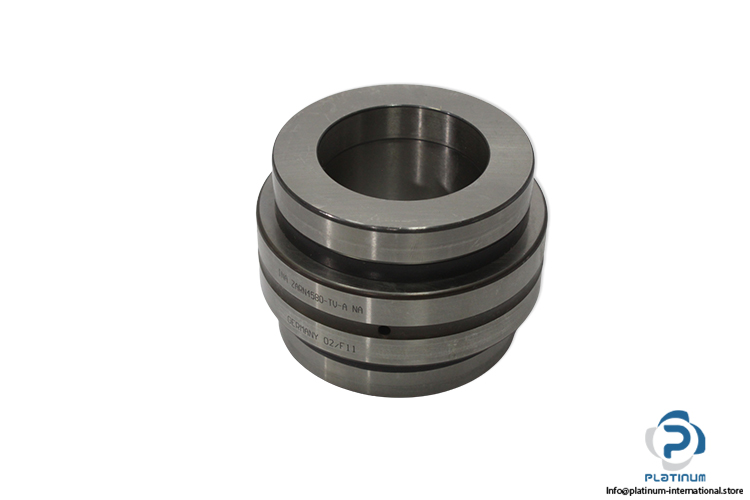

INA ZARN4580-TV-A Needle Roller/Axial Cylindrical Roller Bearing
New
In stock3 unitsReady to ship
Needle Roller/Axial Cylindrical Roller Bearing The INA Schaeffler ZARN4580-TV-A is a precision bearing for combined radial and axial loads, featuring high load capacity and a PA66 plastic cage.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | 02/F11 |
| Bore diameter d | 45 mm |
| Outer diameter D | 80 mm |
| Width B | 60 mm |
| Dynamic Load Capacity C | 61,000 N |
| Static Load Capacity C0 | 177,000 N |
| Fatigue load limit, axial | 15.500 N |
| Fatigue load limit, radial | 10.400 N |
| Basic dynamic load rating, radial | 38.000 N |
| Basic static load rating, radial | 74.000 N |
| Limiting speed for oil lubrication | 4.000 1/min |
| Limiting speed for grease lubrication | 1,500 1/min |
| Bearing friction torque | 1.2 Nm |
| Maximum diameter of housing shoulder | 71 mm |
| Minimum diameter shaft shoulder | 60 mm |
| Height outer ring over wave washer | 42.5 mm |
| Width, outer ring | 25 mm |
| Width, inner ring | 11.5 mm |
| Cage | TV Plastic Cage made from PA66 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101202 |
| Weight | 1,20 |
