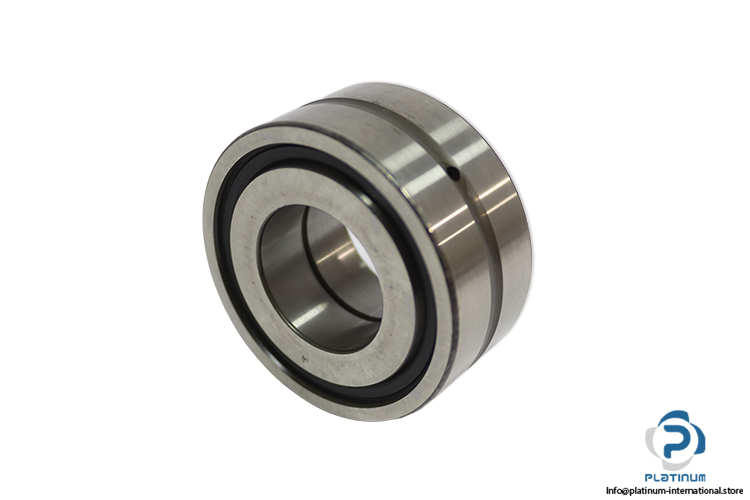

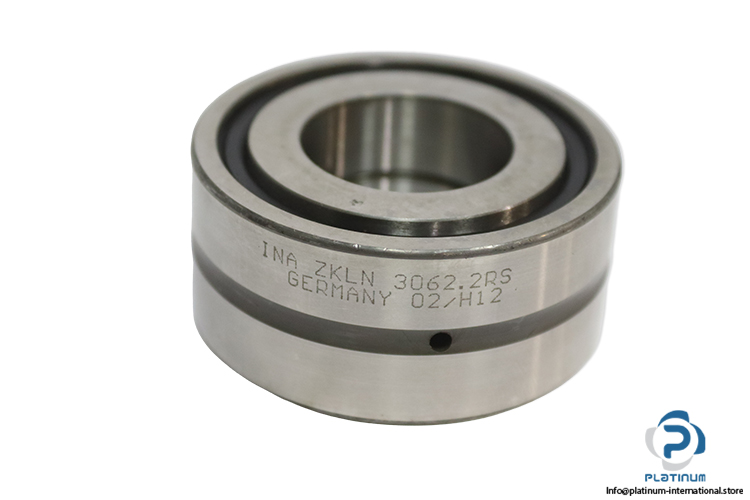

INA Zkln 3062.2RS Axial Angular Contact Ball Bearing
New
In stock2 unitsReady to ship
Axial Angular Contact Ball Bearing
INA ZKLN 3062.2RS axial angular contact ball bearing with 60° contact angle, sealed design, and high axial load capacity for precision industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA ZKLN 3062.2RS Axial Angular Contact Ball Bearing
The INA ZKLN 3062.2RS axial angular contact ball bearing is designed for high axial load capacity and precise guidance in demanding mechanical and motion control applications. Manufactured by INA / Schaeffler, this bearing provides excellent rigidity, reliability, and long service life.
Manufacturer: INA / Schaeffler
Type: Axial Angular Contact Ball Bearing
Model: ZKLN 3062.2RS
Replaces: ZKLN3062-2RS-XL, ZKLN3062-2RS
| Bore Diameter (d) | 30 mm |
| Outer Diameter (D) | 62 mm |
| Width (B) | 28 mm |
| Contact Angle | 60° |
| Dynamic Load Rating (Cr) | 29,000 N |
| Static Load Rating (C0r) | 64,000 N |
| Fatigue Load Limit (Axial) | 2,900 N |
| Limiting Speed (Grease Lubrication) | 5,000 rpm |
| Thermally Safe Operating Speed | 2,200 rpm |
| Sealing | 2RS “ Contact lip seal on both sides |
| Operating Temperature | -30 / +120 °C |
