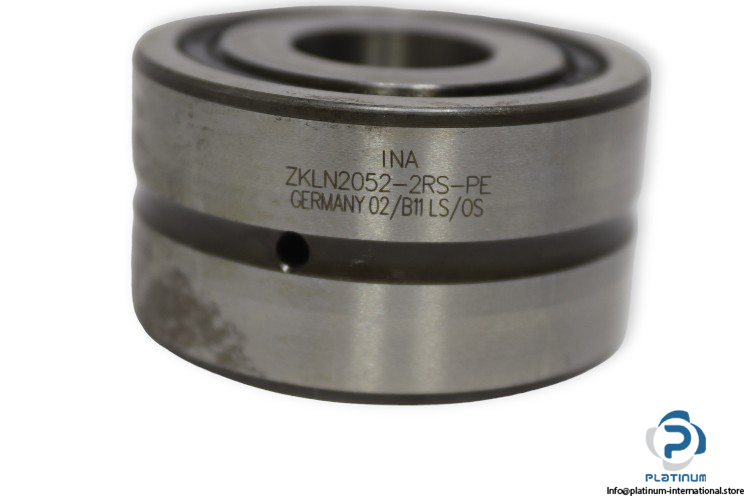

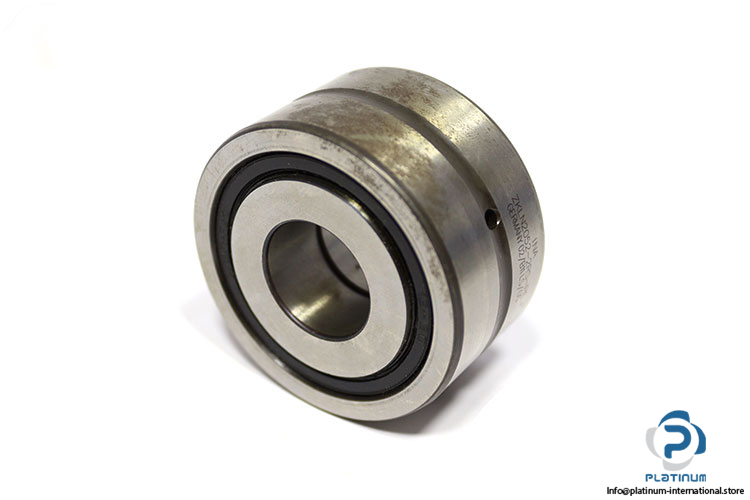

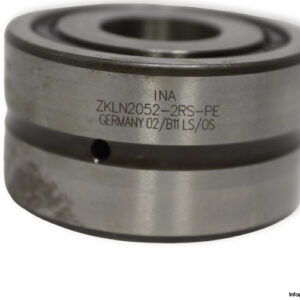

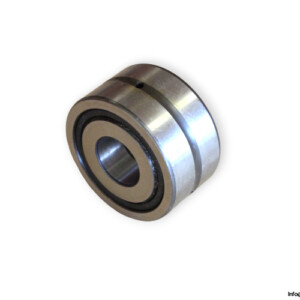

INA ZKLN2052-2RS-PE Axial Angular Contact Ball Bearing

Manufacturer: Schaeffler INA
Type: Axial Angular Contact Ball Bearing
Model: ZKLN 2052.2RS PE

Dimensions
Bore Diameter d: 20 mm
Outer diameter D: 52 mm
Width B: 28 mm
Chamfer r_min: 0.6 mm
Contact angle α: 60 °
Basic load ratings:
Dynamic C_r: 26000 N
Static C_0r: 47000 N
Fatigue load limit, axial: 2130 N
Limiting speed for grease lubrication: 6600 rpm
Thermally safe operating speed: 3000 rpm
Sealing: 2RS, Contact lip seal on both side
Tolerance class: PE; Less stringent bearing design
Operating Temperature: -30 … +120 °
