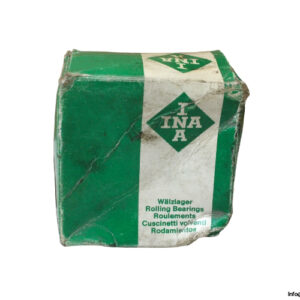

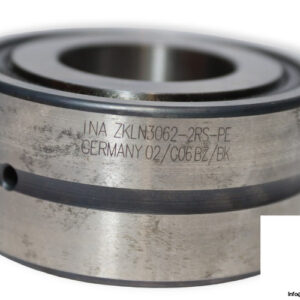

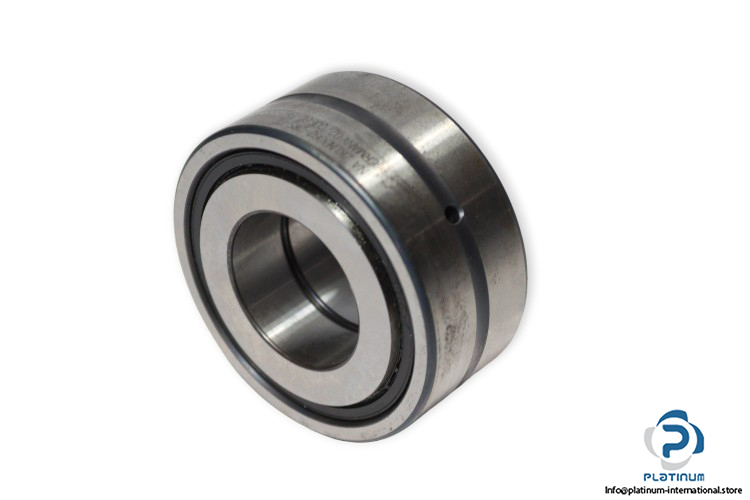

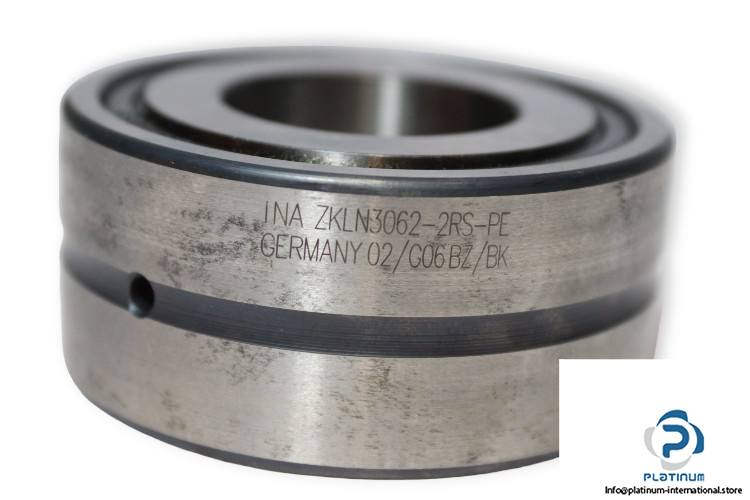

INA ZKLN3062-2RS-PE Axial Angular Contact Ball Bearing

Manufacturer: Schaeffler INA
Type: Axial Angular Contact Ball Bearing
Model: ZKLN 3062 2RS PE
Replaces: ZKLN 3062.2RS PE

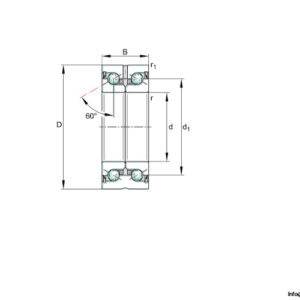

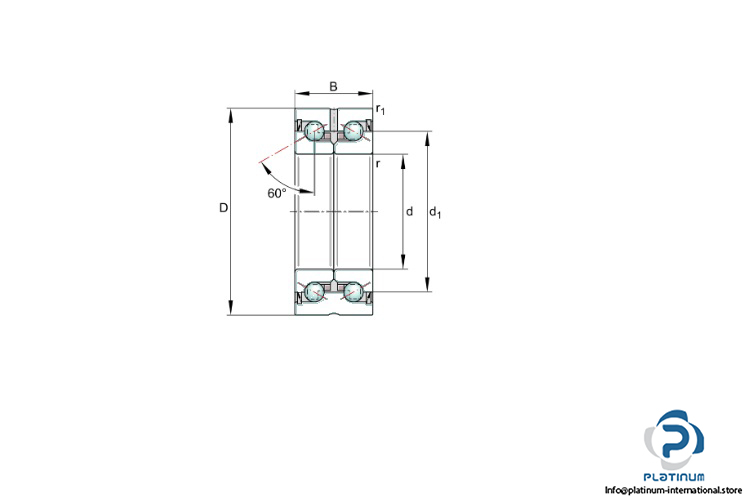

Dimensions:
Bore Diameter d: 30 mm
Outer diameter D: 62 mm
Width B: 28 mm
Contact angle α: 60 °
Basic load ratings:
Dynamic C_r: 29000 N
Static C_0r: 64000 N
Fatigue load limit, axial: 2900 N
Limiting speed for grease lubrication: 5000 rpm
Thermally safe operating speed: 2200 rpm
Sealing: 2RS, Contact lip seal on both side
Tolerance class: PE, less stringent bearing design
Operating Temperature: -30 … +120 °C
