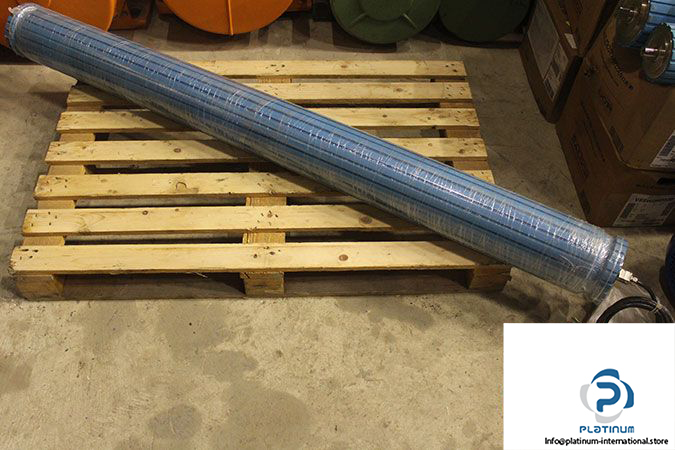

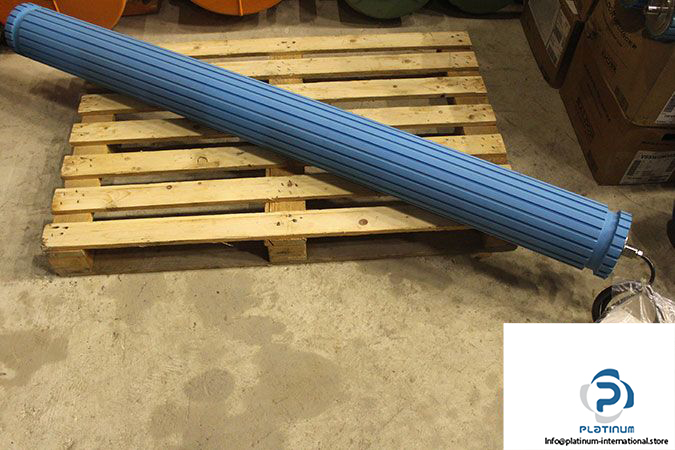

INTERROLL 138I DRUM MOTOR 1800 mm

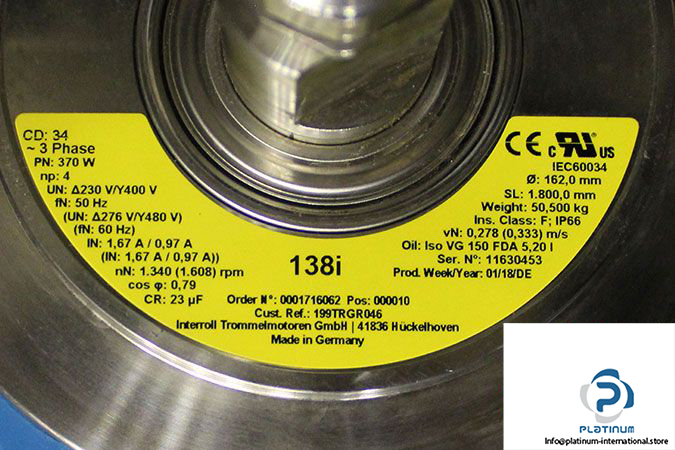

Manufacturer: Interroll

Type: Drum Motors

Model: 138 i

Serial Number: 11630456

Phase: 3

Motor Type: Asynchronous Squirrel Cage Motor

Circumferential Speed of Drum Tube [m/s]: 0.333

Drum Tube Diameter [Ø]: 162.0 mm

Drum Width [SL]: 1800.0 mm

Rated Power [kW]: 370

Frequency [Hz]: 50 / 60

Rated Voltage at 50Hz [V]: 230/400 Delta/Star

Rated Current [A]: 1.67/0.97

Rated Speed [rpm]: 1340

Rated Voltage at 60Hz [V]: 276/480 Delta/Star

Rated Current [A]: 1.67/0.97

Rated Speed [rpm]: 1608

Power Factor: 0.79

Running Capacitor [µF]: 23

Number of Poles: 4

Oil Type: Iso VG 150 FDA

Oil Quantity [L]: 5.2

Protection Class [IP]: 66

Insulation Class: F

Weight [kg]: 69.5
