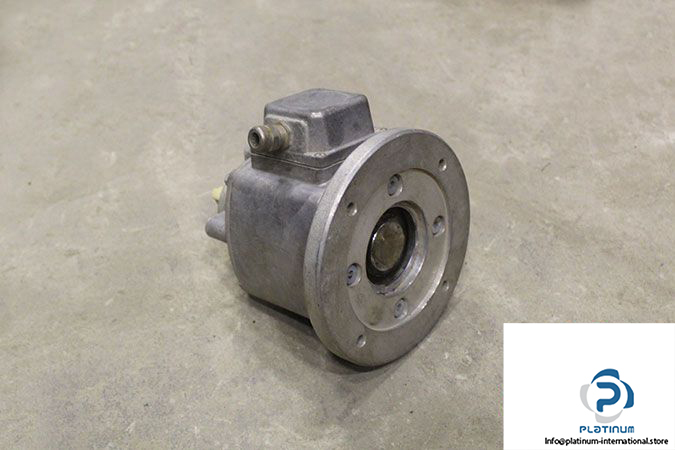

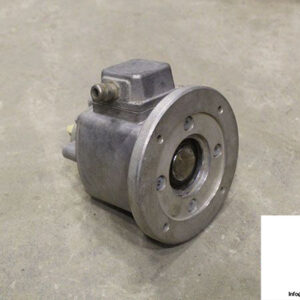

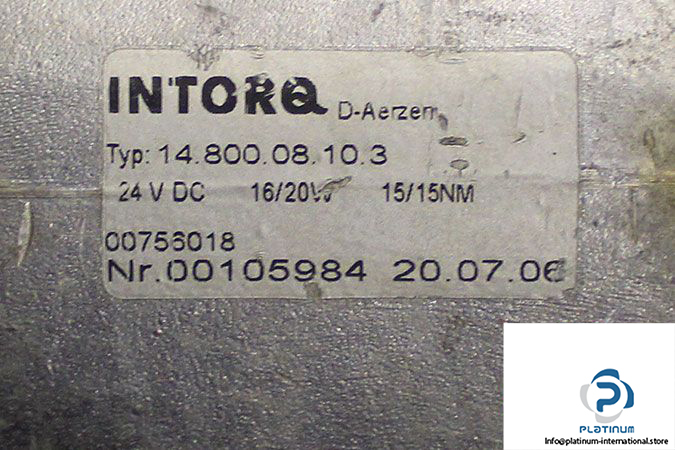

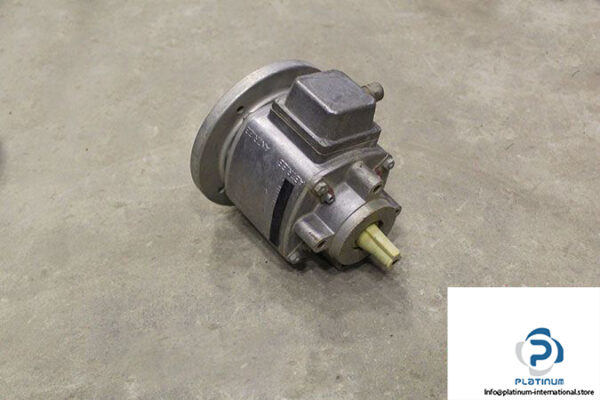

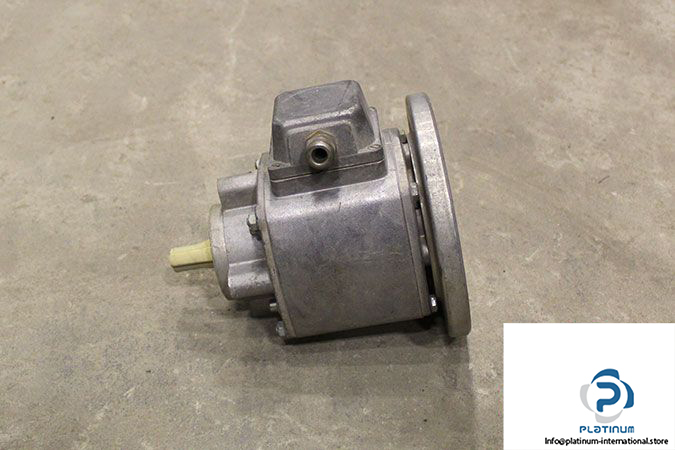

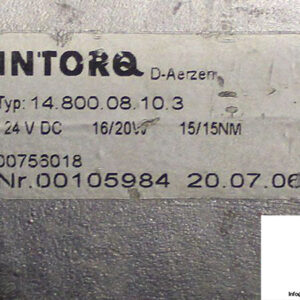

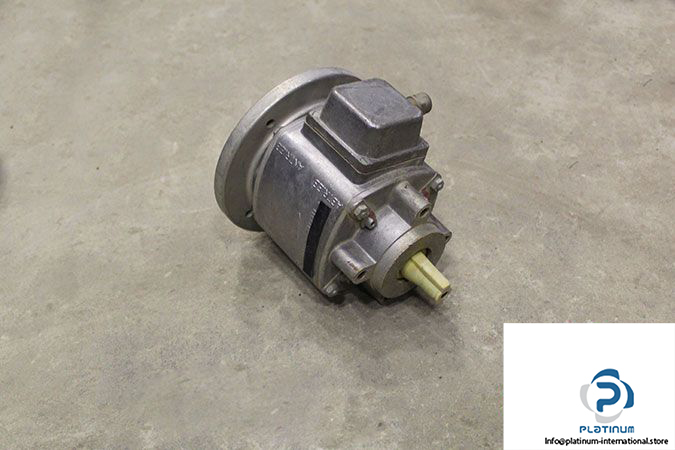

Intorq 14.800.08 10.3 Clutch Brake
Manufacturer: Intorq
Type: Clutch Brake
Model: 1480008103
Size: 08
Output-End Version: 10
Drive-End Version: 3
Rated Voltage: 24 VDC
Torque Clutch: 15 Nm
Torque Brake: 15 Nm
Power Clutch: 20 W
Power Brake: 16 W
Max. Speed: 3000 rpm
Max. Permissible Switching Energy: 6 x 103 J
Shaft Diameter: 14 mm
Flange Diameter: 160 mm
Weight : 5.14
