ISB KBF 25 PP Linear Ball Bushing
New
In stock1 unitReady to ship
Linear Ball Bushing
The ISB KBF25PP Linear Ball Bushing features a 25 mm bore diameter, 40 mm outer diameter, and 1000 N dynamic load capacity, ensuring precise and reliable motion for linear applications with dual seals for protection.10002540BallboreBushingdiameterDynamichigh-loadIndustrialISBKBF25PPLinearLoadmmMotionNOuterPPRatingSealsWith
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

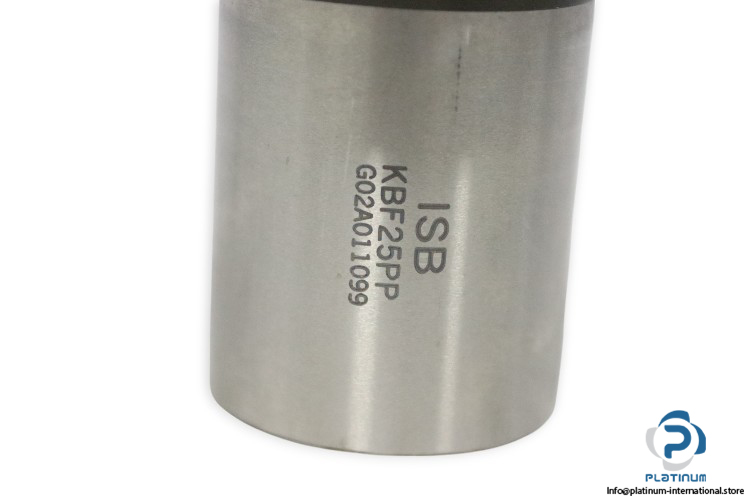

ISB KBF25PP Linear Ball Bushing
The ISB KBF25PP Linear Ball Bushing is designed for high precision and durability, offering smooth and reliable motion in a wide range of industrial applications. Featuring 6 ball rows and dual-side seals, it ensures optimal performance under load conditions.
Manufacturer: ISB
Type: LINEAR BALL BUSHING
Model: KBF25PP
Basic Load Rating:
This ISB linear ball bushing is engineered to deliver reliable, long-lasting performance, providing precise and smooth motion for linear guide applications with high load capacities.

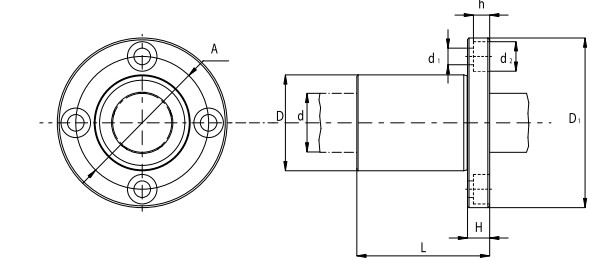

| Number of Ball Rows | 6 |
| Bore Diameter (d) | 25 mm |
| Outer Diameter (D) | 40 mm |
| D1 | 62 mm |
| H | 8 mm |
| A | 51 mm |
| Length | 58 mm |
| d1xd2xh | 5.5 x 9.5 x 5.4 mm |
| Dynamic Load Rating | 1000 N |
| Static Load Rating | 1600 N |
| Sealing | PP, Seals on Both Sides |
