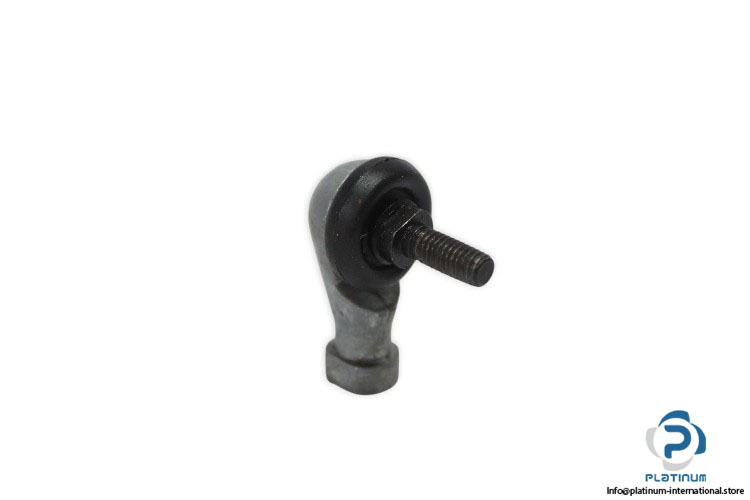

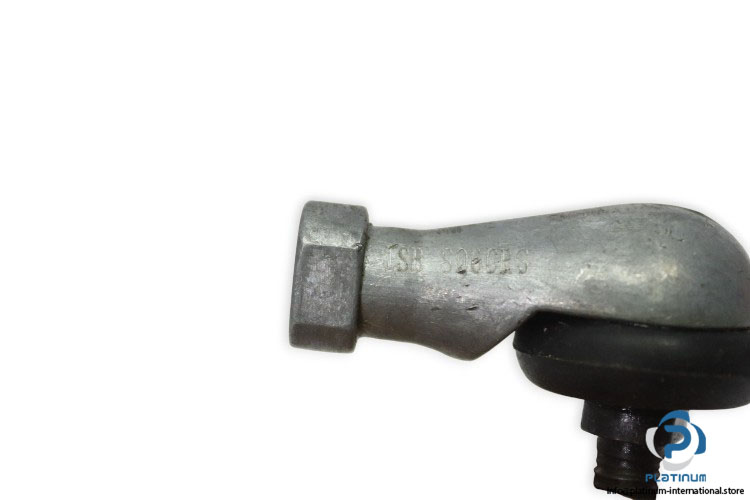

ISB SQ 6 C RS Winding Shape Ball Joint Rod End
The ISB SQ 6 C RS is a precision-engineered winding shape ball joint rod end designed to provide smooth motion, durability, and reliable mechanical connection in demanding applications.
Manufacturer: ISB
Type: Winding Shape Ball Joint Rod End
Model: SQ 6 C RS

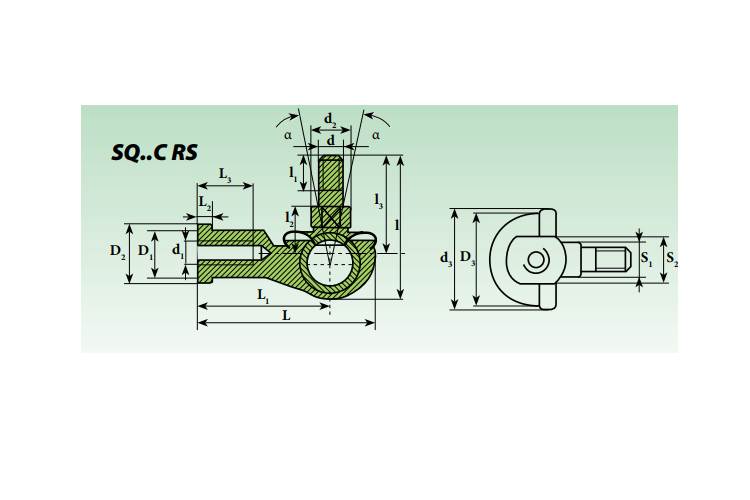

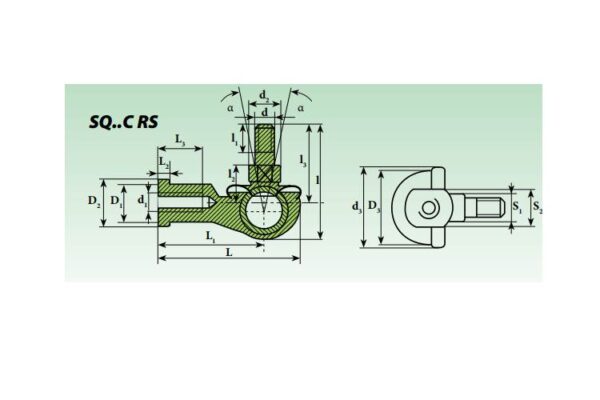

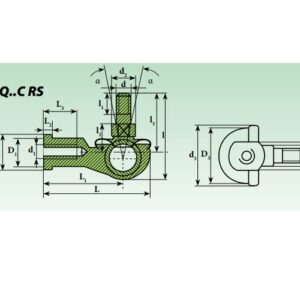

| Internal Diameter (d) | 6 mm |
| Outer Diameter (D3) | 19 mm |
| L | 40 mm |
| d2 | 10 mm |
| d3 | 20 mm |
| D1 | 10 mm |
| D2 | 13 mm |
| L1 | 30 mm |
| L2 | 5 mm |
| L3 | 14 mm |
| S1 | 8 mm |
| S2 | 11 mm |
| Thread | M6x1 |
| Dynamic Load Rating (C) | 3.6 kN |
| Static Load Rating (C0) | 12 kN |
