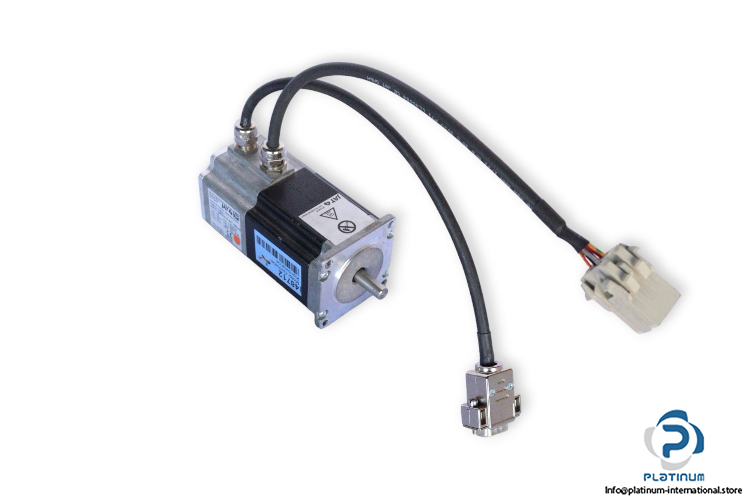

JAT 23S31-0650-805J7-MP053-9-15-55(30) Stepper Motor
New
In stock1 unitReady to ship
2-Phase Stepper Motor
The JAT 23S31-0650-805J7-MP053-9-15-55(30) 2-phase stepper motor provides reliable performance with 70W continuous power, 1000 rpm speed, and IP65 protection, making it ideal for industrial applications requiring precision and durability.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
JAT 2-Phase Stepper Motor 23S31-0650-805J7-MP053-9-15-55(30)
The JAT 23S31-0650-805J7-MP053-9-15-55(30) 2-phase stepper motor is designed for high-performance applications, offering a wide range of continuous and peak torque capabilities. With its IP65 protection class, it is ideal for environments requiring durability and efficiency in motor-driven systems.

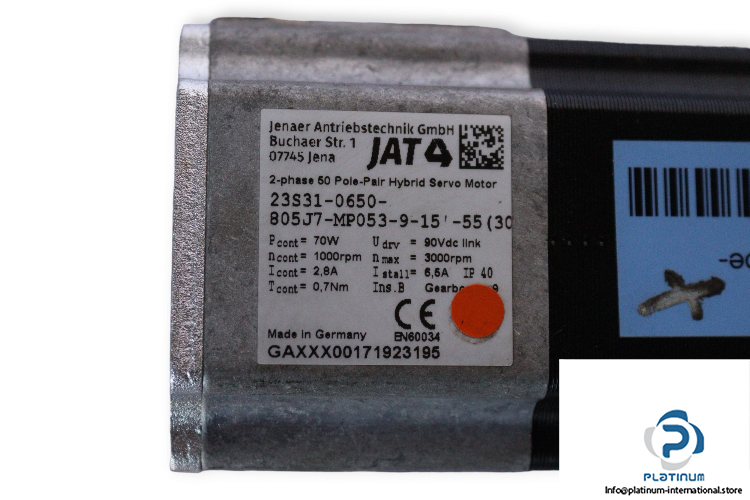

Manufacturer: JAT
Type: 2-Phase Stepper Motor
Model: 23S31-0650-805J7-MP053-9-15-55(30)
Part No.: GAXXX00171923195
Ref No.: EN60034
Technical Data:
- Flange: 56.4 mm
- Shaft Diameter: 8 mm
- Motor Length: 109 mm
- Continuous Power: 70 W
- Continuous Speed: 1000 rpm
- Continuous Current: 2.8 A
- Continuous Torque: 0.7 Nm
- Stall Current: 6.5 A
- Stall Torque: 1.88 Nm
- Peak Torque: 2.13 Nm
- Peak Current: 8.5 Arms
- Maximum Speed: 3000 rpm
- Max. DC Link Voltage: 90 VDC
- Number of Pole Pairs: 50
- Number of Motor Phases: 2
- Motor Inertia without Brake: 0.046 kgm² x 10-3
- Ambient Temperature: 20 to +40 °C
- Insulation Class: B, 130°
- Protection Class: IP65
- Encoder Type: 5J, Incremental Encoder 8,000 inc/rev
