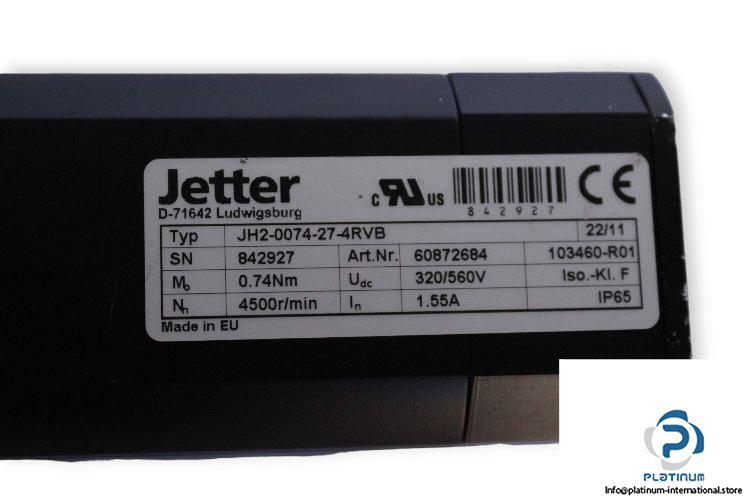

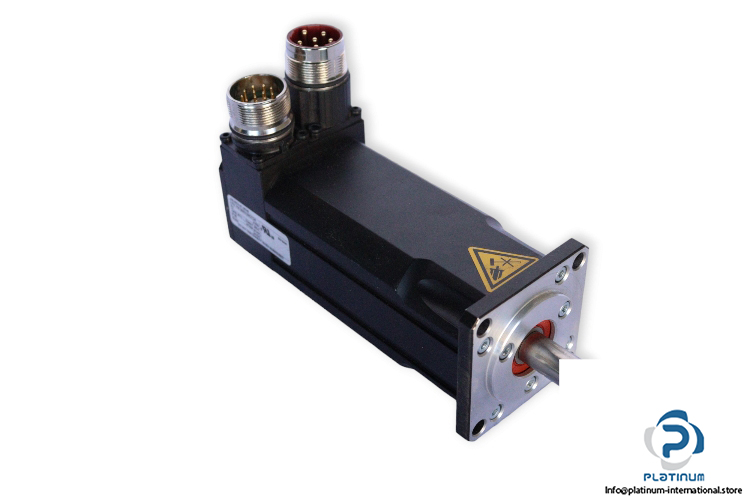

Jetter JH2-0074-27-4RVB Servomotor

Manufacturer: JETTER

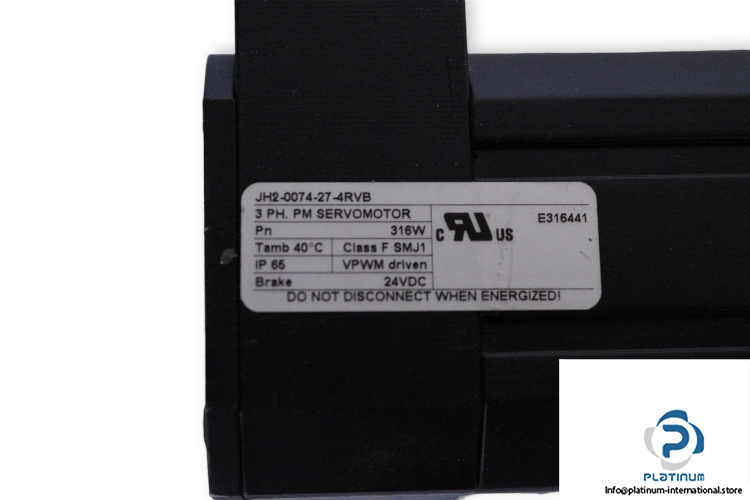

Type: 3 PH PM SERVOMOTOR
Model: JH2-0074-27-4RVB
Art. No: 60872684
SN: 842927

Continuous stall torque M₀: 0.74 Nm
Continuous stall current I₀: 1.66 A
Back EMF constant K_E: 27 V/kRPM
Torque constant K_T: 0.45 Nm/A
Number of motor poles: 6
Rated torque M_n: 0.67 Nm
Rated Current I_n: 1.55 A
Rated speed n_n: 4500 rpm
Rated Power P_n: 316 W
DC link voltage: 320/560 V DC
Max. torque M_max: 2.8 Nm
Max. current I_max: 6.7 A
Max. speed n_max: 12000 rpm
Rotor inertia: 0.10 kgxcm²
Protection class: IP65
Thermal Class: F
ambient temperature: 40 °C
Supply voltage U_Br: 24 VDC
Holding torque M_Br: 2 Nm
Rated power P_BR: 11 W
Rotor inertia J_Br: 0.068 kgxcm²
