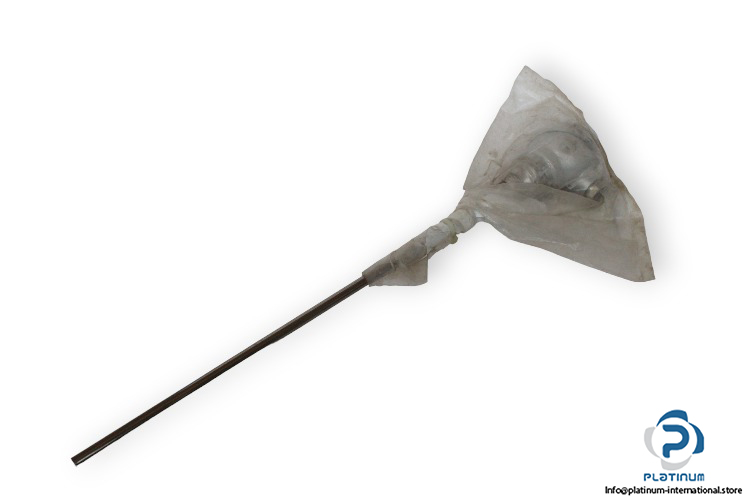

Jumo 902030/10-402-1003 RTD Temperature Probe

Manufacture: Jumo
Type: RTD Temperature Probe
Model: 902030/104021003

Terminal head: Form J, die-cast aluminum
Process connection: thread, stainless steel
Protection tube: Stainless steel
Measuring insert: Pt100
Response times: t0.5 = 5 sec, t0.9 = 14 sec, in water 0.4 m/sec, 6 mm dia
Terminal: Screw-in RTD temperature probes with continuous sheath
Transmitter: Analog transmitter, output 4 … 20 mA
Measuring insert: 1x Pt100 in 2-wire circuit
Operating temperature: -50 … 400°C
