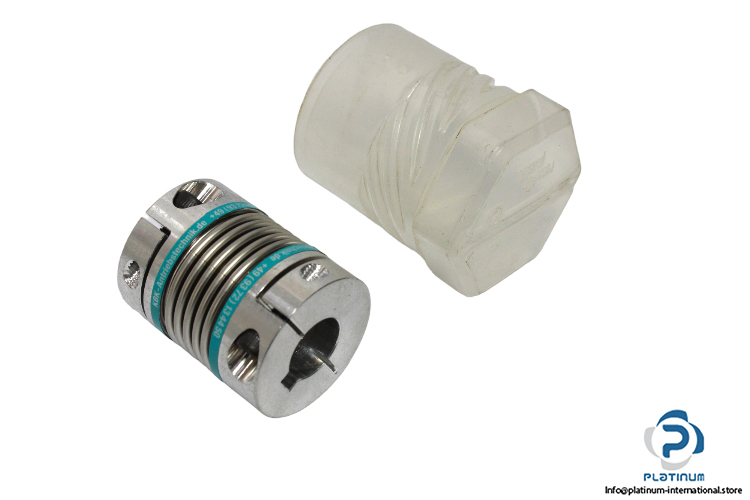

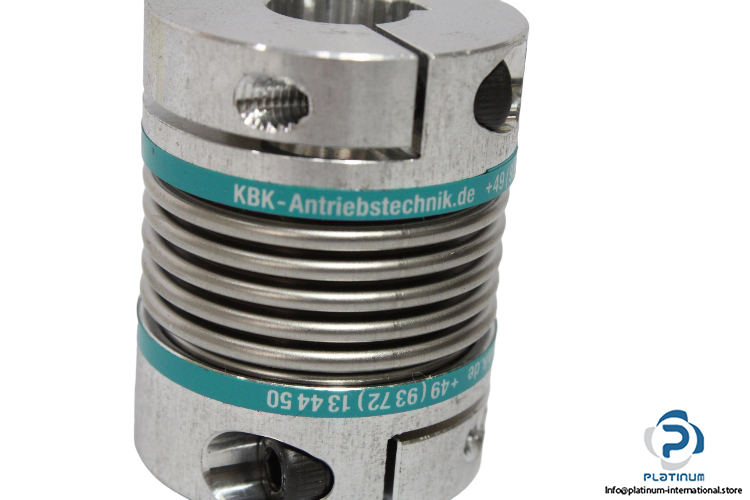

Name: KBK KB2/45-41-12-14 BELLOWS COUPLING
SKU: 1002386
Availability: LimitedAvailability

Manufacturer: KBK

Type: Bellows Coupling

Model: KB2/45-41-12-14

Art No.: N/A

MNR.: N/A

Size: 45

Material: Aluminum

Bore diameter d1/ d2: 12 mm/ 14 mm

Outer diameter: 32.5 mm

Total length: 41 mm

Torque: 4.5 Nm

Torsional stiffness: 6500 Nm/rad

Radial spring stiffness: 168 N/mm

Axial spring stiffness: 32 N/mm

Shaft Fastening Method: Clamping hubs with keyway

Specification	Value
Weight	0,065 kg
Condition	New
Part No.	N/A
Shelf No.	230308
Size	45
Material	Aluminum
Length [mm]	41
Bore Diameter d1/d2 [mm]	12 / 14
Outer Diameter [mm]	32.5
Total length	41 mm
Torque [Nm]	4.5
Torsional Stiffness [Nm/rad]	6500
Radial Spring Stiffness [N/mm]	168
Axial Spring Stiffness [N/mm]	32
Shaft Fastening Method	Clamping Hubs with Keyway

Price	On Request
Stock	4 In stock
Category	Couplings
Condition	New
SKU	1002386

Weight	0,065 kg
Condition	New
Part No.	N/A
Shelf No.	230308
Size	45
Material	Aluminum
Length [mm]	41
Bore Diameter d1/d2 [mm]	12 / 14
Outer Diameter [mm]	32.5
Total length	41 mm
Torque [Nm]	4.5
Torsional Stiffness [Nm/rad]	6500
Radial Spring Stiffness [N/mm]	168
Axial Spring Stiffness [N/mm]	32
Shaft Fastening Method	Clamping Hubs with Keyway

KBK KB2/45-41-12-14 Bellows Coupling
