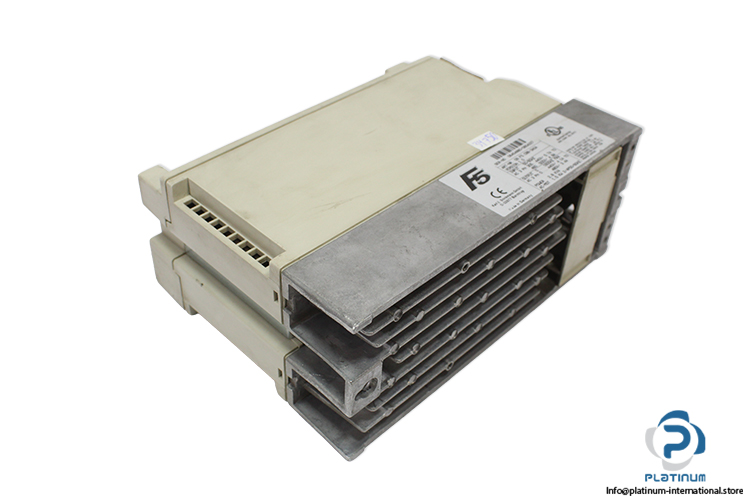

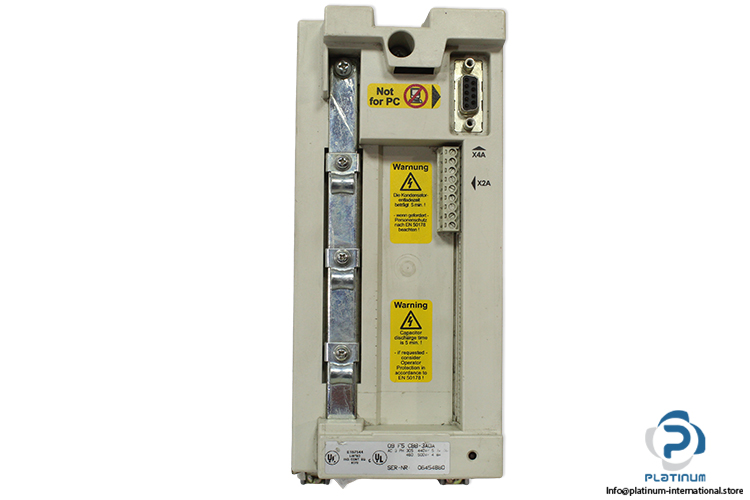

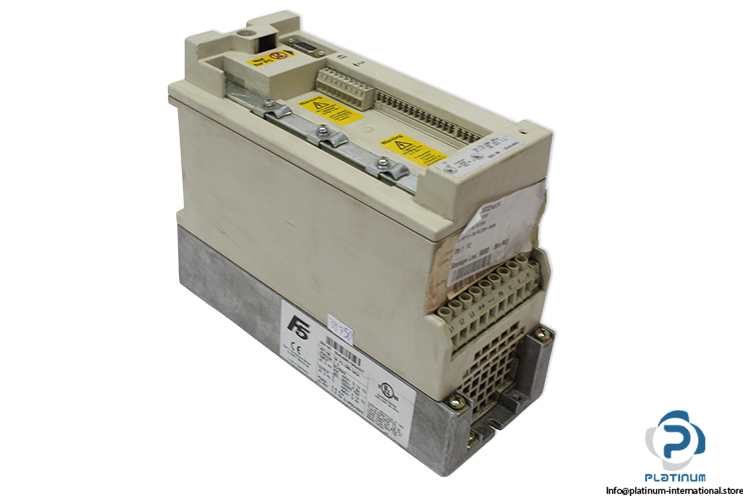

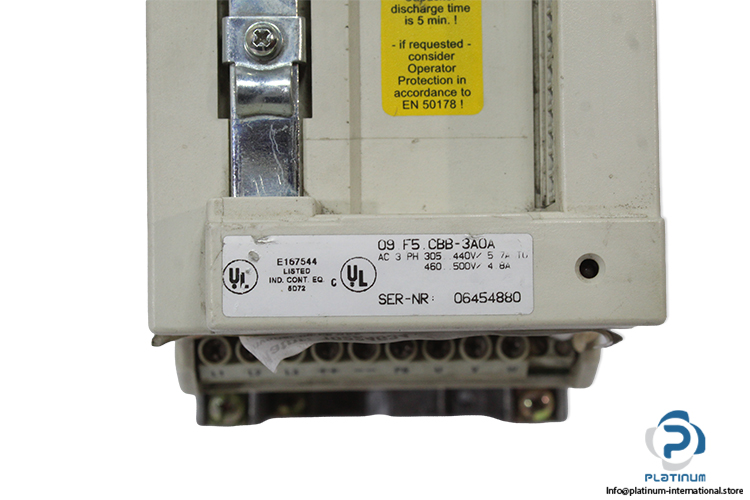

KEB 09.F5.CBB-3A0A Frequency Inverter Drive
Used
In stock2 unitsReady to ship
599,99$
Frequency Inverter Drive
KEB F5 series frequency inverter drive for three-phase motor control, rated at 1.5 kW, featuring wide voltage range, high output frequency, and reliable industrial performance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
KEB 09F5CBB3A0A Frequency Inverter Drive
The KEB F5 series frequency inverter drive is designed for precise motor speed and torque control in industrial automation systems. It supports a wide input voltage range, high output frequency capability, and reliable performance for demanding drive applications.

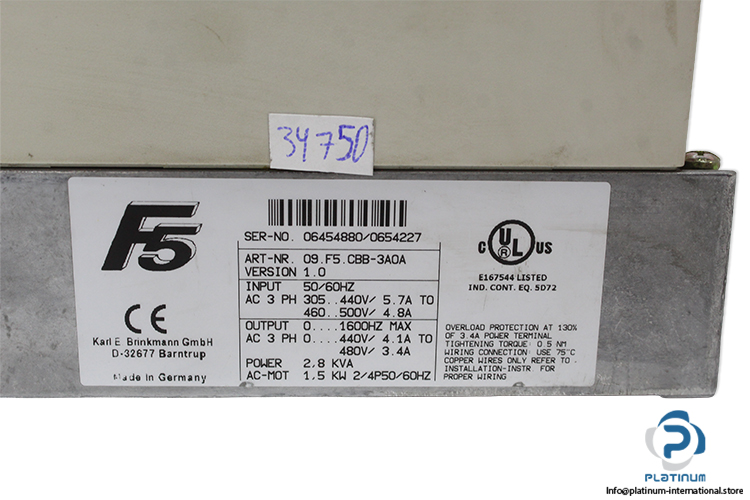

Manufacturer: KEB
Type: Frequency Inverter Drive
Model: 09.F5.CBB-3A0A
Version: 1.0
Serial No.: 06454880 / 0654227
Series: F5
| Input Supply Voltage | 3-Phase 305 / 440 / 460 / 500 V AC |
| Input Rated Current | 5.9 / 4.8 A |
| Input Frequency | 50 / 60 Hz |
| Output Rated Voltage | 3-Phase 0 / 440 / 480 V AC |
| Output Rated Current | 4.1 / 3.4 A |
| Output Frequency | 0 / 1600 Hz |
| Power Rating | 2.8 kVA |
| Motor Power | 1.5 kW |
| Protection Class | IP20 |
| Operating Temperature | -10 / 45 °C |
| Dimensions (H x W x D) | 220 x 90 x 160 mm |
