Keyence PZ-M62P Built-IN Amplifier Photoelectric Sensor
New
In stock2 unitsReady to ship
Photoelectric Sensor KEYENCE PZ-M62P retro-reflective photoelectric sensor with built-in amplifier, PNP output, 0.1 to 1.5 m sensing distance, and IP67 protection for industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| series | PZ-M |
| Ref no | T52649A,031M62P,OOHB2631 |
| Output | PNP |

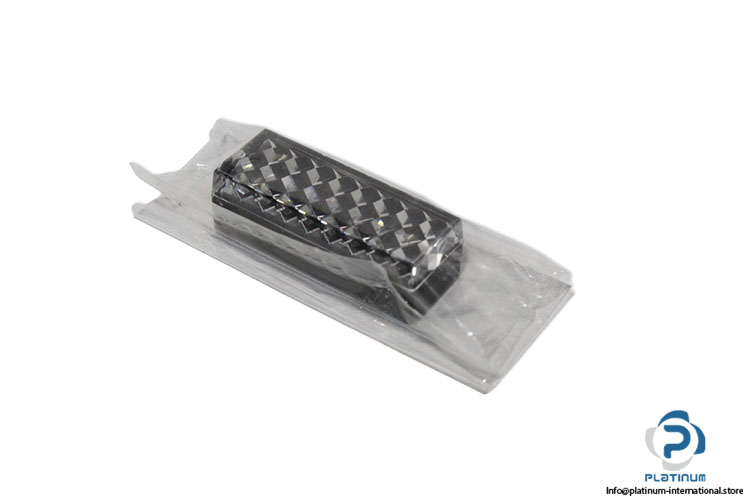

| Detecting distance | 0.1 to 1.5 m*1 (when reflector R-5 is used)*2 |
| Light source. | Red LED |
| Sensitivity adjustment | 1-turn trimmer (230°) |
| Response time | 1 ms max. |
| Operation mode | LIGHT-ON/DARK-ON (switch-selectable) |
| Indicator lamp,Output | orange LED, stable operation: green LED |
| Control output | Maximum PNP open-collector output: 100 mA (26.4 V or less), residual voltage: 1 V or less |
| Protection circuit | Reversed polarity, overcurrent protection, surge absorber |
| Power voltage | 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less |
| Power consumption | 34 mA max. |
| Enclosure rating | IP67 |
| Ambient light | Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max. |
| Ambient temperature | -20 to +55 °C -4 to 131 °F (No freezing) |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
| Shock resistance | 1,000 m/s2, 6 times in each of the X, Y, and Z directions |
| Case material | Glass-fiber reinforced plastic |

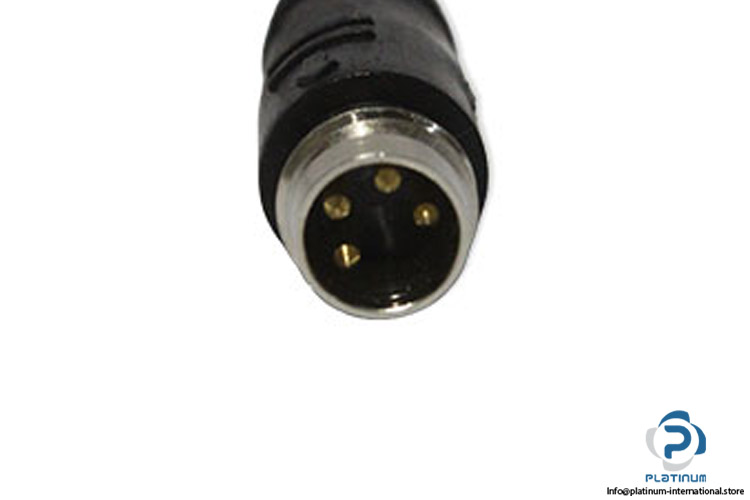

| Connection | cable,4-pins |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100919 |
| Weight | 0,04 |
