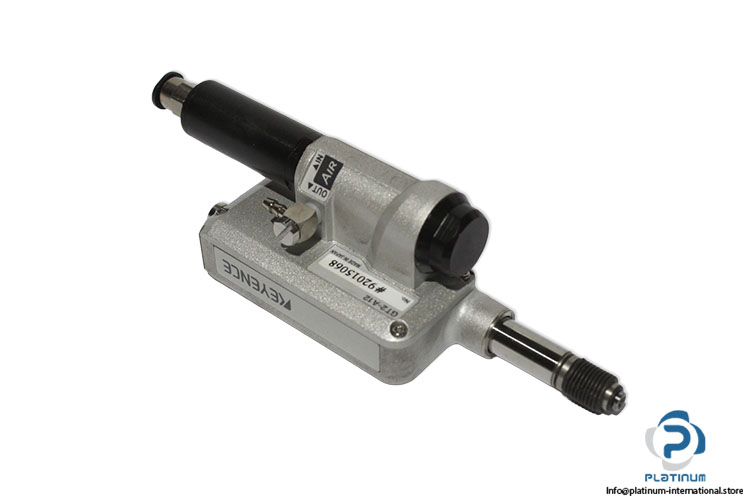

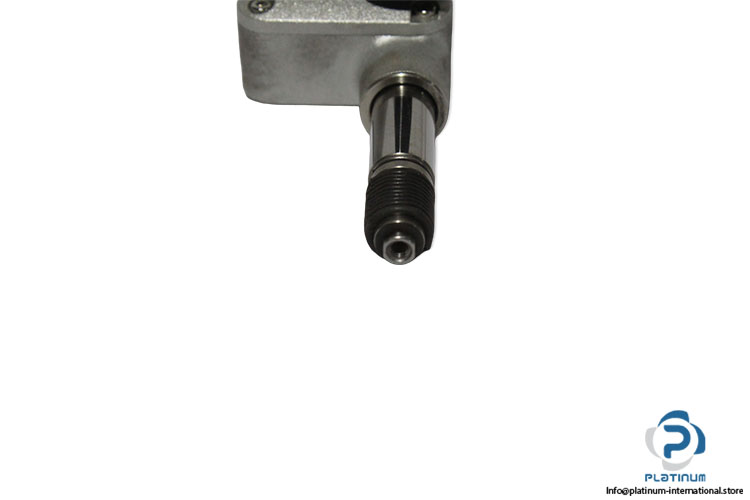

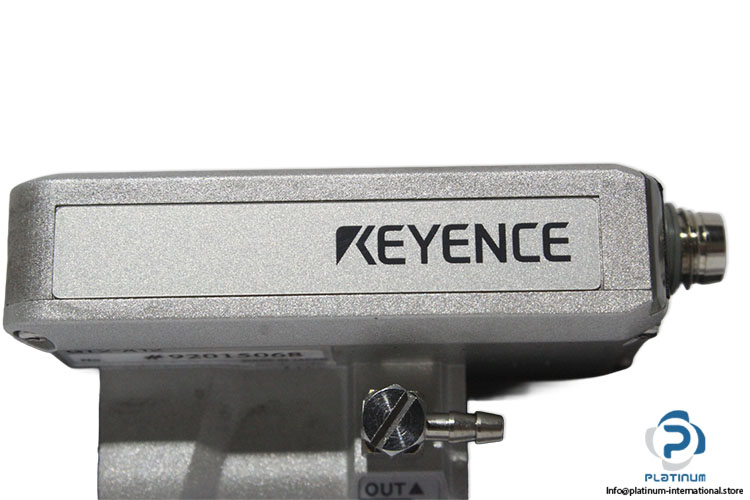

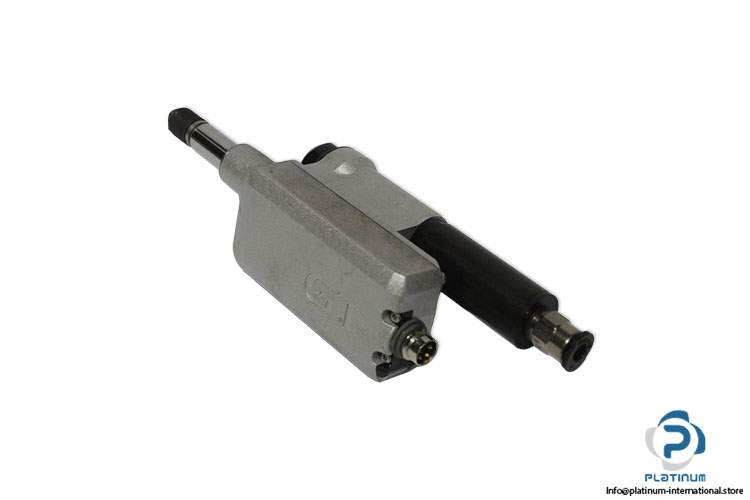

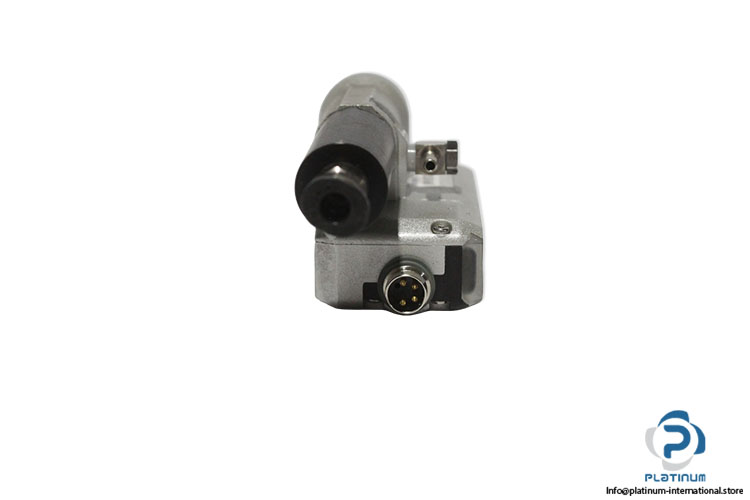

KEYENCE GT2-A12 High-Accuracy Digital Contact Sensor Head
New
In stock3 unitsReady to ship
Digital Contact Sensor Head KEYENCE high-accuracy digital contact sensor head with 12 mm measuring range, 0.5 µm resolution, absolute detection system, and IP67 protection for precise industrial measurement.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| series | GT2 |

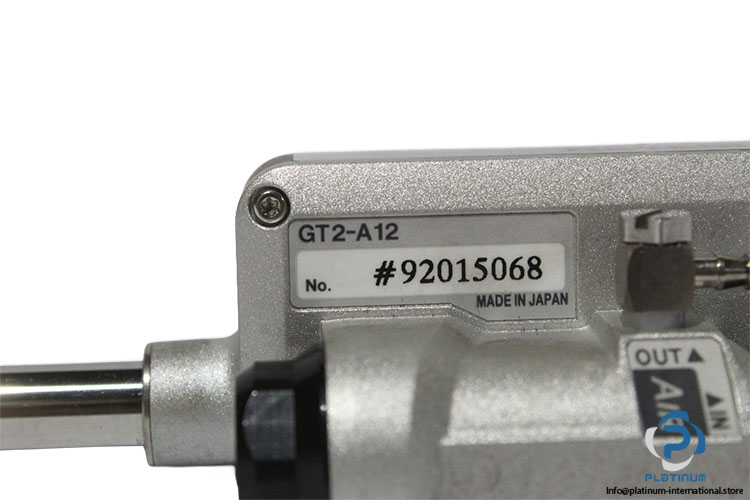

| Ref No | 92015068 |
| Detection system | Quartz glass scale, CMOS image sensor projection system, Absolute type (without tracking error) |
| Measuring range | 12 mm |
| Resolution | 0.5 microm 0.02 Mil |
| Indicated accuracy | 2 µm 0.08 Mil (p-p) |
| Measuring force,Downward mounting | 1.2 N |
| Side mounting | 1.1 N |
| Upward mounting | 1.0 N |
| Sampling cycle | 1 ms |
| Fluid used | Dry air |
| Operation indicator light | 2-color LED (red, green) |
| Enclosure rating | IP67 |
| Pressure resistance | 1 MPa |
| Applied pressure range | 0.25 to 0.5 MPa |
| Ambient temperature | 0 to +55 °C 32 to 131 °F (No freezing) |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
| Shock resistance | 1,000 m/s2 (IEC60068-2-27) |
| Main body case | Zinc die-casting; Cylinder part: Aluminium alloy;Air joint resin part: Polyacetal; Air joint metal part: Brass nickel plating; Indicator: Polyarylate |
| Dust boot | NBR |
| Contact | TYPE304, 440C Stainless steel*4 |
| Sensor head cable | Optional (connect to the M8 connector) |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100922 |
| Weight | 0,23 |
