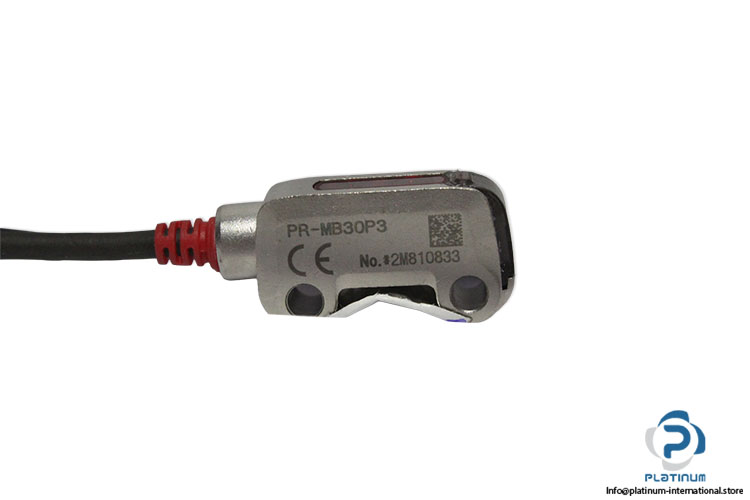

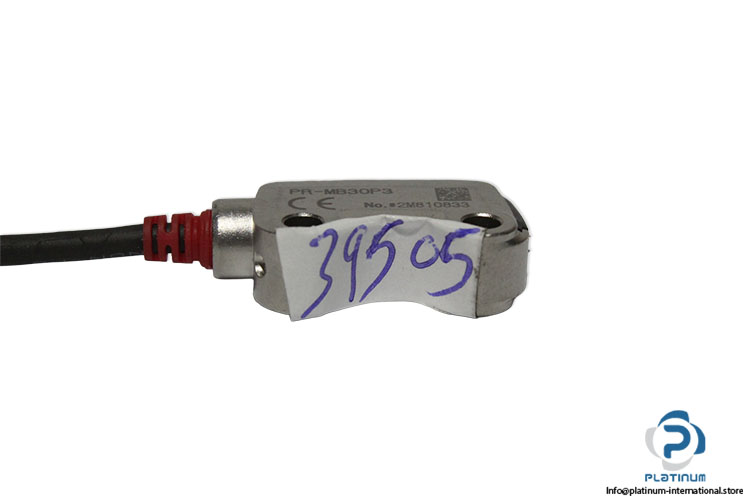

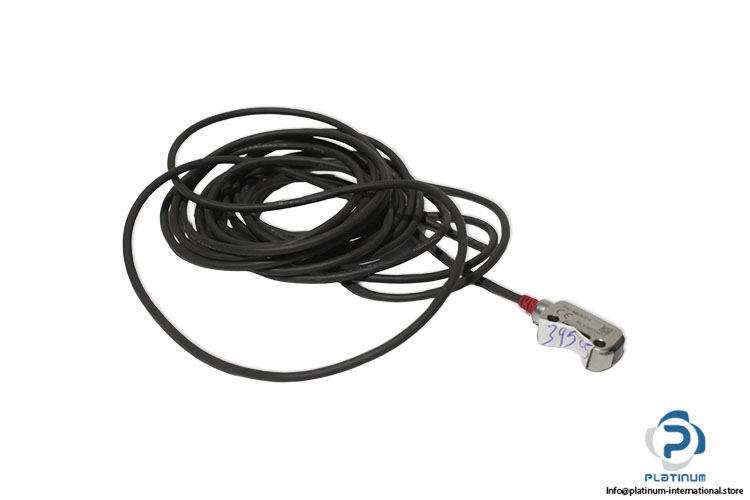

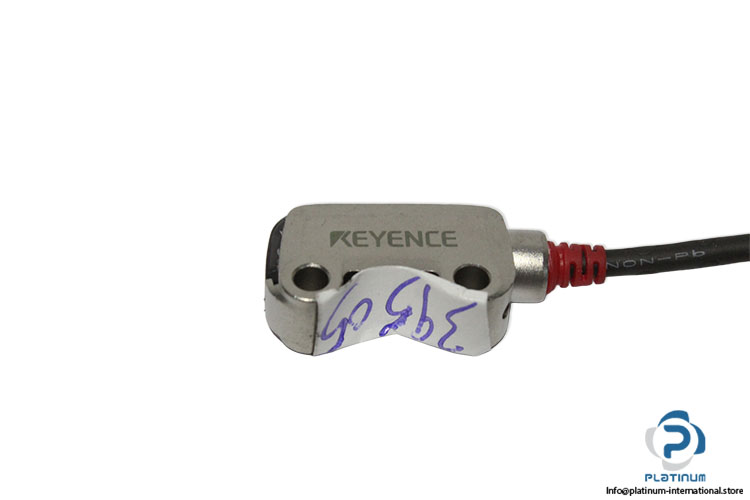

KEYENCE PR-MB30P3 Mini-Slim Reflective Sensor
| Ref No | 2M810833 |
| Output | PNP |
| Shape | Mini-slim |
| Cable connection | 3 m cable |
| Detection distance | 1 to 30 mm |
| Number of control outputs | 2 outputs |
| Output 1 | Light-ON |
| Output 2 | Dark-ON |
| Response time,Output 1 | 0.5 ms |
| Response time,Output 2 | ON?OFF: 2.7 ms, OFF?ON: 0.5 ms |
| Spot diameter | Approx. ø5.5 mm (at 30 mm) |
| Light source | 4 element, point light source, red LED (650 nm) |
| Mutual interference prevention function | 4 sensors |
| Indicator lamp | Output indicator (orange), stable operation indicator (green), thrubeam type transmitter: power supply indicator (green) |
| Control output | 30 VDC or lower, 50 mA or lower |
| Leakage current | When 3 k? load resistance, 0.3 mA or lower. When 1 k? load resistance, 0.5 mA or lower. When 0.2 k? load resistance, 1.5 mA or lower |
| Residual voltage | When 10 mA or lower, 1.0 V or lower. When 10 to 30 mA, 1.5 V or lower. When 30 to 50 mA, 2.0 V or lower. |
| Power voltage | 10 to 30 VDC, including Ripple (P-P) 10 % |
| Current consumption | 19 mA |
| Enclosure rating | IP67 (IEC60529), IP69K (DIN40050-9), 4X, 6P, 13 (NEMA250) |
| Insulation resistance | 20 M? or higher (500 VDC) |
| Incandescent lamp | 5,000 lux or lower, Sunlight: 20,000 lux or lower |
| Ambient temperature | -25 to +55 °C |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Withstand voltage | 1,000 VAC, 50/60 Hz, 1 min |
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
| Shock resistance | 1,000 m/s2, 6 times in each of the X, Y, and Z directions |
| Material | Case: SUS316L, indicator cover/lens cover: polysulfone, |
| cord protector | polymethylpentene, filler: polyester-based resin |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100926 |
| Weight | 0,04 |
