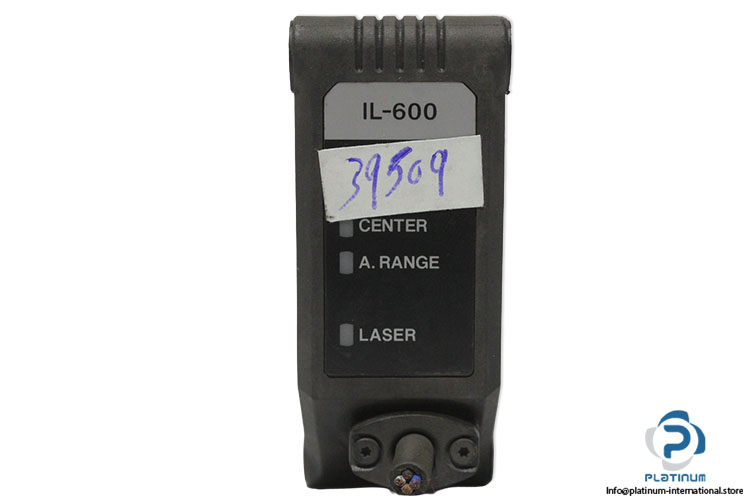

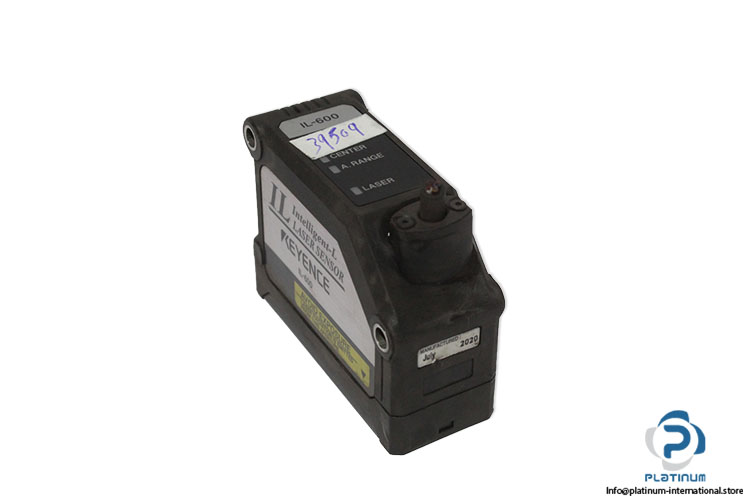

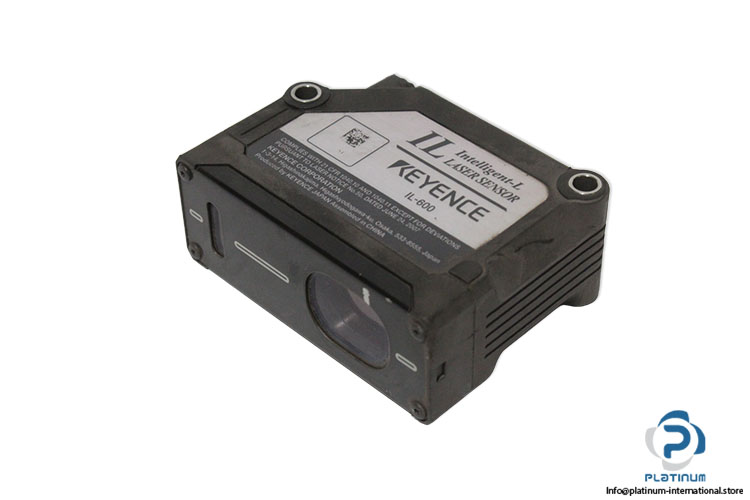

KEYENCE IL-600 Sensor Head
| Series | IL (Intelligent-Laser Sensor) |
| Reference distance | 600 mm |
| Measurement range | 200 to 1000 mm |
| Light source Type | Red semiconductor laser, wavelength: 655 nm (visible light) |
| Laser class | Class 2 (FDA (CDRH) Part1040.10 |
| Output | 560 µW |
| Spot diameter (at standard distance) | Approx. ø1.6 mm |
| Repeatability | 50 µm |
| Sampling rate | 0.33/1/2/5 ms (4 levels available) |
| Operation status indicators | Laser emission warning indicator: Green LED, Analog range indicator: Orange LED, Reference distance indicator: Red/Green LED |
| Temperature characteristics | 0.08% of F.S./°C |
| Enclosure rating | IP67 |
| Pollution degree | 3 |
| Ambient light | Incandescent lamp: 5,000 lux |
| Ambient temperature | -10 to +50 °C |
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
| Material | Housing material: PBT, Metal parts: SUS304, Packing: NBR, Lens cover: Glass, Cable: PVC |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1100930 |
| Weight | 0,11 |
