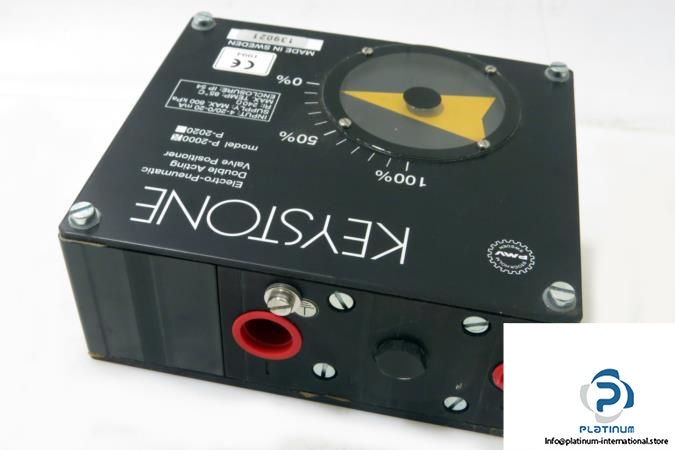

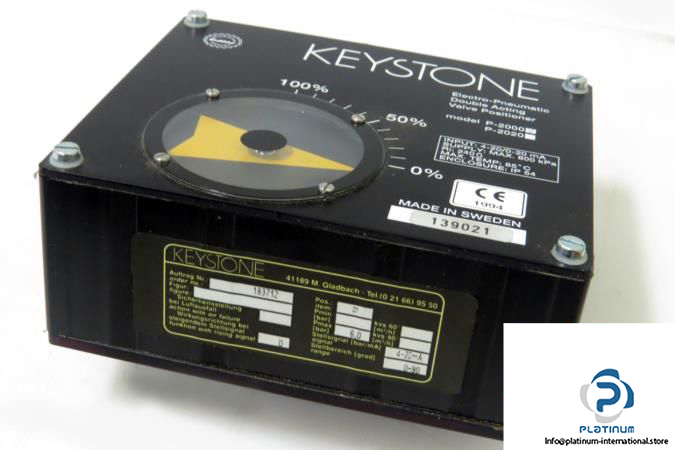

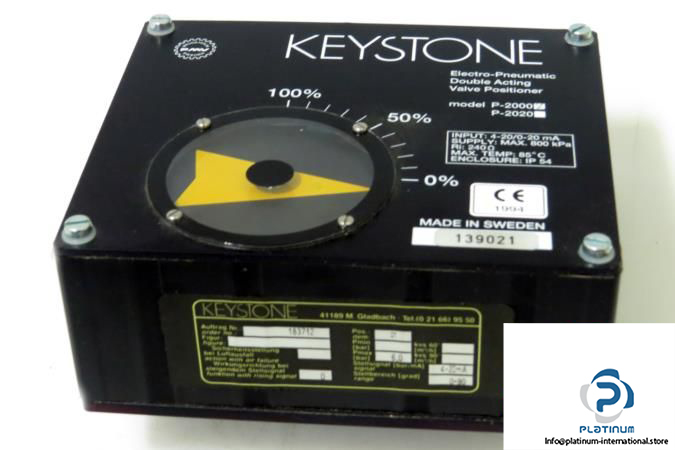

Keystone P-2000 Electropneumatic positioner

Manufacturer : Keystone
Type : Electropneumatic positioner
Model : P-2000

Input signal : 0-20/ 4-20 mA 2wire
Air supply : 2-8 bar (30-120 Psi) Oil free, dry air filtered to 25 micron
Air Connections : 1/4” G or NPT
Electrical connection : PG 13,5 or 1/2” NPT
Terminals : 4 mm² (AWG 11) screw terminals
Linearity %* : ±0,5
Repeatability %* : 0,5
Hysteresis + deadband %* : 1
Air delivery capacity : 340 nl/min (12 SCFM) at 0,6 Mpa/ 87 Psi
Air consumption : 10 nl/ min (0,35 SCFM) at 0,6 Mpa/ 87 Psi
Supply pressure effect : 0,75%/ 100 kPa (15 Psi)
Position sensitivity : 0,25% of span
EMC : 89/ 336/ EEC & 92/ 31/EEC
Internal resistance : Max 240 Ω
Temp range : -15°C to 85°C
Ingress protection : IP54/ NEMA 3R
Weight : 2,7 kg/ Ibs 5,4
