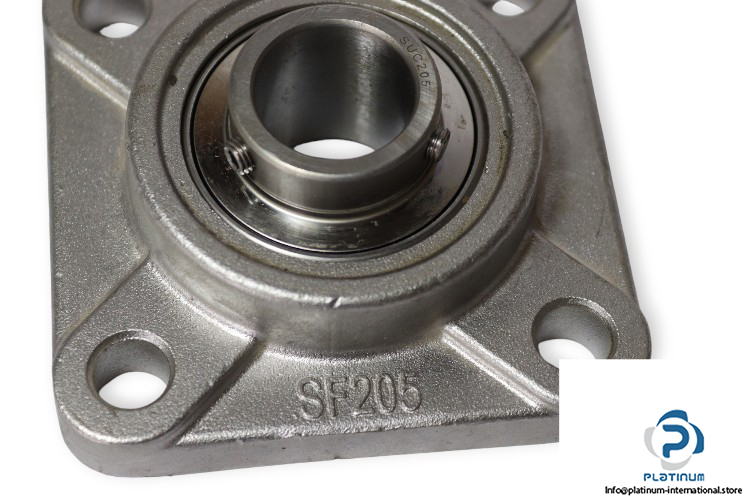

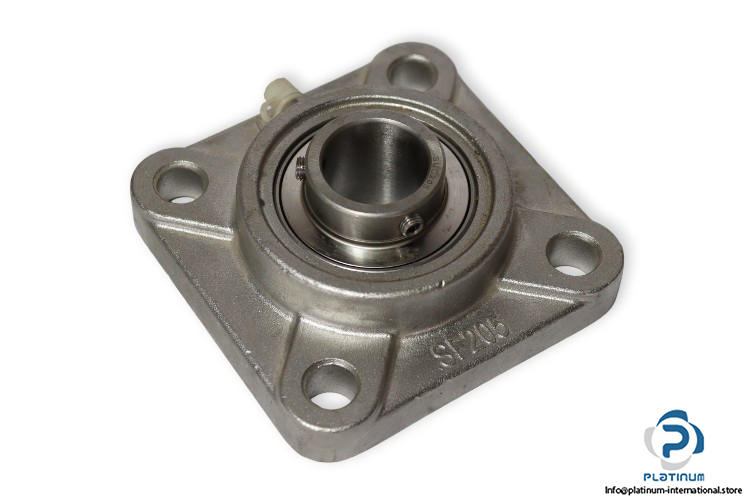

KML SUCSF205 Stainless Steel Four-Bolt Square Flange Unit

Manufacturer: KML
Type: Stainless Steel Four-Bolt Square Flange Unit
Model: SUCSF 205
Housing No.: SF205
Bearing No.: SUC205

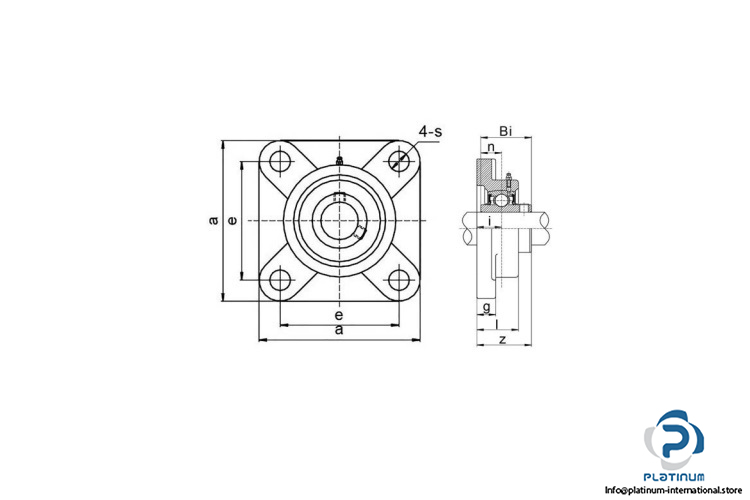

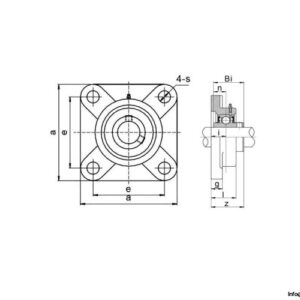

Dimensions
Shaft diameter d: 25 mm
Overall length a: 95.3 mm
i: 15.9 mm
Flange width g: 14.3 mm
Overall Width z: 35.7 mm
Width of housing I: 27 mm
Width of inner ring Bi: 34.1 mm
Distance Between Attachment Bolts e: 69.9 mm
Diameter of attachment bolt hole s: 11.5
Bolt Size: M8
Mounting: Four-Bolt Flange
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
