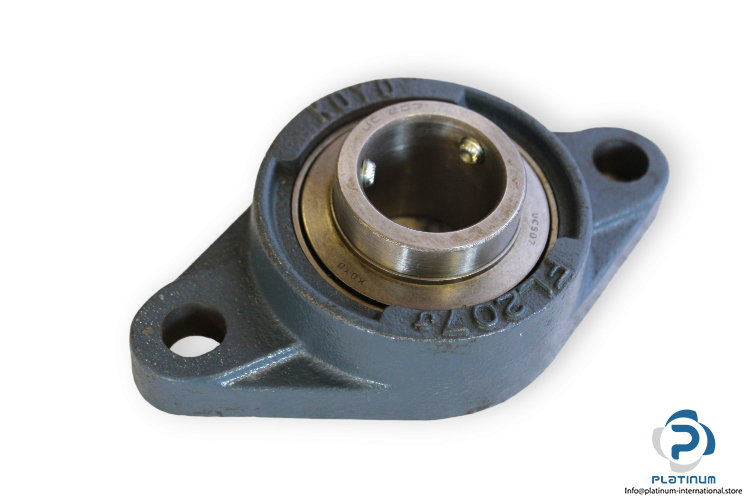

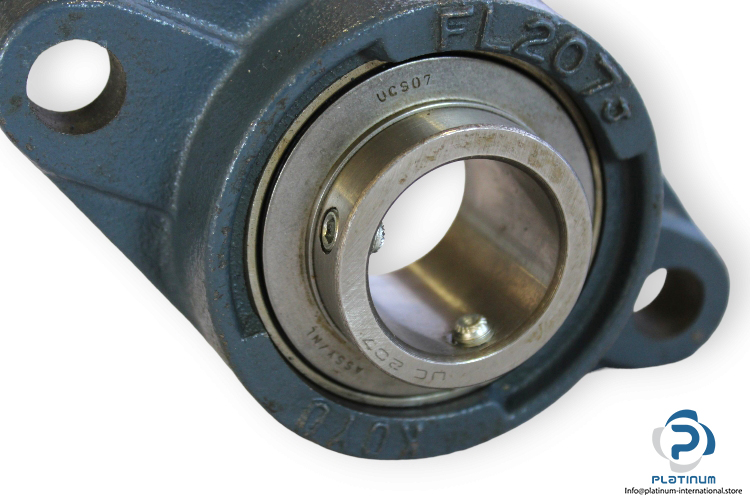

Koyo Ucfl 207 Oval Flange Ball Bearing Unit

Manufacturer: Koyo
Type: Oval flange ball bearing unit
Model: UCFL 207J

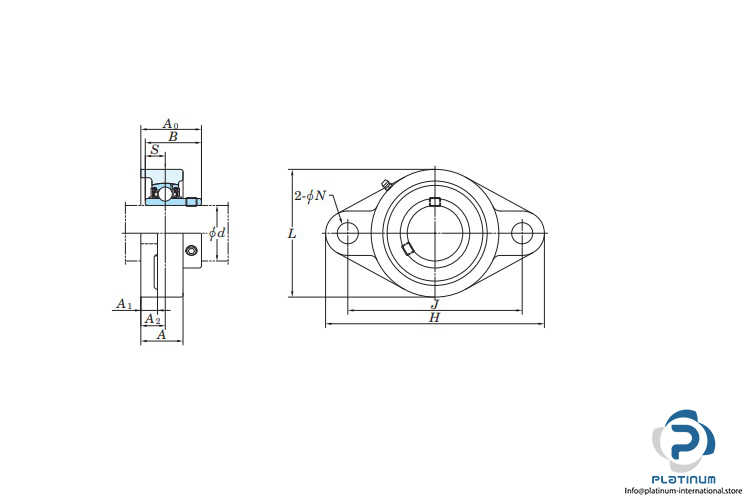

Dimensions
Bore Diameter d: 35 mm
Overall Length L: 90 mm
Overall Height H: 161 mm
Width of inner ring B: 42.9 mm
Distance Between Attachment Bolts J: 130 mm
Overall unit width A₀: 44.4 mm
Basic load rating:
Dynamic Cr: 25700 N
Static C0r: 15400 N
fatigue load limit: 700 N
Mounting: Oval Flange
Locking device: Set Screw
Bore Type: Cylindrical
