Koyo UCFL208J Oval Flange Ball Bearing Unit

Name: KOYO UCFL208J OVAL FLANGE BALL BEARING UNIT
SKU: 1005287
Availability: LimitedAvailability

koyo-UCFL-208-oval-flange-ball-bearing-unit-(new)-(carton)-1

koyo-UCFL208J-oval-flange-ball-bearing-unit-(new)-(carton)-2

New

In stock7 unitsReady to ship

Manufacturer:

Koyo

Type:

Oval flange ball bearing unit

Model:

UCFL 208J

Manufacturer

KOYO ?

SKU

1005287

Category

Plummer Block Housing Units

Condition

New

40 bearing bearings flanged Housing Koyo mm Oval Two-Bolt Unit Units Žhousing

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: Koyo
Type: Oval flange ball bearing unit
Model: UCFL 208J

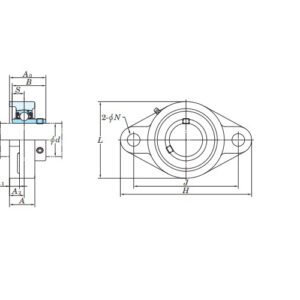

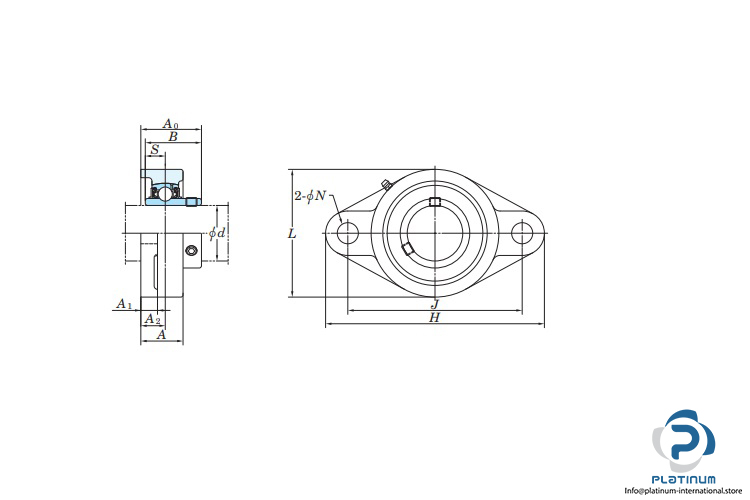

Dimensions
Bore Diameter d: 40 mm
Overall Length L: 100 mm
Overall Height H: 175 mm
Width of inner ring B: 49.2 mm
Distance Between Attachment Bolts J: 144 mm
Overall unit width A₀: 51.2 mm
Basic load rating:
Dynamic Cr: 29100 N
Static C0r: 17800 N
fatigue load limit: 809 N
Mounting: Oval Flange
Locking device: Set Screw
Bore Type: Cylindrical
