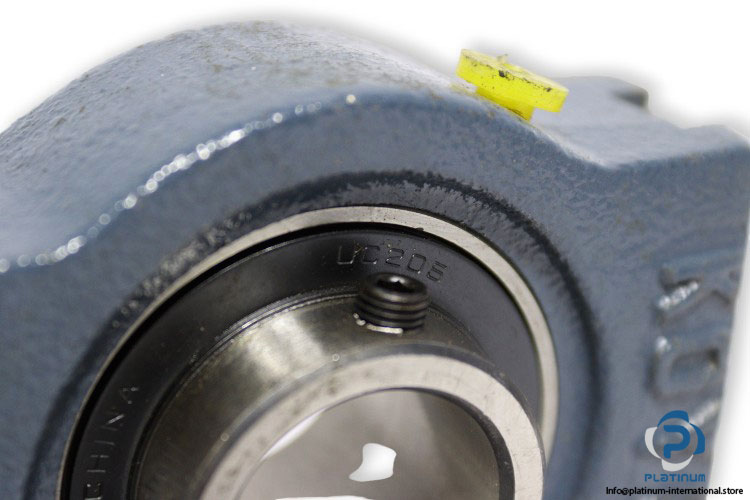

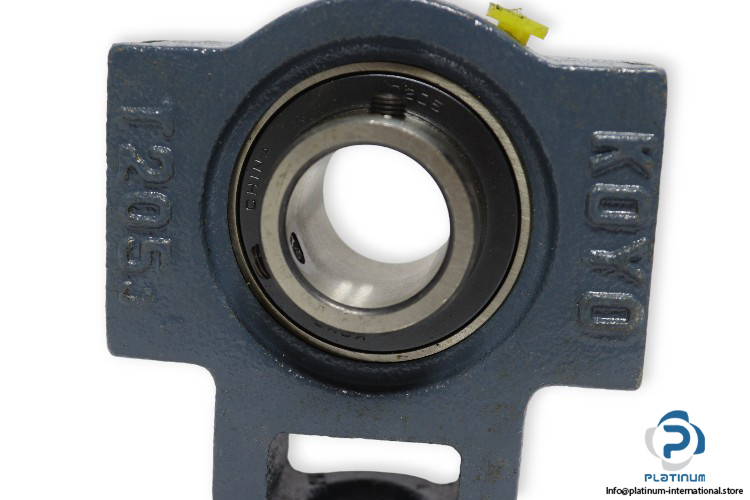

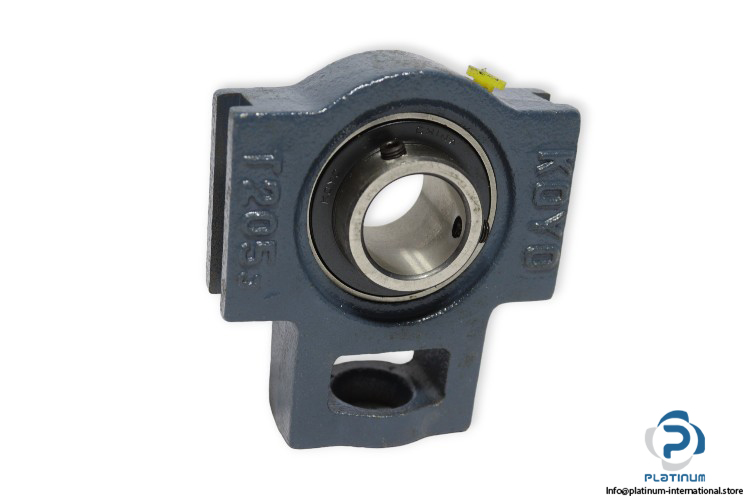

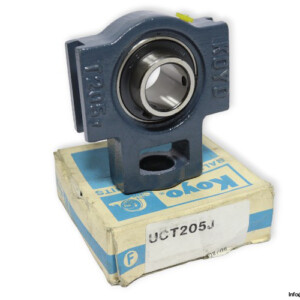

Koyo UCT205 J Take UP Ball Bearing Unit
New
In stock1 unitReady to ship
77,77$
Manufacturer:
Koyo
Type:
Take up ball bearing unit
Model:
UCT205 J
Housing No.:
T205 J
Bearing No.:
UC205
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Koyo
Type: Take up ball bearing unit
Model: UCT205 J
Housing No.: T205 J
Bearing No.: UC205

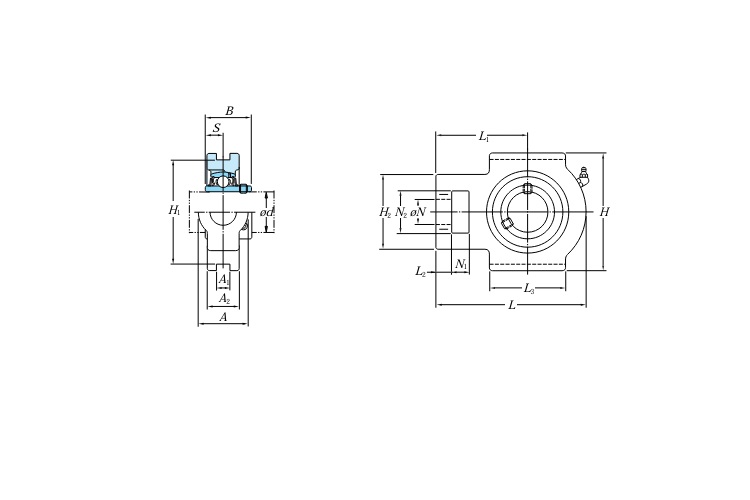

Shaft diameter d: 25 mm
Overall width A: 32 mm
Width of inner ring B: 34.1 mm
Width of piloting groove A1: 12 mm
Overall height H: 89 mm
Height of attachment end H2: 51 mm
Overall length L: 97 mm
Diameter of attachment bolt hole N: 19 mm
Length of attachment slot N1: 16 mm
Height of attachment slot N2: 32 mm
Length of piloting groove L3: 51 mm
Basic Load Rating:
Dynamic: 14 kN
Static: 7.85 kN
Housing type: Take-up
Material, housing: Cast iron
Locking Device: set screw locking
