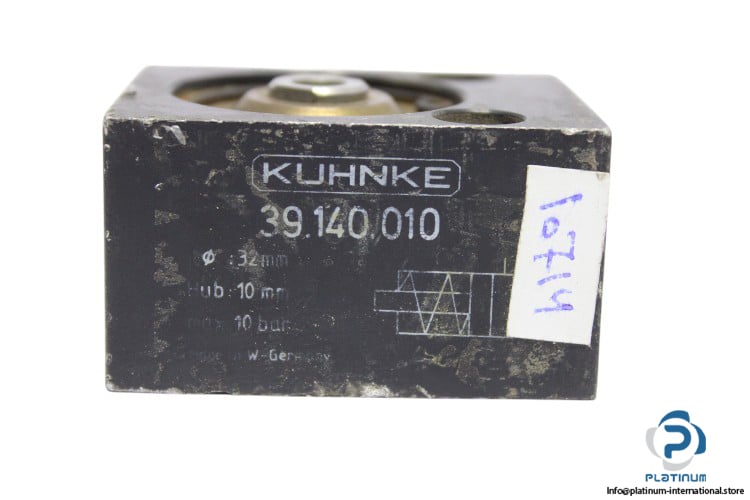

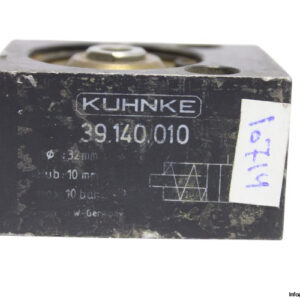

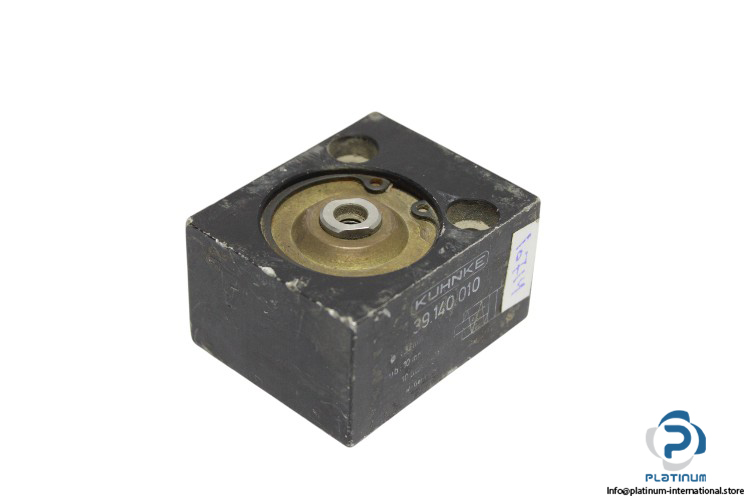

Kuhnke 39.140.010 Double Acting Cylinder

KUHNKE Double Acting Cylinder 39.140.010

The KUHNKE Double Acting Cylinder 39140010 is designed for efficient linear motion in pneumatic systems. This cylinder operates with compressed air (filtered and lubricated or non-lubricated), and features a stroke length of 10 mm and a piston diameter of 32 mm. With an operating pressure range of 0.5 to 10 bar, it is suitable for a wide range of industrial applications. Made from durable aluminium alloy, this cylinder offers long-lasting performance and operates within a temperature range of -10 to 70 ËšC. It also features a G 1/8 port size for easy integration into various pneumatic systems.

Manufacturer: KUHNKE

Type: Double Acting Cylinder

Model: 39.140.010

Technical Specifications

• Fluid: Compressed Air (5 micron Filtered, Lubricated or Non-Lubricated)
• Stroke Length: 10 mm
• Piston Diameter: 32 mm
• Operating Pressure: 0.5 / 10 bar
• Material: Aluminium Alloy
• Port Size: G 1/8
• Temperature: -10 / 70 ËšC
