Kuhnke 39.160.010 Clamping Cylinder
Used
In stock1 unitReady to ship
Clamping Cylinder
KUHNKE 39.160.010 Clamping Cylinder is a high-performance pneumatic actuator designed for secure and precise clamping. With a piston diameter of 50 mm, a stroke length of 10 mm, and an operating pressure range of 1 to 10 bar, it is built for reliable force transmission in industrial applications.1/41050ActuatorAirAluminiumClampingCompressedCylinderGhigh-pressureIndustrialmmPistonPneumaticPortStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

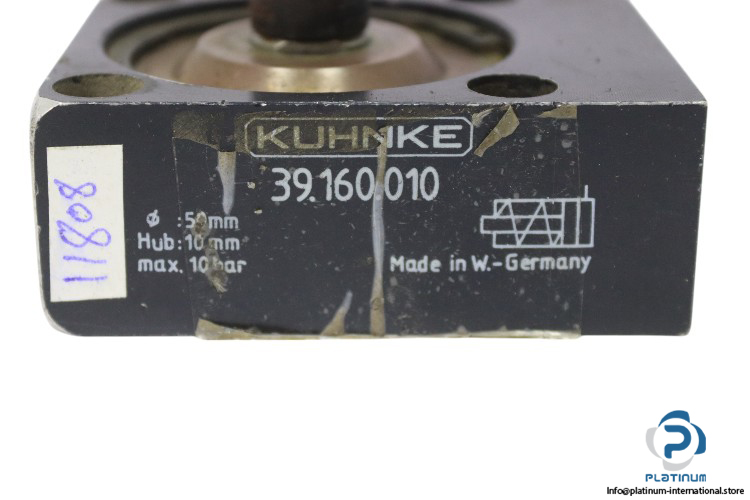

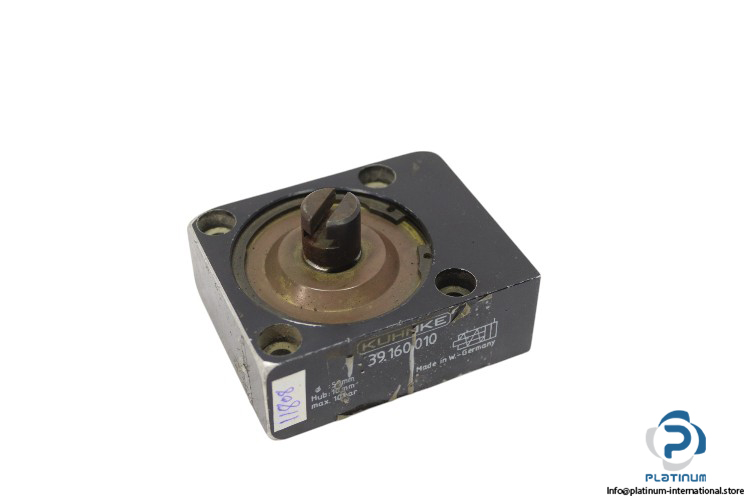

KUHNKE 39.160.010 Clamping Cylinder
The KUHNKE 39.160.010 Clamping Cylinder is a high-performance pneumatic actuator designed for secure and precise clamping operations. Constructed from durable aluminium alloy, it ensures reliable functionality in industrial applications requiring stable and efficient force transmission. Suitable for use with compressed air, this cylinder supports both lubricated and non-lubricated air supply.
- Manufacturer: KUHNKE
- Type: Clamping Cylinder
- Model: 39.160.010
Technical Specifications
- Fluid: Compressed Air (5 micron Filtered, Lubricated or Non-Lubricated)
- Stroke Length: 10 mm
- Piston Diameter: 50 mm
- Operating Pressure: 1 to 10 bar
- Material: Aluminium Alloy
- Port Size: G 1/4
- Temperature: -10 to 70 °C
