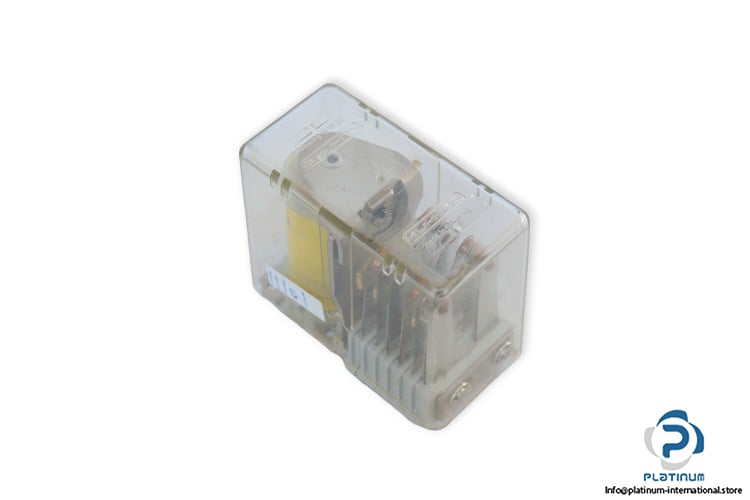

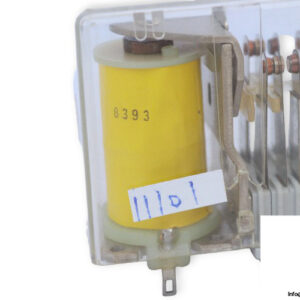

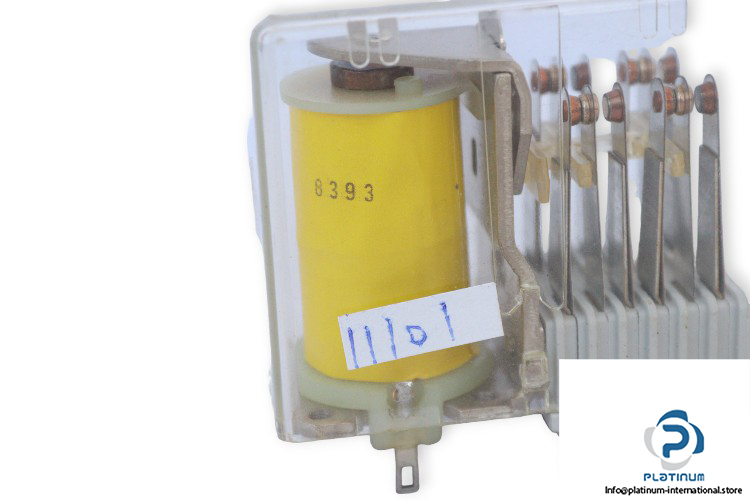

Kuhnke 8393 Industrial Switching Relay
Manufacture: Kuhnke
Type: Industrial Switching Relay

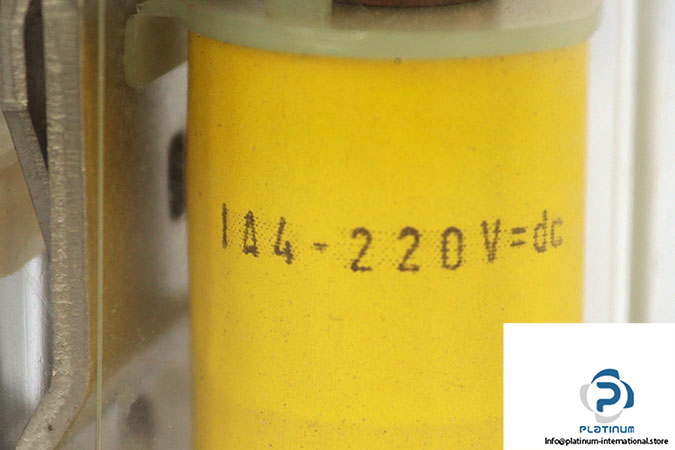

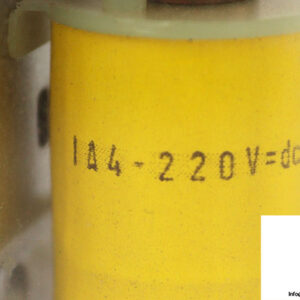

Model: IA4-220V DC
Part No.: 8393
Nominal operation coil voltage: 220 V DC
Nominal current: 7.2 mA
Contact arrangement: 4 Change over contact
Type of contact: Single contact
Nominal contact current: 6 A
Nominal contact voltage: 400 V AC
Inrush current: ≤ 20 A
Max. switching capacity (resistive): 3000 VA
Contact material: Hard silver, AgCdO
Nom. operation coil power appr.: 1.7 W
Pull-in power appr: 0.8 W
Nom. resistance: 30500 ohm
Ambient temperature: -25 … 60°C
Dimensions: 31.5 x 84 x 62.5 mm
