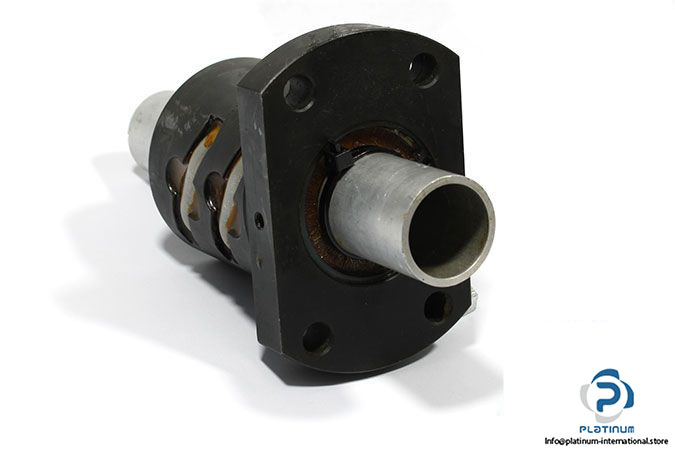

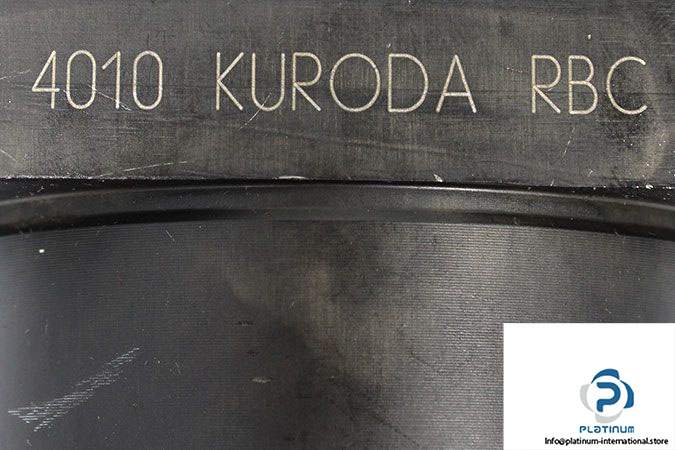

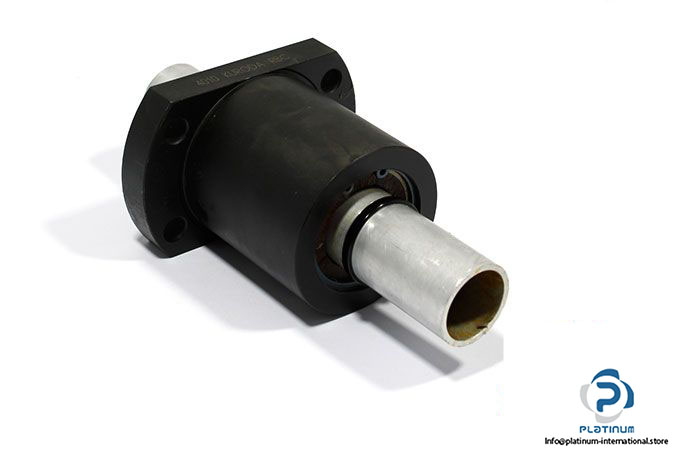

Kuroda 4010 RBC Ball Screw

Manufacturer: KURODA

Type: Ball Screw

Model: GY4010ES-HUBR

Size: 40 x 10 R x (2.5 x 2) – 6.35

Nominal Diameter d: 40 mm

Ball Diameter D_W: 6.35 mm

Number of circuits: 2.5 turns x 2 circuits

Lead P: 10 mm

Direction of Lead: Right-Hand Thread

Dynamic Load Capacity C: 37100 N

Static Load Capacity C₀: 105600 N

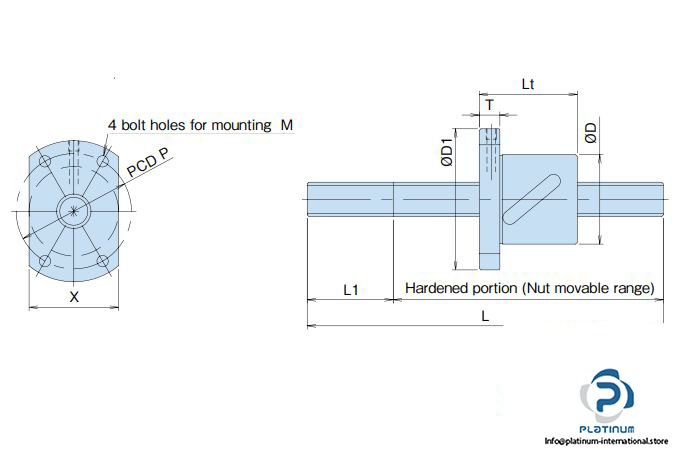

Dimensions:

D: 76 mm

D₁: 116 mm

L_t: 93 mm

Weight: 2.64 kg
