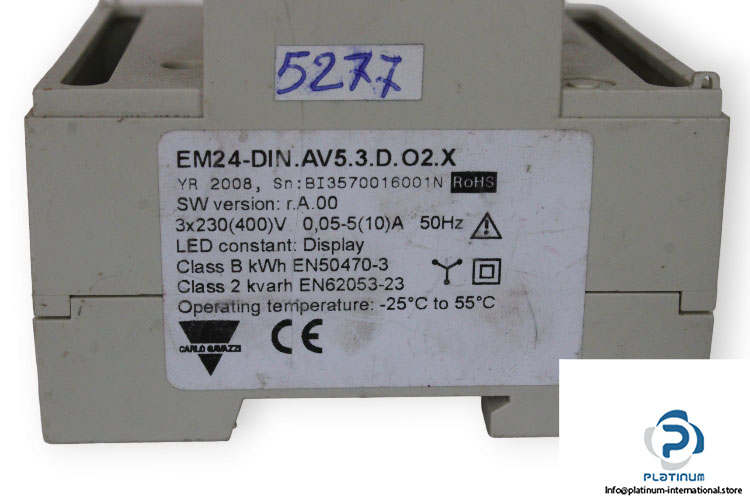

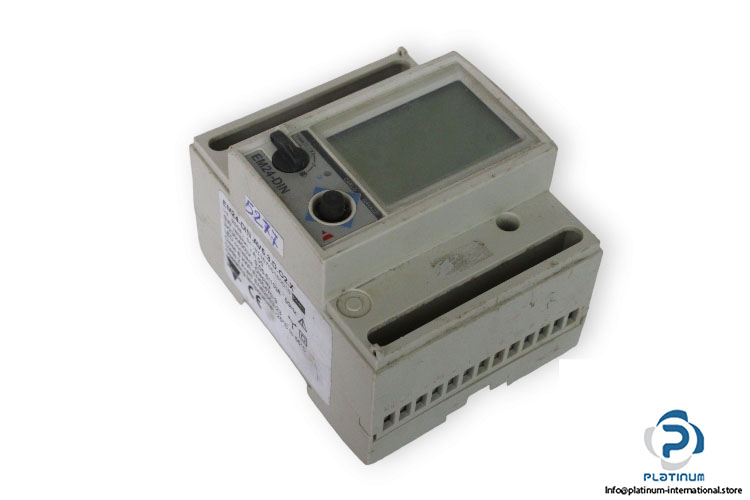

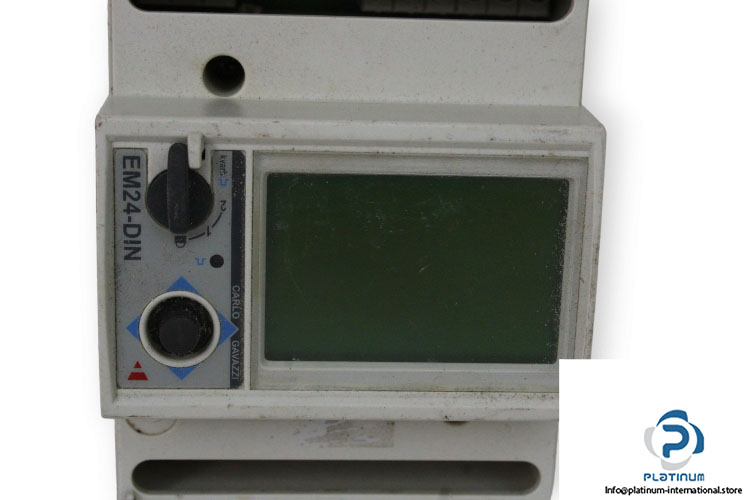

Kvarh EM24-DIN.AV5.3.D.O2.X Energy Analyzer

Manufacturer: Kvarh
Type: Energy Analyzer
Model: EM24-DIN.AV5.3.D.O2.X

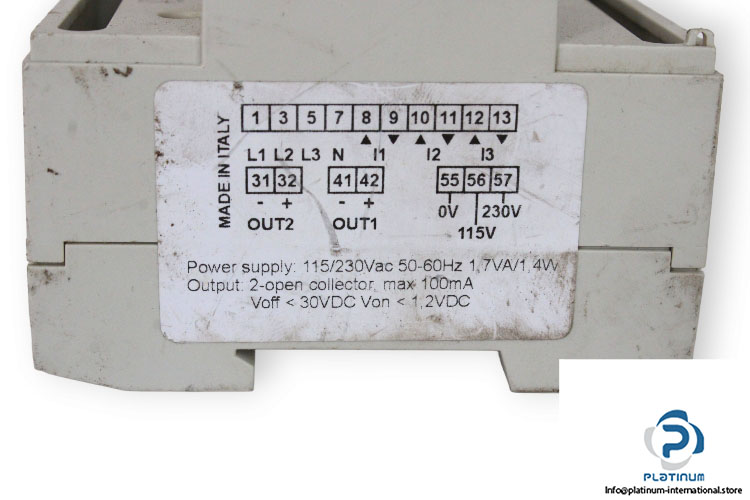

Supply Voltage: 115 … 230 V AC
Current: 0.05 … 5(10) A
Frequency: 50 … 60 Hz
Power: 1.4 W
Connections: Screw-type
Contact Configuration: 2 Normally Open
Contact Voltage: 1.2 … 30 V DC
Current: 100 mA
Material: Nylon PA66,self-extinguishing: UL 94 V-0

Mounting: DIN-rail
Operating Temperature: -25 … 55 °C
Degree of protection: Front IP50, Screw Terminals IP20
Dimensions: 71 X 90 X 64.5 mm
