Motors & Drives Servo Motors

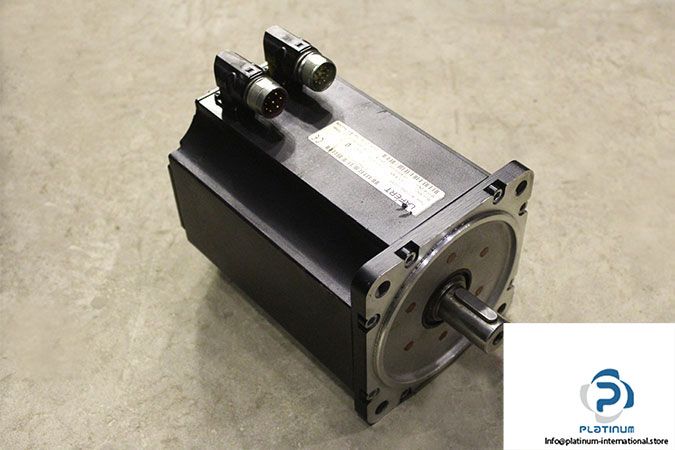

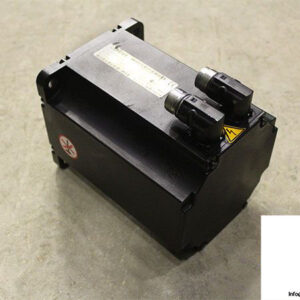

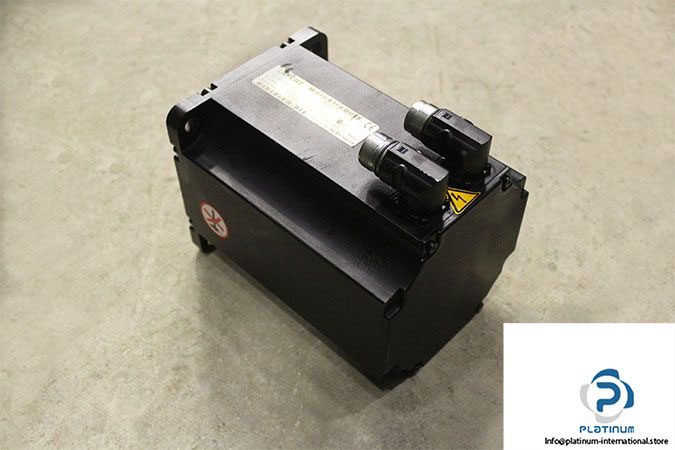

Lafert B7109Q-03355 Brushless Servo Motor

lafert-B7109Q-03355-brushless-servo-motor
lafert-b7109q-03355-brushless-servo-motor-1
lafert-b7109q-03355-brushless-servo-motor-2
Used
In stock1 unitReady to ship

999,99$

Brushless Servo Motor

The Lafert B7109Q-03355 is a compact, high-efficiency brushless servo motor rated at 232 V and 4000 rpm. It provides 6.2 Nm rated torque, IP67 protection, and integrated brake for precise and reliable automation control.

Manufacturer
LAFERT
SKU
987782
Category
Servo Motors
Condition
Used
244000AutomationB7109Q-03355BrakeBrushlessControlHighIndustrialIP67LafertMotionmotorPrecisionrpmServoTorqueV
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Lafert B7109Q-03355 Brushless Servo Motor

The Lafert B7109Q-03355 Brushless Servo Motor is a high-performance motion control solution designed for precise positioning, fast response, and efficient operation. Engineered for industrial automation systems, it offers outstanding torque density, high rotational speed, and IP67 protection for reliable performance in demanding environments.

Manufacturer: Lafert

Type: Brushless Servo Motor

Model: B7109Q-03355

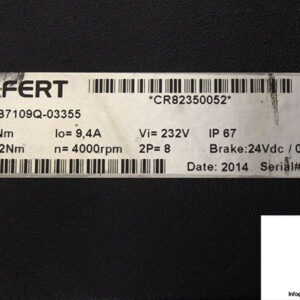

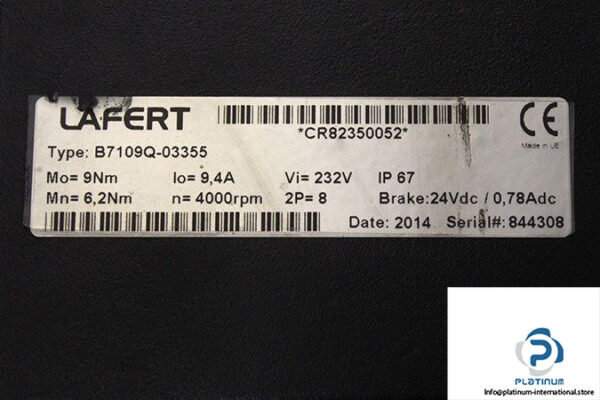

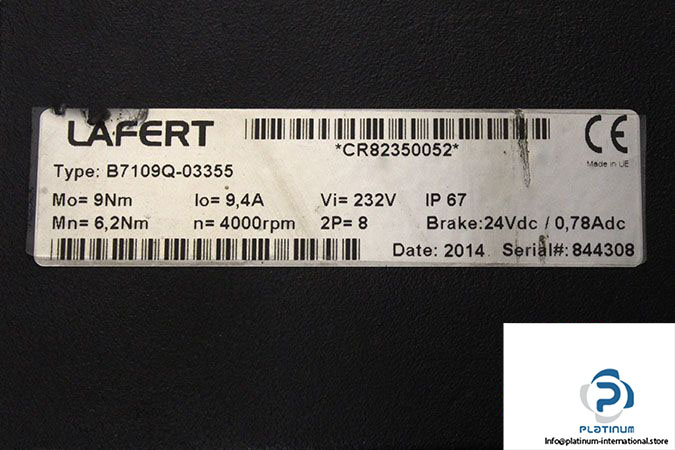

Nominal Voltage232 V
Stall Current9.4 A
Stall Torque9 Nm
Rated Torque6.2 Nm
Speed4000 rpm
Brake Voltage24 VDC
Brake Current0.78 A
Protection ClassIP67
