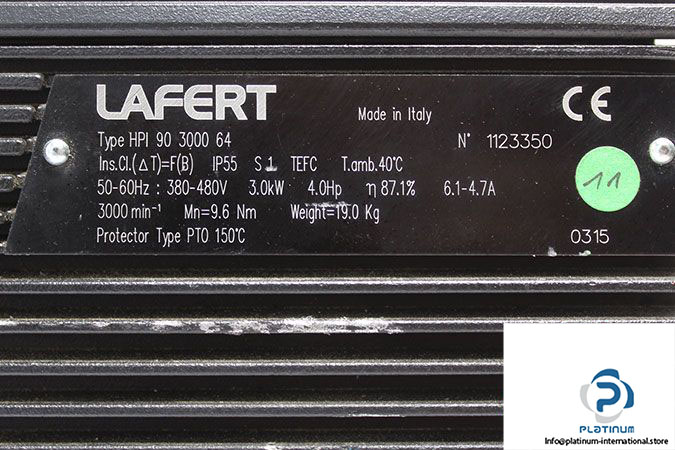

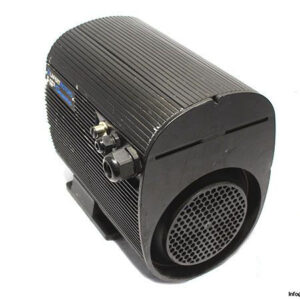

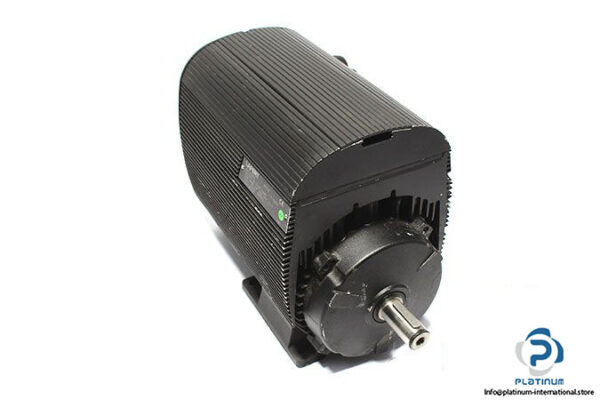

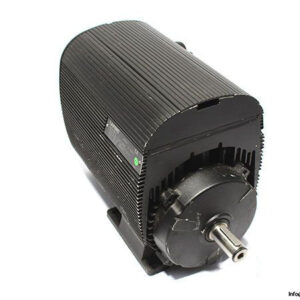

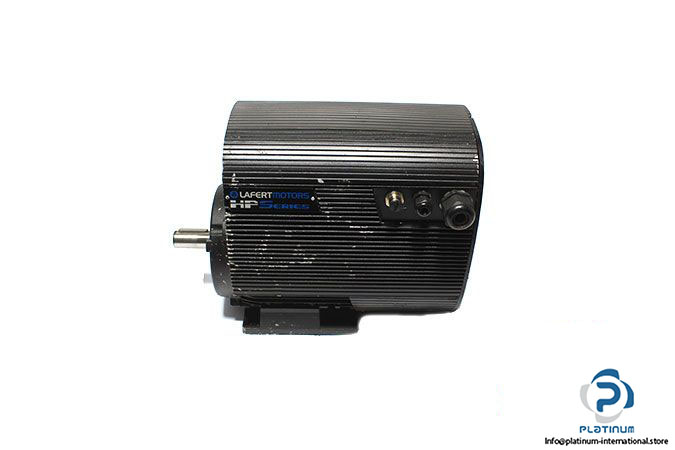

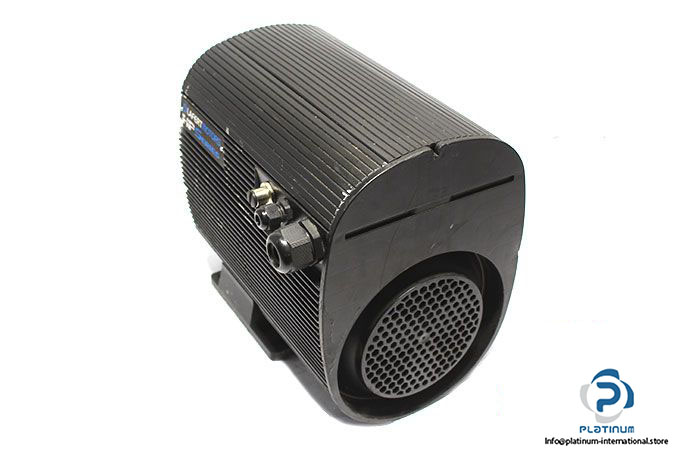

Lafert HPI 90 3000 64 High Performance Motor

Manufacturer: Lafert

Type: High Performance Motors

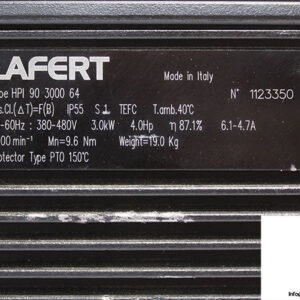

Model: HPI90300064

Rated Power [kW]: 3

Horsepower [Hp]: 4

Rated Voltage [V]: 380-480

Rated Torque [Nm]: 9.6

Peak Torque [Nm]: 14.4

Rated Speed [r/min]: 3000

Motor Rated Current [A]: 6.4

Motor Peak Current [A]: 9.6

Torque Constant [Nm/A]: 1.5

Frequency [Hz]: 50/60

Rated Input Current at 380Vac [A]: 6.1

Rated Input Current at 480Vac [A]: 4.7

Protection Class [IP]: 55

Ambient Temperature [°C]: 40

Efficiency [%]: 87.1

Duty: S1 Cont.

Insulation Class: F

Weight [kg]: 19.0
